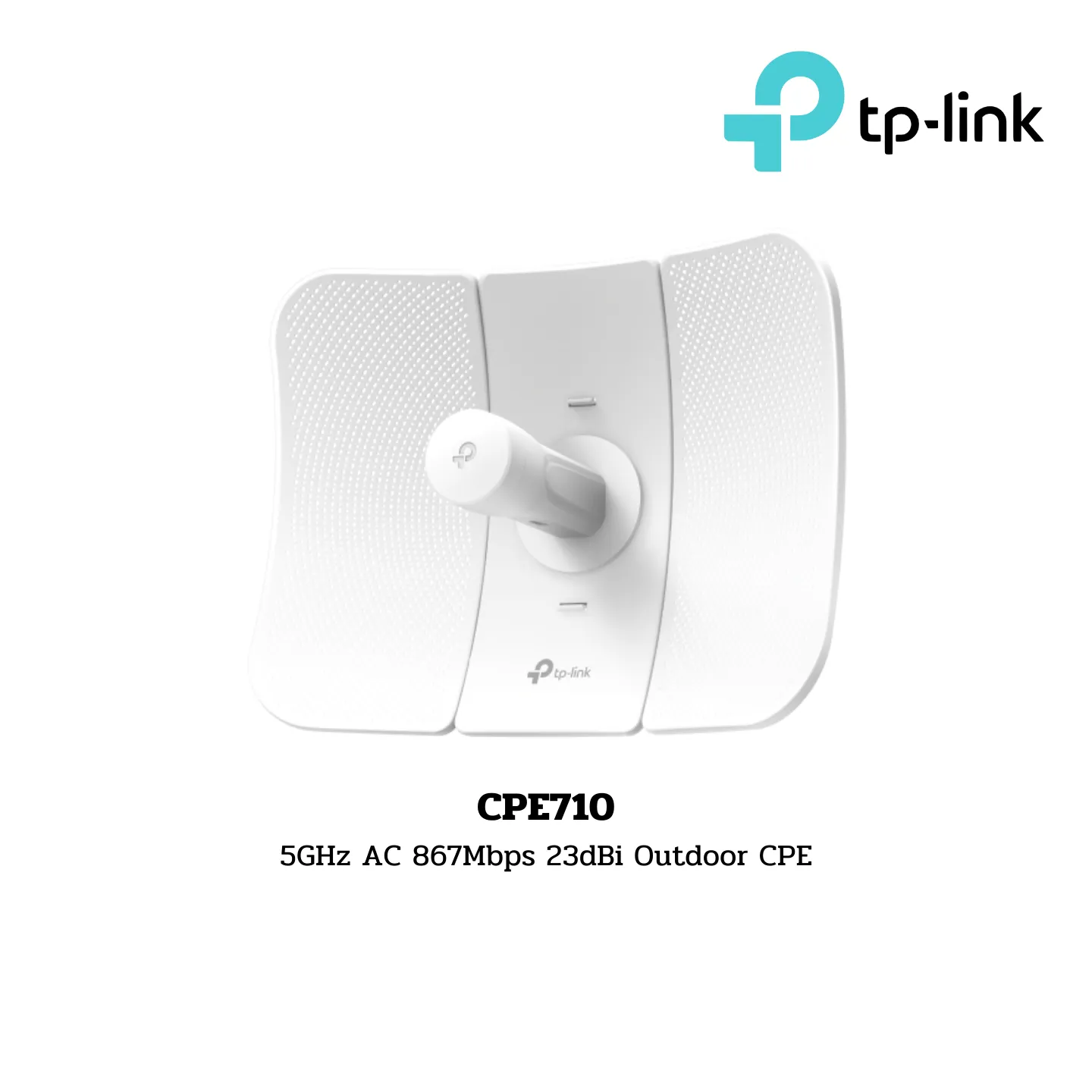

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE Wireless Broadband

CPE710
5GHz AC 867Mbps 23dBi Outdoor CPE

Brand:

• TP-Link

Port:

• 1 × Gigabit Shielded Ethernet Port

Speed:

• 867 Mbps at 5 GHz

Feature:

• 23 dBi
• 30+ km
• IP65 Weatherproof
• Passive PoE
• Centralized Management
• Spectrum Analyzer
• AP/Client/AP Router/AP Client Router

Hardware Features:

Processor: Qualcomm 750MHz CPU, MIPS 74Kc

Memory: 128 MB DDR2 RAM, 16 MB Flash

Interface:

• 1× 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
• 1× Reset Button

Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)

Voltage range: 16-27V DC

Dimensions (W x D x H): 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)

Antenna Gain: 23 dBi

Antenna Beamwidth: 9° (Azimuth) / 7° (Elevation)

Protection: 15 KV ESD Protection, 6 KV Lightning Protection

Enclosure: Outdoor PC stabilized plastic, Weatherproof: IP65 water and dust proof design

Wireless Features:

Wireless Standards: IEEE 802.11a/n/ac

Wireless Speeds:

• Up to 867 Mbps (80 MHz, Dynamic)
• Up to 400 Mbps (40 MHz, Dynamic)
• Up to 173.4 Mbps (20 MHz, Dynamic)

Frequency: 5.15–5.85 GHz

Transmit Power: Max. 27 dBm (Adjustable power by 1dBm)

Software Features:

Network Configuration:

• WAN: Static / Dynamic / PPPoE
• LAN: Static / Dynamic / DHCP
• Forwarding: ALG / UPnP / Virtual Server / Port Trigger
• Security: SPI Firewall / Ping Forbidden / DoS Protection
• Access Control
• Static Routing
• Bandwidth Control
• IP & MAC Binding

Wireless Configurations:

• Selectable Channel Width: 20/40/80MHz
• Auto Channel Selection
• Transmit Power Control
• Dynamic Frequency Selection (DFS)
• WDS Enable/Disable
• Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
• SSID Broadcast Enable/Disable
• Multi-SSID with VLAN Tagging (AP Mode only)
• Distance/ACK Timeout Setting
• Wireless MAC Address Filter
• Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
• Long Range PtP

Management:

• Discovery and Remote Management via Pharos Control application
• HTTP/HTTPS Web-based management
• System Log
• SNMP Agent (v2c)
• Ping Watch Dog
• Dynamic DDNS
• SSH Server

System Tools:

• Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory
• Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
• Spectrum Analyzer
• Speed Test
• Ping
• Traceroute
• Antenna Alignment
• System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications

PoE Adapter Features:

Dimensions (W x D x H): 85.8×43.9×29.7 mm

Interfaces:

• 1 AC Jack with Earth Ground
• 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
• 1× 10/100/1000 Mbps Shielded Ethernet Port (Data)

Button: Remote Reset Button

Power Status LEDs: Green

Input: 100-240VAC, 50/60Hz

Output: 24VDC, 0.5A Max

• +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency: >84.29%

Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

Others:

Certification: CE, FCC, RoHS, IP65, IC

Package Contents:

• Outdoor Wireless CPE
• 24V 0.5A Passive PoE Adapter
• Pole Mounting Kits
• AC Power Cord
• Installation Guide

System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Note: We recommend you to use one of the following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment:

• Operating Temperature: -40℃~70℃ (-40℉~158℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 95% non-condensing
