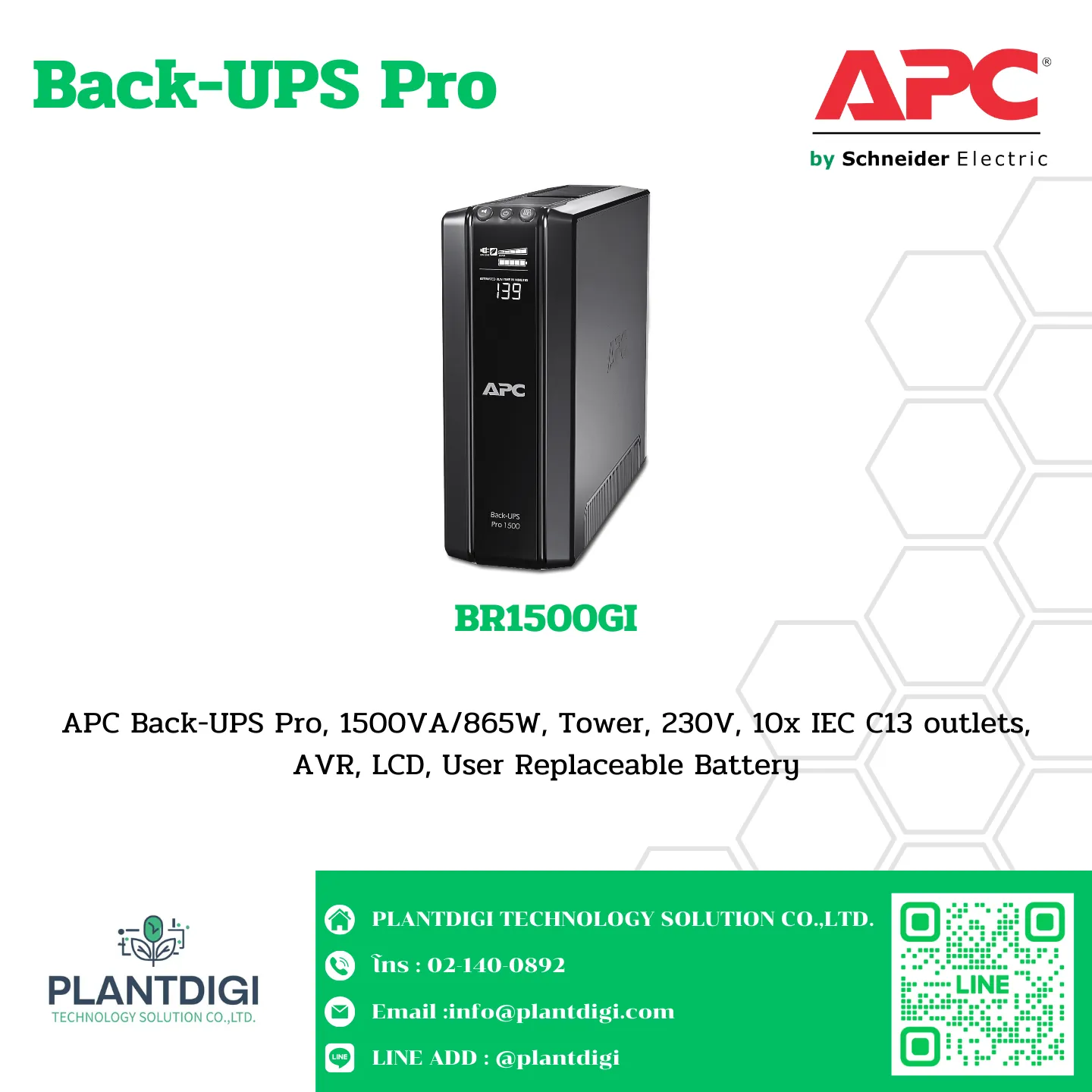

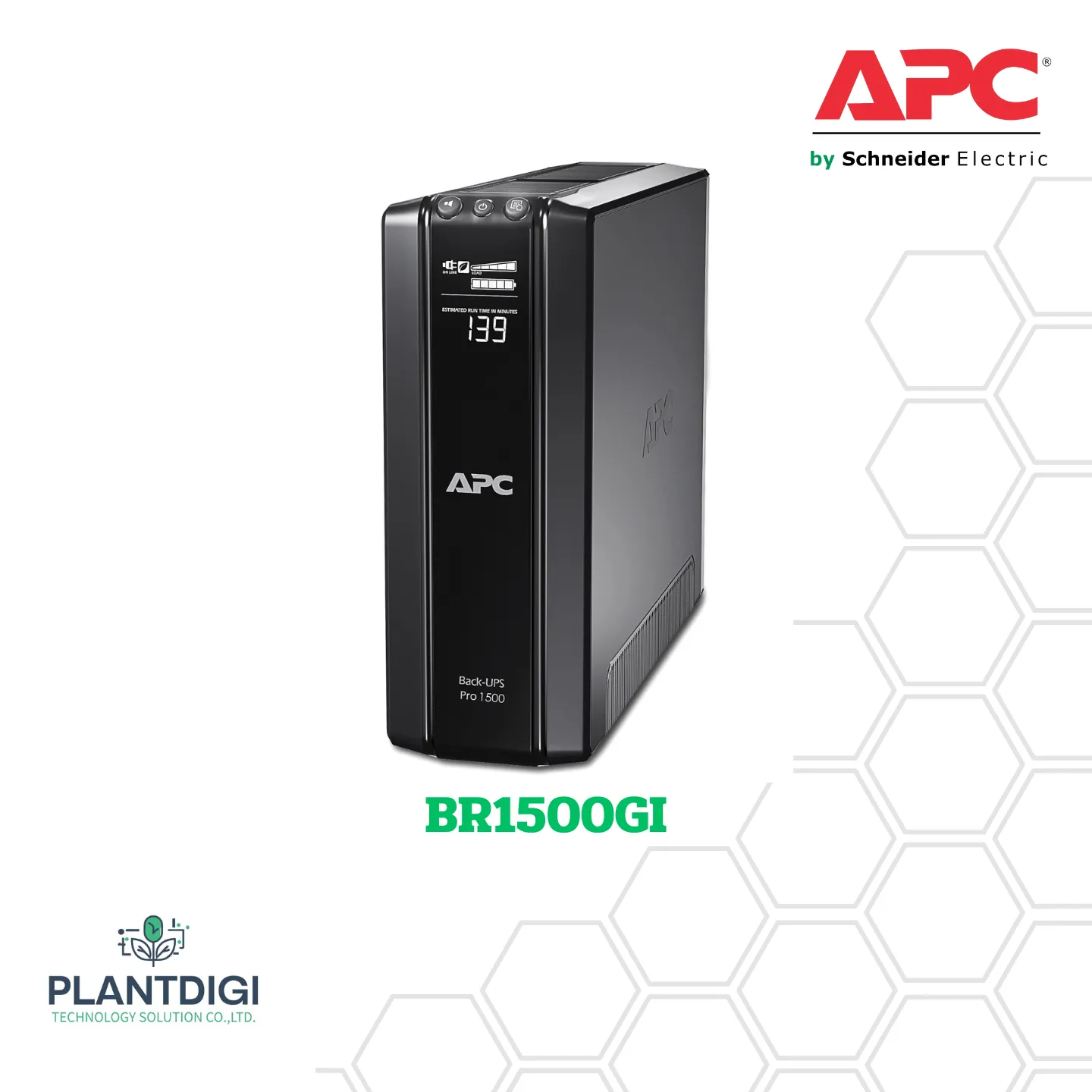

เครื่องสำรองไฟ APC Back-UPS Pro รุ่น BR1500GI

APC BR1500GI

APC Back-UPS Pro, 1500VA/865W, Tower, 230V, 10x IEC C13 outlets, AVR, LCD, User Replaceable Battery

Specifications

————-
Main
————–
รันไทม์สําหรับโหลด 865 W
ต่ำสุด-สูงสุด: 87-865 W 3min 39s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 230 V
Main Output Voltage: 230 V
Rated power in W: 865 W
Rated power in VA: 1500 VA
Product or component type: Uninterruptible power supply (UPS)
Input Connection Type: IEC 60320 C13

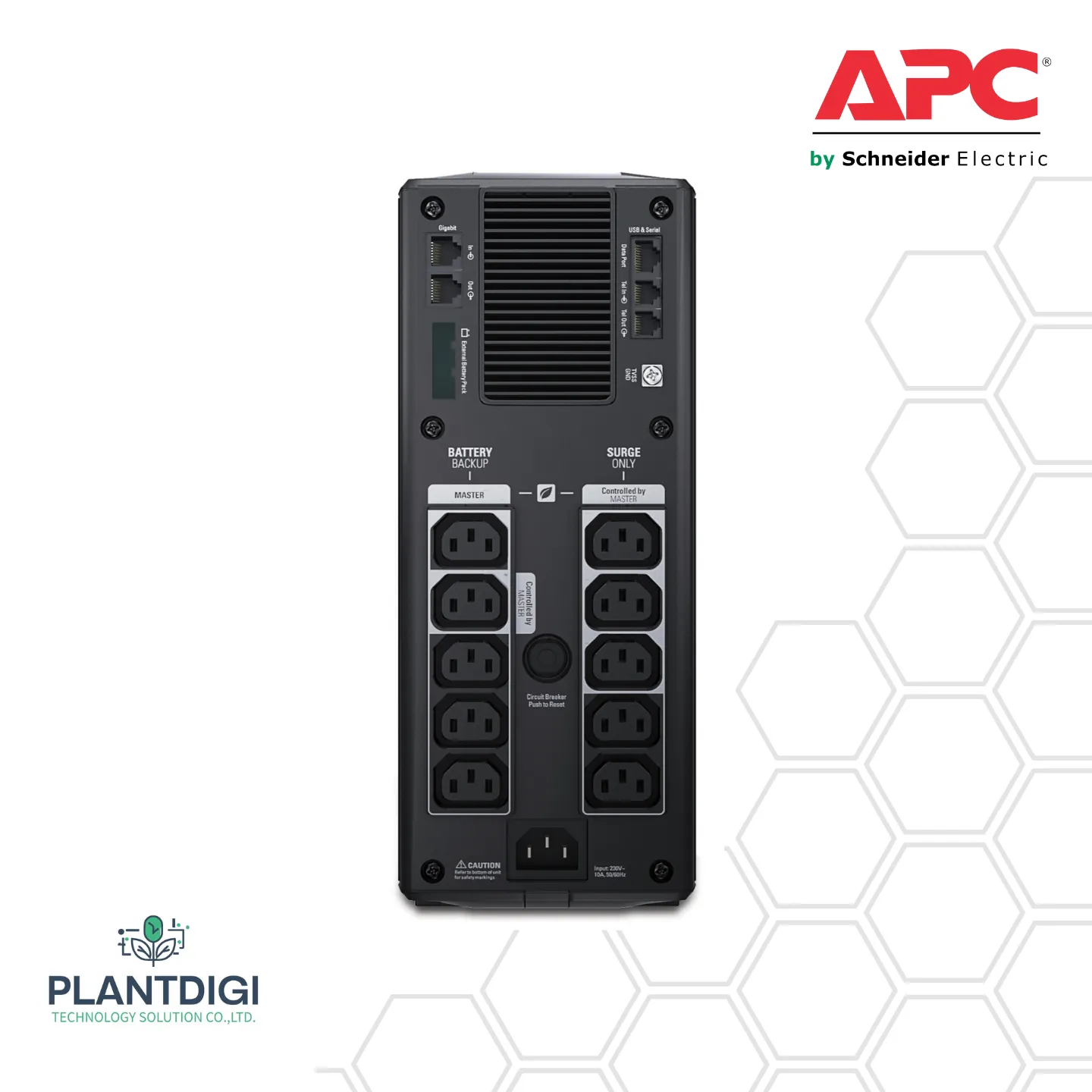

output connection type: 5 IEC 60320 C13, 5 IEC 60320 C13 surge, 2 IEC Jumpers
Number of cables: 1
Battery type: Lead-acid battery

—————-
Batteries & Runtime
——————-
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 8 h
Number of battery replacement quantity: 1
Battery voltage: 24 V
Battery capacity: 9.0 Ah
Battery charger power: 23 W rated
Battery life: 3…5 year(s)
Replacement battery: APCRBC124
Battery graph comments: This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
Extended runtime: 0

————
General
————
Provided equipment: 1, detachable IEC power cord, telephone cable, user manual, USB cable
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No

———
Physical
———
Colour: Black
Height: 30.1 cm
Width: 11.2 cm
Depth: 38 cm
Net weight: 12.7 kg
Mounting preference: No preference
mounting mode: Not rack-mountable
Two post mountable: 0
USB compatible: No

—–
Input
—–
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing
Input voltage limits: 156…300 V adjustable, 176…294 V
Switching current capacity: 10 A

——-
Output
——-
Maximum configurable power in W: 865 W
Output frequency: 50/60 Hz +/- 1 Hz sync to mains
Crest factor: 3 : 1
UPS type: Line interactive
Wave type: Stepped approximation to a sinewave
Maximum configurable power in VA: 1500 VA
Transfer time: 10 ms typical : 12 ms maximum

————
Conformance
————
Product certifications: A-Tick, C-Tick, CE, GOST, Telepermit, TÜV
marking: GS Mark
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Equipment protection policy: Lifetime : 200000 AUD, Lifetime : 150000 euros, Lifetime : 75000 GBP

————-
Environmental
————-
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 %
Operating altitude: 0…30000 ft
Ambient air temperature for storage: -15…45 °C
Storage Relative Humidity: 0…95 %
Storage altitude: 0.0000000000…15240.0000000000 m
acoustic level: 45 dBA

—————————-
Communications & Management
—————————-
Control panel: Multifunction LCD status and control console
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 441 J
Noise suppression: Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 40.000 cm
Package 1 Width: 25.000 cm
Package 1 Length: 49.000 cm
Package 1 Weight: 14.000 kg
Unit Type of Package 2: PAM
Number of Units in Package 2: 24
Package 2 Height: 132.000 cm
Package 2 Width: 100.000 cm
Package 2 Length: 120.000 cm
Package 2 Weight: 351.000 kg
SCC14: 10731304268748

——————–
Contractual warranty
——————–
Warranty: 2 years repair or replace, 3 years repair or replace for European Union countries
