เครื่องสำรองไฟ APC SRT รุ่น SRT6KXLI

APC SRT6KXLI

APC Smart-UPS On-Line, 6kVA/6kW, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

———
Overview
———–
Presentation: High density, double-conversion on-line power protection with scalable runtime.

Specifications

————-
Main
————–
รันไทม์สําหรับโหลด 6000 W
ต่ำสุด-สูงสุด: 600-6000 W 2min 28s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 230 V
Product or component type: Uninterruptible power supply (UPS)
Other Input Voltage: 220 V , 240 V
Main Output Voltage: 230 V
Other Output Voltage: 220 V , 240 V
Rated power in W: 6000 W
Rated power in VA: 6000 VA

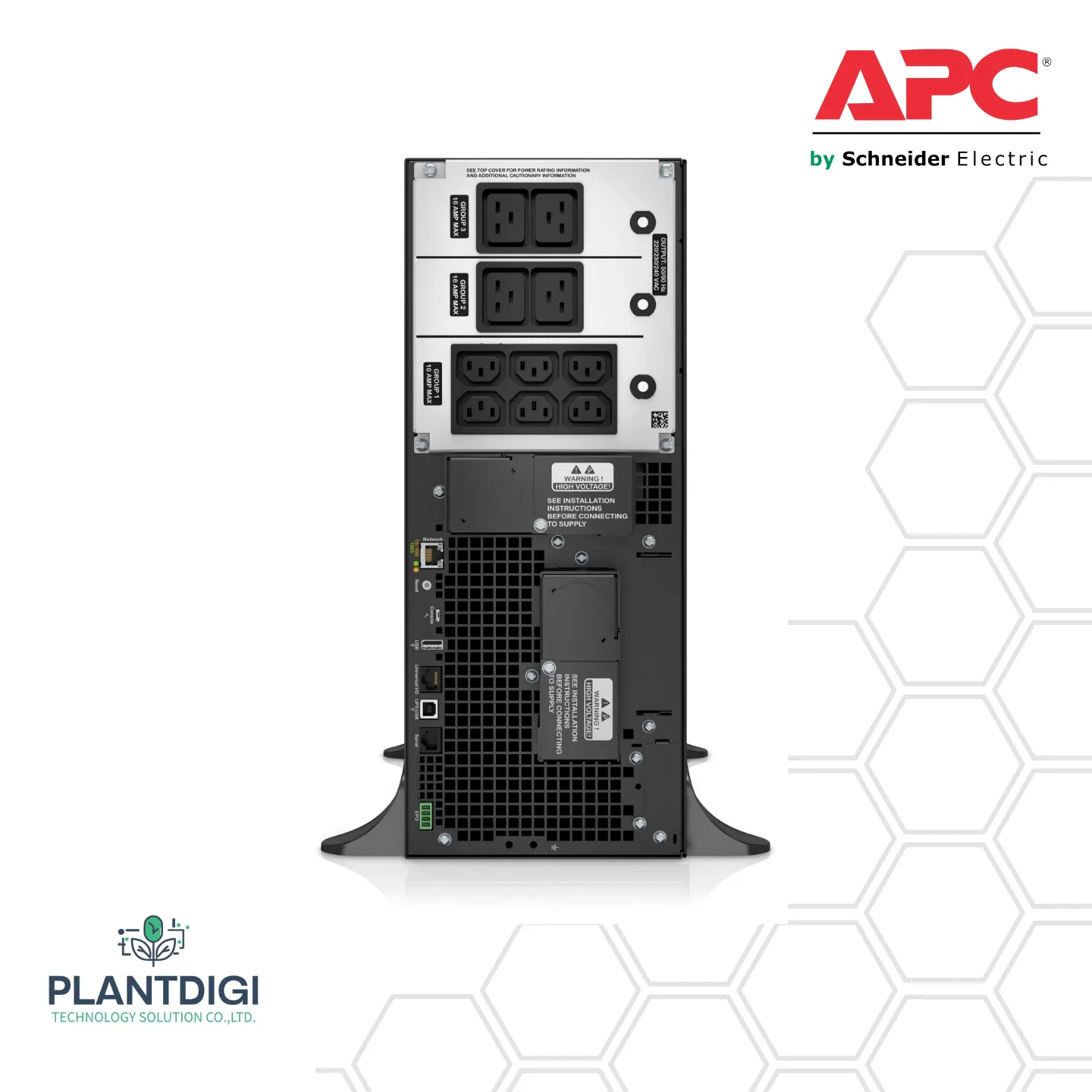

output connection type: 6 IEC 60320 C13, 2 IEC Jumpers, 4 IEC 60320 C19
Output connector type: Hard wire 3-wire (H N + E) 1
Provided equipment: CD with software, Documentation CD, Installation guide, Removable support feet, Temperature probe, USB cable, Warranty card, Web/SNMP management card
Range of product: Smart-UPS On-Line

—————-
Batteries & Runtime
——————-
Battery type: Lead-acid battery
Number of battery filled slots: 0
Battery recharge time: 1.5 h
Number of battery replacement quantity: 1
Battery voltage: 192 V
Battery charger power: 597 W rated
Battery life: 3…5 year(s)
Replacement battery: APCRBC140
Extended runtime: 1

————
General
————
UPS type: Double conversion online
product web sub-family: High density
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No

———
Physical
———
Colour: Black (RAL 7010)
Height: 43.2 cm
Width: 17.4 cm
Depth: 71.94 cm
Net weight: 60 kg
Mounting preference: No preference
mounting mode: Rack-mounted with kit
Two post mountable: 0
USB compatible: Yes
mounting position: Vertical

—–
Input
—–
Network frequency: 40…70 Hz auto-sensing
Number of input connectors: 1 hard wire 3-wire (1P + N + E)
Input voltage limits: 100…275 V adjustable (half load)

——-
Output
——-
Maximum configurable power in VA: 6000 VA
Maximum configurable power in W: 6000 W
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Wave type: Sine wave
Harmonic distortion: Less than 2 %
Crest factor: 3 : 1
Bypass type: Internal bypass (automatic and manual)

————
Conformance
————
Product certifications: CE, EAC, IRAM, RCM, VDE
marking: CE Mark
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

————-
Environmental
————-
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -15…45 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0.0000000000…15240.0000000000 m
acoustic level: 55 dBA
Heat dissipation: 1300 Btu/h
IP degree of protection: IP20

—————————-
Communications & Management
—————————-
Free slots: 1
Preinstalled device: Network management card 3 with environmental monitoring
Alarm: Audible and visible alarms : prioritized by severity
Emergency power off: Yes

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 480 J

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 37.000 cm
Package 1 Width: 96.000 cm
Package 1 Length: 61.000 cm
Package 1 Weight: 67.000 kg

——————–
Contractual warranty
——————–
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery
