เครื่องสำรองไฟ CyberPower OL1500RTXL2U รุ่น OL Serires RT 1500VA/1350W 120V
฿28,090.00
OL1500RTXL2U OL Serires RT 1500VA/1350W 120V
2-yrs onsite with battery
***กรณีสั่งซื้อกับทางเราสามารถแจ้งเคลมผ่านกับเราได้เลย
ติดต่อเราเพื่อสั่งซื้อ สอบถาม หรือขอใบเสนอราคา
โทร : 02-140-0892
มือถือ : 089-314-3423
Line ID : @plantdigi
Email : info@plantdigi.com
สั่งจองสินค้าได้

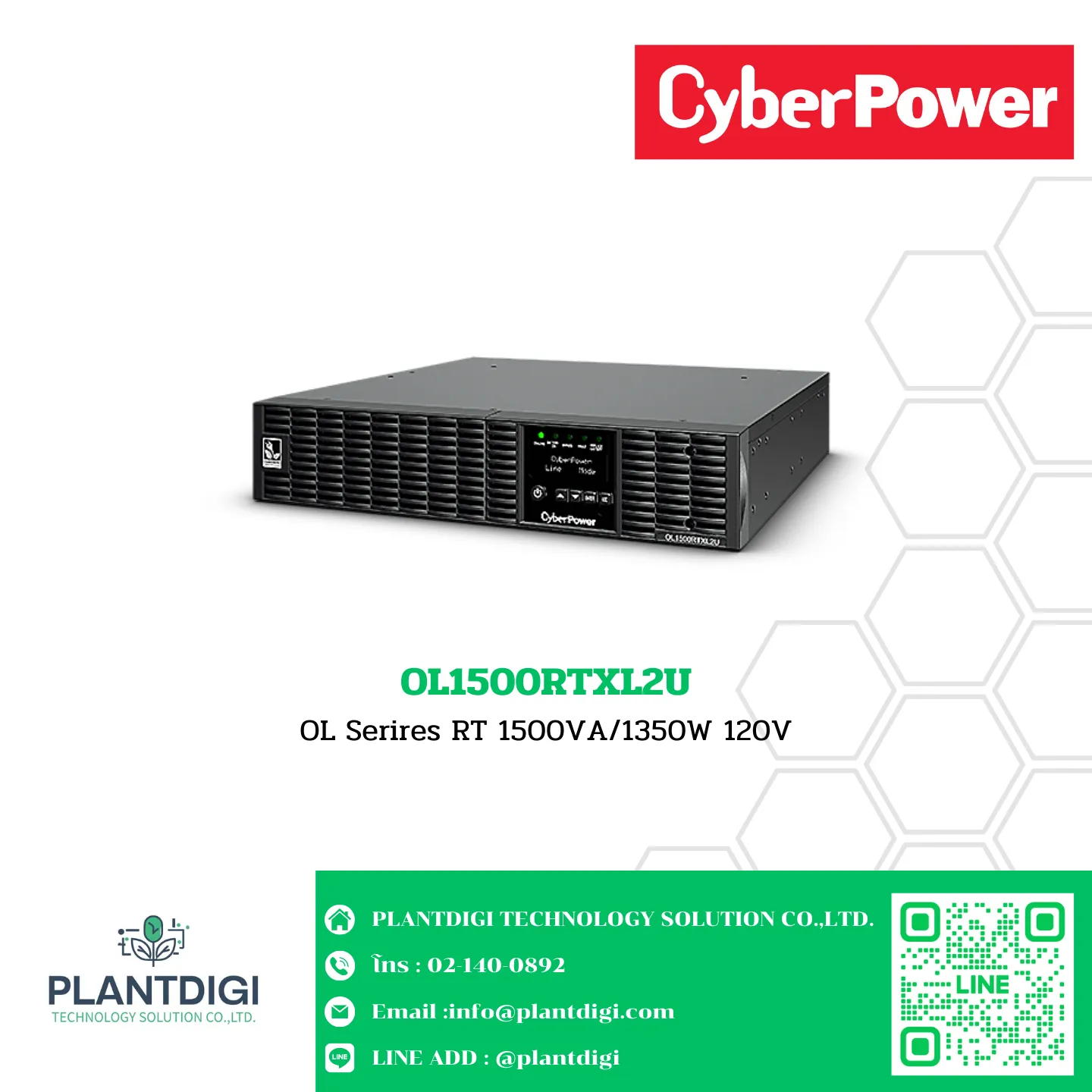

CyberPower OL1500RTXL2U
OL Serires RT 1500VA/1350W 120V
CyberPower UPS Smart App Online UPS EMPRESARIAL EN LÍNEA PARA SALVAGUARDAR EL CENTRO DE DATOS UPS doble conversión en línea de alto rendimiento diseñado con tiempo de transferencia cero para equipos de misión crítica
——–
General
——–
Energy Saving: ECO Mode Efficiency >95%
Energy Star Certified: Yes
UPS Topology: Online Double Conversion
——
Input
——
Circuit Breaker: 15 A
Cold Start: Yes
Cord Length: 10 ft (3.0 m)
Input Frequency Range: 40 Hz – 70 Hz
Input Plug Type: NEMA 5-15P
Input Power Factor: 0.99
Input Voltage Range: 60 VAC – 69 VAC for 0–60% Load, 70 VAC – 79 VAC for 0–70% Load, 80 VAC – 89 VAC for 0–80% Load, 90 VAC – 95 VAC for 0–90% Load, 96 VAC – 150 VAC for 0–100% Load
Nominal Input Voltage: 100 – 125 VAC
——
Output
——
Bypass: Internal Bypass (Automatic and Manual)
Crest Factor: 3:1
ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
Harmonic Distortion: < 3% at Linear Load, < 5% at Non-Linear Load
On AC WaveForm: Sine Wave
On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
On Battery Voltage: 100/110/115/120/125 VAC ± 2% (configurable)
On Battery Waveform: Sine Wave
Outlet Type: 8 – NEMA 5-15R
Outlets – Total: 8
Output Power Factor: 0.9
Overload Protection: Line Mode: 105% ~ 125% Load – 1 min, Line Mode: 126% ~ 150% Load – 10 sec, Battery Mode: 105% ~ 130% Load – 10 sec, Battery Mode: 131% – 150% Load – 2 sec
Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
Typical Transfer Time: 0 ms
USB Charge Port: No
VA: 1500 VA
VA by Input Type: 1,500 (1.5 kVA) at 120, 125 V input, 1,350 (1.4 kVA) at 115, 110 V input, 1,200 (1.2 kVA) at 100 V input
Watts: 1350 W
Watts by Input Type: 1,350 (1.4 kW) at 120, 125 V input, 1,215 (1.2 kW) at 115, 110 V input, 1,080 (1.1 kW) at 100 V input
———
Battery
———
Battery Quantity: 3
Battery Size: 12 V / 9 Ah
Battery Type: Sealed Lead-Acid Battery
Extended Battery Module: BP36V60ART2U
Hot Swappable: Yes
Replacement Battery Cartridge: RB1290X3L
Replacement Battery Cartridge Quantity: 1
Runtime at Full Load: 4 min
Runtime at Half Load: 12.5 min
Smart Battery Management (SBM) Mode: Yes
Typical Recharge Time: 4 Hours (0% to 90% charged)
———
Physical
———
Color: Black
Form Factor: Rack / Tower
Material of Construction: Metal
Mounting Hardware: Yes
Rack Height: 2U
—————————-
Management & Communications
—————————-
EMI/RFI Filtration: Yes
Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
Surge Suppression (Joules): 1780 J
—————————-
Management & Communications
—————————-
Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
Dry Contacts: Yes
Emergency Power Off (EPO) Port: Yes
Expansion Slot: Yes – with optional RMCARD205 or RELAYIO500
HID Compliant USB Port: Yes
LCD: Multifunction LCD
LED Indicators: Power On (White), Line Mode (Green), Battery Mode (Yellow), Bypass Mode (Yellow), Fault (Red), Replace Battery (Red)
Management Cable: USB Cable
Removable LCD Control Panel Option: Yes – Requires DB26 cable (not included)
Rotatable LCD Control Panel Option: Yes
Serial Port: 1 Serial
Software (Free Download): PowerPanel® Business
Upgradeable firmware: Yes
————–
Environmental
————–
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 95
Operating Elevation ( feet/meters ): ≤1000, Load Derated 1% per 100m from 1000m and 2000m
Storage Temperature (°C): -40 ~ 70
————–
Certifications
————–
Environmental: RoHS Compliant
Safety: UL1778, FCC Part 15 Class B, CSA C22.2 No. 107.3
————–
Warranty
————–
CEG Amount: $400000
Connected Equipment Guarantee: Lifetime
Extended Warranty Option: WEXT5YR-U4A
Product Warranty: 3 Year Limited Warranty
