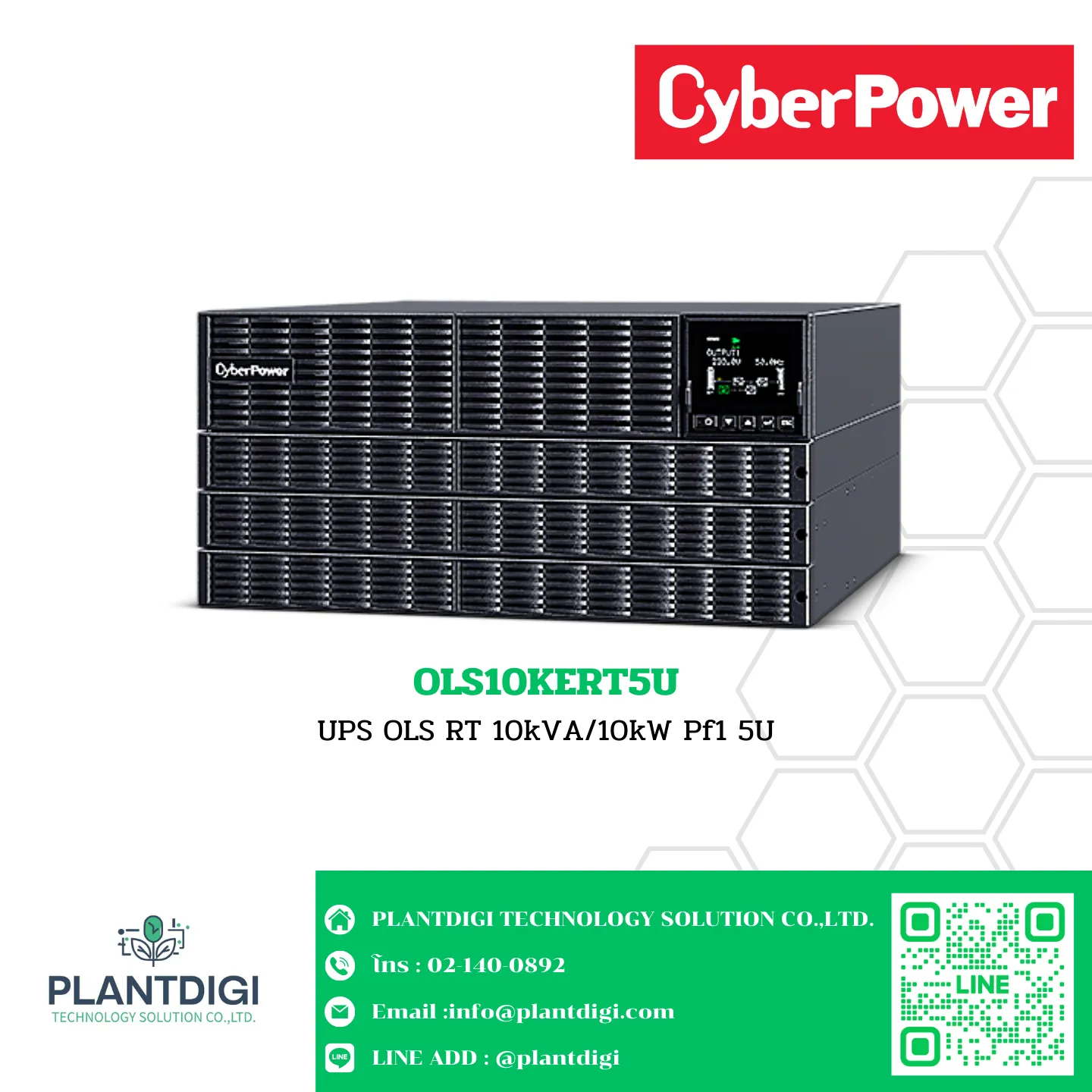

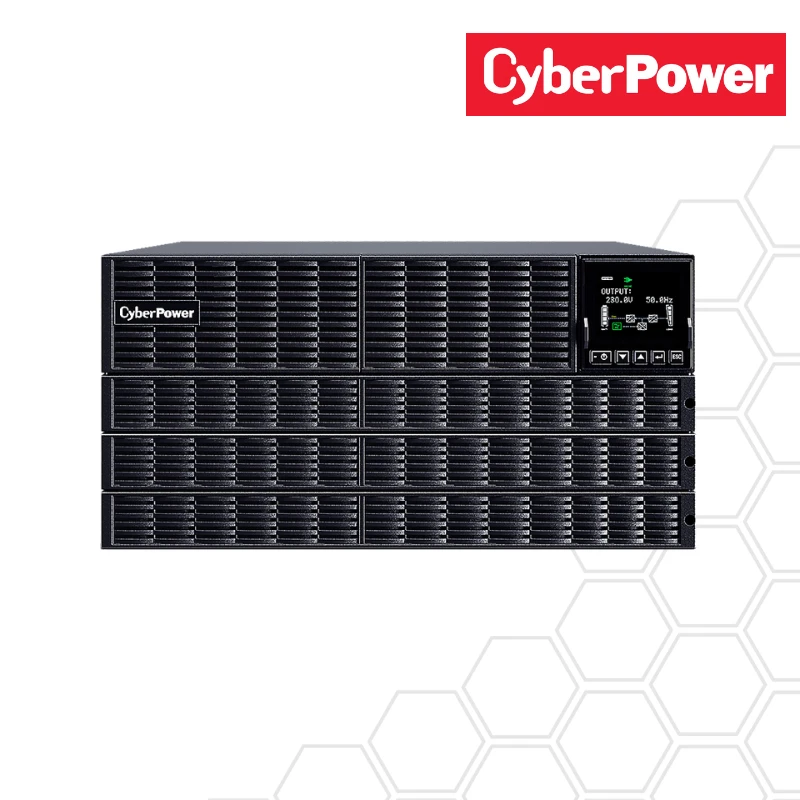

เครื่องสำรองไฟ CyberPower OLS10KERT5U UPS OLS RT 10kVA/10kW Pf1 5U
฿119,600.00
OLS10KERT5U UPS CyberPower OLS RT 10kVA/10kW Pf1 5U
2-yrs onsite with battery
***กรณีสั่งซื้อกับทางเราสามารถแจ้งเคลมผ่านกับเราได้เลย
ติดต่อเราเพื่อสั่งซื้อ สอบถาม หรือขอใบเสนอราคา
โทร : 02-140-0892
มือถือ : 089-314-3423
Line ID : @plantdigi
Email : info@plantdigi.com
สั่งจองสินค้าได้
CyberPower OLS10KERT5U
UPS OLS RT 10kVA/10kW Pf1 5U
UPS Smart App Online UPS EMPRESARIAL EN LÍNEA PARA SALVAGUARDAR EL CENTRO DE DATOS UPS doble conversión en línea de alto rendimiento diseñado con tiempo de transferencia cero para equipos de misión crítica
——–
General
——–
Phase: Single Phase

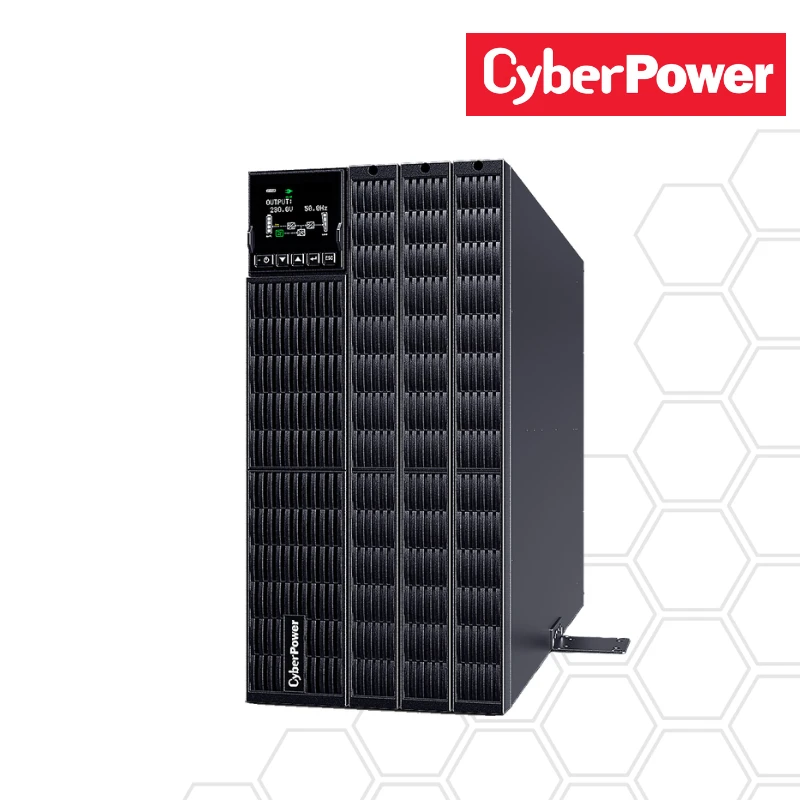

Form Factor: Rackmount, Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: ECO Mode Efficiency > 98%
Active PFC Compatibility: Yes
Parallel Expansion (Max. Units): 4
——
Input
——
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): 230
Input Voltage Range ( Vac ): 110 ~ 300
Adjustable Voltage Range ( Vac ): 0~50% Load for 110 ~ 144 Vac, 0~75% Load for 145 ~ 179 Vac, 0~100% Load for 180 ~ 300 Vac
Input Frequency ( Hz ): 50, 60
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 49.5
Input Power Factor: 0.99
Input Connector Type: Hardwire Terminal Block
——-
Output
——-
Capacity (VA): 10000
Capacity (Watts): 10000
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 200 ± 1 %, 208 ± 1 %, 220 ± 1 %, 230 ± 1 %, 240 ± 1 %
Output Voltage Setting: Configurable
On Battery Frequency ( Hz ): 50 ± 0.5%, 60 ± 0.5%
Output Frequency Setting: Configurable
Power Factor: 1
ECO Mode Voltage Tolerance: ± 10 %
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode): 105~130% Load for 10 sec, >130% Load for 1.5 sec
Overload Protection (Battery Mode): 105~130% Load for 10 sec, >130% Load for 1.5 sec
Overload Protection (Bypass Mode): 110~120% Load for 30 min, 120~130% Load for 2 min, 130~150% Load for 15 sec, >150% Load Immediately
Crest Factor: 3 : 1
Harmonic Distortion (Linear Load): THD＜1.5%
Harmonic Distortion (Non-linear Load): THD＜3%
Internal Bypass: Automatic Bypass, Manual Bypass
Maintenance Bypass: Yes

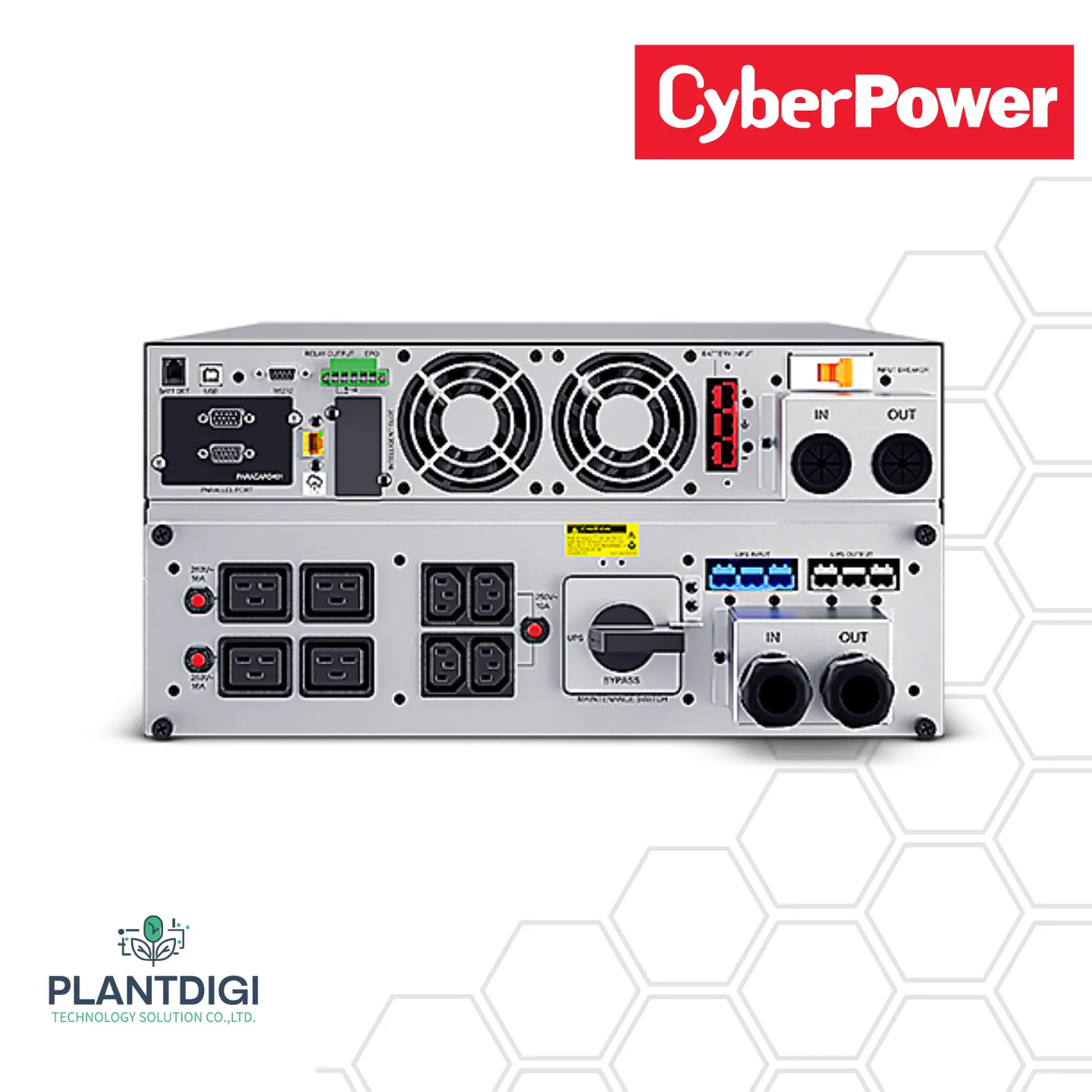

Outlet(s) – Total: 9
Outlet Type:
Hardwire Terminal Block x 1, IEC C13 x 4, IEC C19 x 4
Typical Transfer Time ( ms ): 0
——–
Battery
——–
Runtime at Half Load ( min ): 11.2
Runtime at Full Load ( min ): 2.9
Typical Recharge Time ( Hours ): 4
Maximum Charging Current ( A ): 4
Adjustable Charging Current ( A ): 1 ~ 4
Start On Battery: Yes
Smart Battery Management (SBM): Yes
User-replaceable: Yes
Hot-swappable: Yes – Qualified Personnel Only
Battery Type: Sealed Lead-acid
Compatible Extended Battery Module (EBM): BPS240V9ART3U
Extended Battery Module Auto-detection: Yes
Max. EBM Quantity ( pcs ): 10
—————————–
Surge Protection & Filtering
—————————–
Surge Suppression ( Joules ): 1335
EMI/RFI Filtration: Yes
—————————-
Management & Communications
—————————-
LCD Panel: Yes
LCD Types: Color LCD
LCD Orientation: Rotatable LCD – Manual
Tiltable LCD Panel: 15°
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting
LED Indicators: Power On
HID Compliant USB Port(s): 1
Serial Port: RS232
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cable ( pcs ): Power Cord x4, USB Cable x1, Phone Line x1, Parallel Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes – with optional RMCARD205
Remote Cloud Card: Yes – Built-in Remote Cloud Card by Ethernet
PowerPanel Cloud Service: Yes – 90 Days (UPS) Free Trial + 3 Years (Remote Cloud Card) Free Service
———
Physical
———
Enclosure Construction: Metal
Color: Black
Rackmount Rail: Yes
Rackmount Ears: Yes
—————————
Physical Size – UPS Module
—————————
Dimensions (WxHxD) (mm.): 433 x 213.5 x 661
Weight (kg.): 80
Installed Rack Height ( U ): 5
——————–
Shipping Dimensions
——————–
Dimensions (WxHxD) (mm.): 575 x 489 x 890
Weight (kg.): 99
————–
Environmental
————–
Operating Temperature (°F): 32 ~ 104
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 95
Operating Elevation ( feet/meters ): 0-4,921 feet (0-1,500 meters)
Storage Temperature (°F): 5 ~ 113
Storage Temperature (°C): -15 ~ 45
Storage Relative Humidity (Non-condensing) ( % ): 0 ~ 95
Storage Elevation ( feet/meters ): 0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation ( BTU/hr ): 2047
Audible Noise at 1.0M from Surface of Unit ( dBA ): 62
—————
Certifications
—————
Certifications: CE
RoHS: Yes
—————–
Special Features
—————–
Rack/Tower Convertible Configurations: Yes
