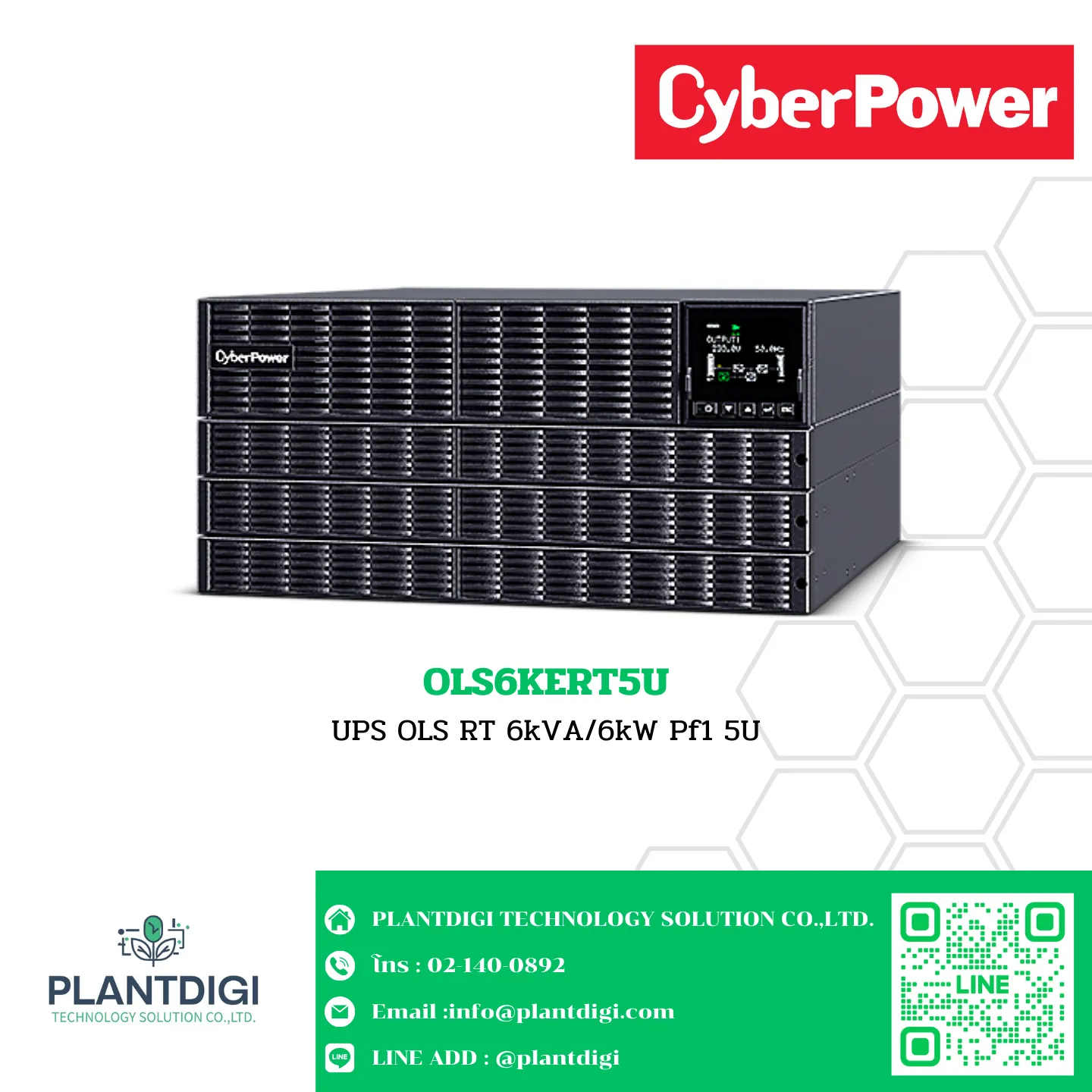

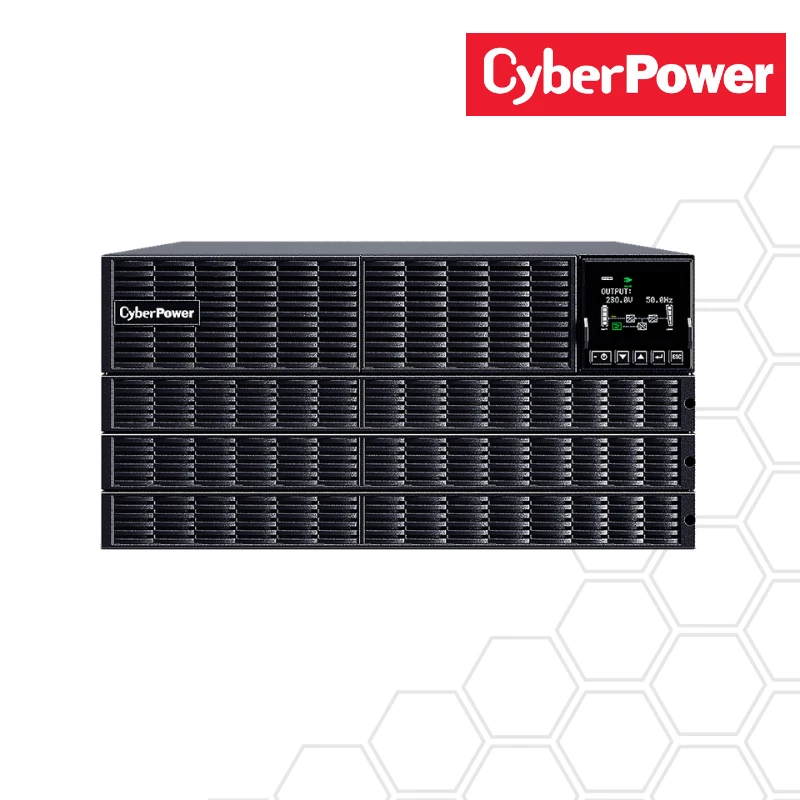

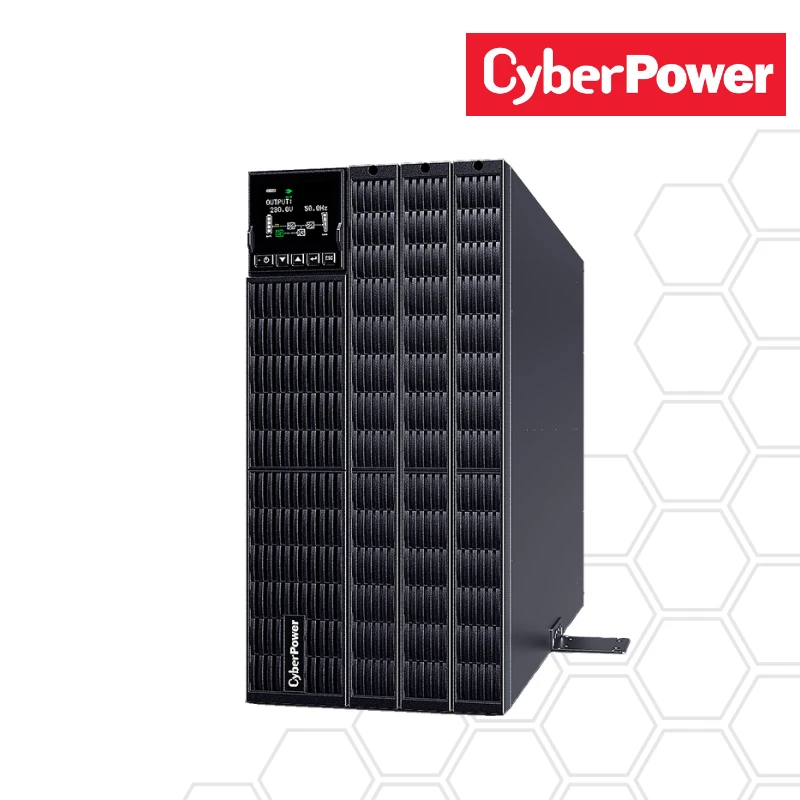

เครื่องสำรองไฟ CyberPower OLS6KERT5U UPS OLS RT 6kVA/6kW Pf1 5U
฿98,990.00
OLS6KERT5U UPS CyberPower OLS RT 6kVA/6kW Pf1 5U
2-yrs onsite with battery
***กรณีสั่งซื้อกับทางเราสามารถแจ้งเคลมผ่านกับเราได้เลย
ติดต่อเราเพื่อสั่งซื้อ สอบถาม หรือขอใบเสนอราคา
โทร : 02-140-0892
มือถือ : 089-314-3423
Line ID : @plantdigi
Email : info@plantdigi.com
สั่งจองสินค้าได้
CyberPower OLS6KERT5U
UPS OLS RT 6kVA/6kW Pf1 5U
Online S (Premium) HIGH-PERFORMANCE UPS GUARANTEES RELIABLE POWER PROTECTION FOR CRITICAL DEVICES The online double-conversion UPS with built-in Remote Cloud Card for easy remote monitoring and management
——–
General
——–
Phase: Single Phase
Form Factor: Rackmount, Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: ECO Mode Efficiency > 98%
Active PFC Compatibility: Yes
Parallel Expansion (Max. Units): 4
——
Input
——
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): 230
Input Voltage Range ( Vac ): 110 ~ 300
Adjustable Voltage Range ( Vac ): 0~50% Load for 110 ~ 144 Vac, 0~75% Load for 145 ~ 179 Vac, 0~100% Load for 180 ~ 300 Vac
Input Frequency ( Hz ): 50, 60
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 30
Input Power Factor: 0.99
Input Connector Type: Hardwire Terminal Block
——-
Output
——-
Capacity (VA): 6000
Capacity (Watts): 6000
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 200 ± 1 %, 208 ± 1 %, 220 ± 1 %, 230 ± 1 %, 240 ± 1 %
Output Voltage Setting: Configurable
On Battery Frequency ( Hz ): 50 ± 0.5%, 60 ± 0.5%
Output Frequency Setting: Configurable
Power Factor: 1
ECO Mode Voltage Tolerance: ± 10 %
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode): 105~130% Load for 10 sec, >130% Load for 1.5 sec
Overload Protection (Battery Mode): 105~130% Load for 10 sec, >130% Load for 1.5 sec
Overload Protection (Bypass Mode): 110~120% Load for 30 min, 120~130% Load for 2 min, 130~150% Load for 15 sec, >150% Load Immediately
Crest Factor: 3 : 1
Harmonic Distortion (Linear Load): THD＜1.5%
Harmonic Distortion (Non-linear Load): THD＜2%
Internal Bypass: Automatic Bypass, Manual Bypass
Maintenance Bypass: Yes
Outlet(s) – Total: 9
Outlet Type: Hardwire Terminal Block x 1, IEC C13 x 4, IEC C19 x 4
Typical Transfer Time ( ms ): 0
——–
Battery
——–
Runtime at Half Load ( min ): 17.7
Runtime at Full Load ( min ): 5.6
Typical Recharge Time ( Hours ): 4
Maximum Charging Current ( A ): 4
Adjustable Charging Current ( A ): 1 ~ 4
Start On Battery: Yes
Smart Battery Management (SBM): Yes
User-replaceable: Yes
Hot-swappable: Yes – Qualified Personnel Only
Battery Type: Sealed Lead-acid
Compatible Extended Battery Module (EBM): BPS240V7ART3U
Extended Battery Module Auto-detection: Yes
Max. EBM Quantity ( pcs ): 10
—————————–
Surge Protection & Filtering
—————————–
Surge Suppression ( Joules ): 1335
EMI/RFI Filtration: Yes
—————————-
Management & Communications
—————————-
LCD Panel: Yes
LCD Types: Color LCD
LCD Orientation: Rotatable LCD – Manual
Tiltable LCD Panel: 15°
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting
LED Indicators: Power On
HID Compliant USB Port(s): 1
Serial Port: RS232
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cable ( pcs ): Power Cord x4, USB Cable x1, Phone Line x1, Parallel Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes – with optional RMCARD205
Remote Cloud Card: Yes – Built-in Remote Cloud Card by Ethernet
PowerPanel Cloud Service: Yes – 90 Days (UPS) Free Trial + 3 Years (Remote Cloud Card) Free Service
———
Physical
———
Enclosure Construction: Metal
Color: Black
Rackmount Rail: Yes
Rackmount Ears: Yes
—————————
Physical Size – UPS Module
—————————
Dimensions (WxHxD) (mm.): 433 x 213.5 x 661
Weight (kg.): 69
Installed Rack Height ( U ): 5
——————–
Shipping Dimensions
——————–
Dimensions (WxHxD) (mm.): 575 x 489 x 890
Weight (kg.): 86.8
————–
Environmental
————–
Operating Temperature (°F): 32 ~ 104
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 95
Operating Elevation ( feet/meters ): 0-4,921 feet (0-1,500 meters)
Storage Temperature (°F): 5 ~ 113
Storage Temperature (°C): -15 ~ 45
Storage Relative Humidity (Non-condensing) ( % ): 0 ~ 95
Storage Elevation ( feet/meters ): 0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation ( BTU/hr ): 1777
Audible Noise at 1.0M from Surface of Unit ( dBA ): 62
—————
Certifications
—————
Certifications: CE
RoHS: Yes
—————–
Special Features
—————–
Rack/Tower Convertible Configurations: Yes
