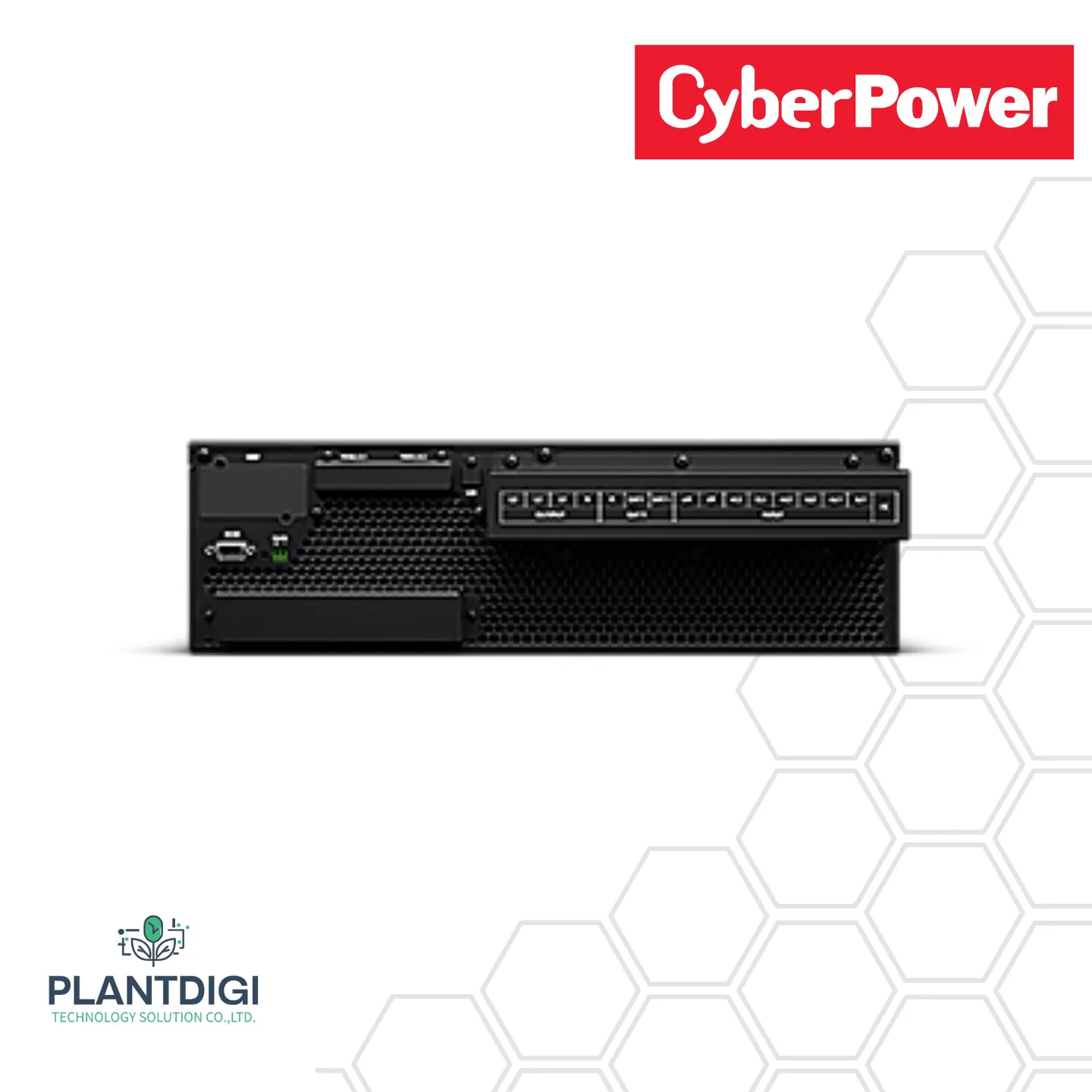

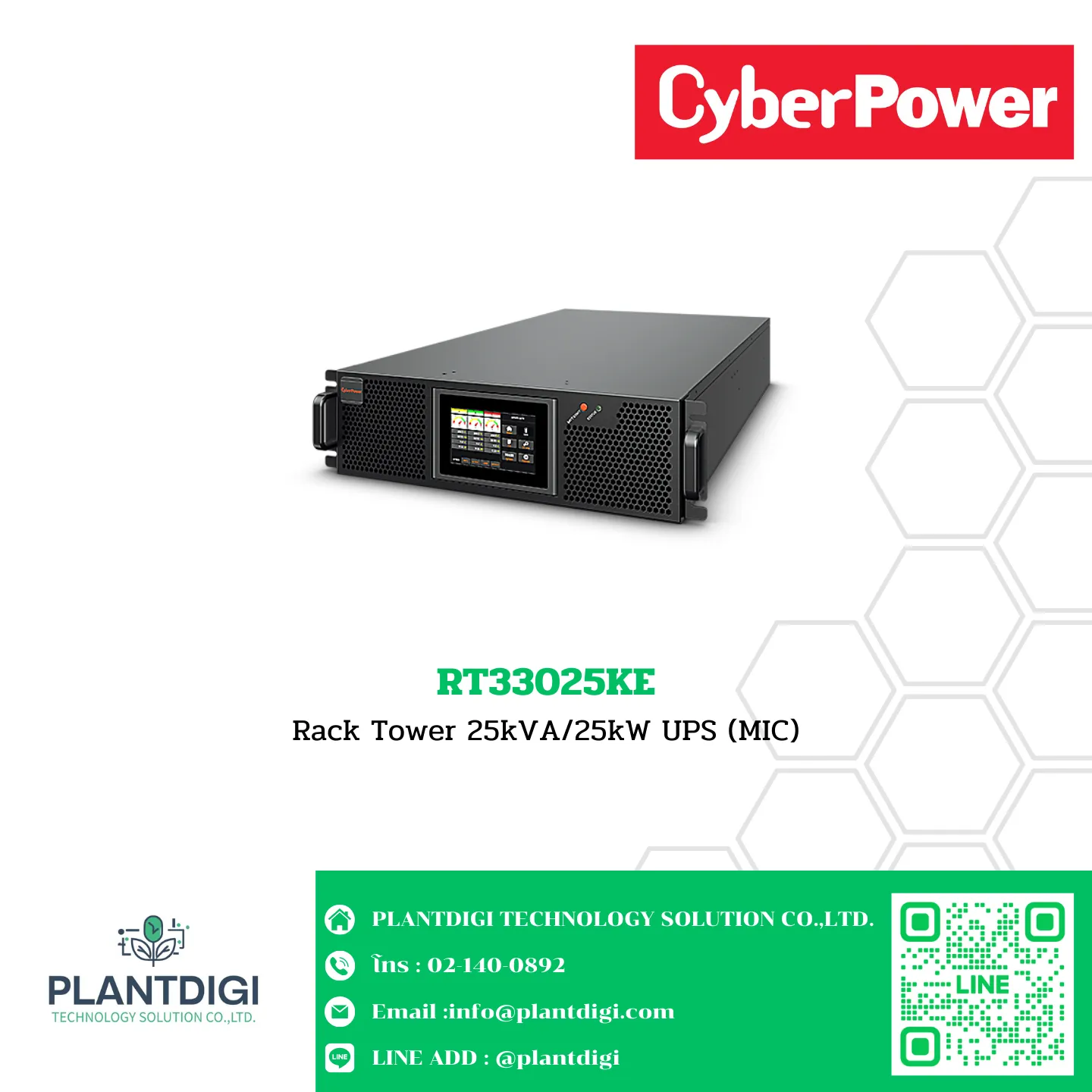

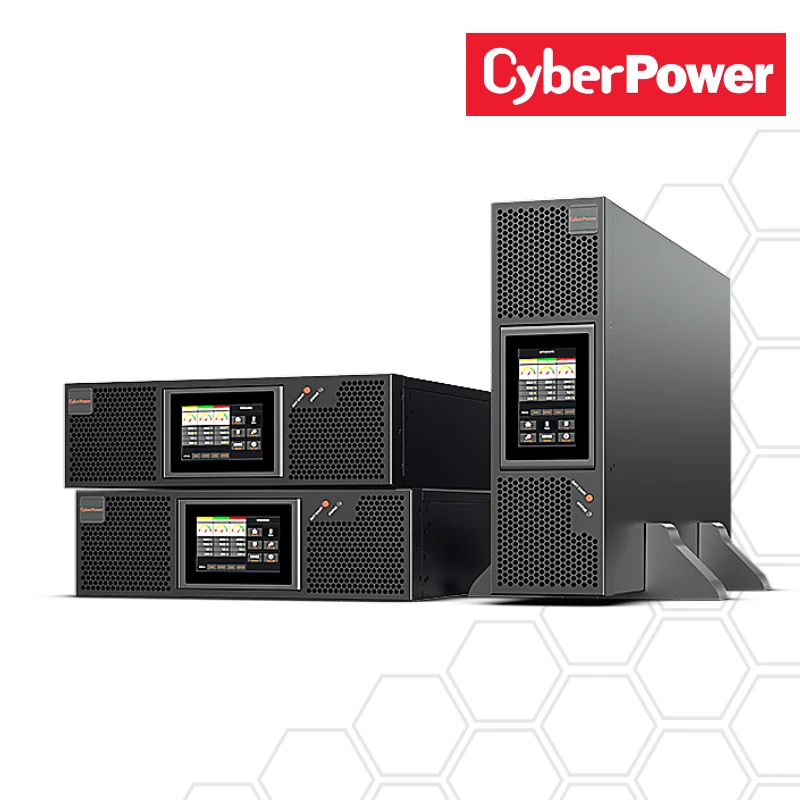

เครื่องสำรองไฟ CyberPower RT33025KE

General Information

• Phase: Three Phase
• Form Factor: Rackmount, Tower
• UPS Topology: Online Double Conversion
• Energy Saving Technology: ECO Mode Efficiency > 98%
• Normal Mode Efficiency: 95.5%
• Battery Mode Efficiency: 95.5%
• Active PFC Compatibility: Yes

• Parallel Expansion (Max. Units): 4

Input Specifications

• Dual Power Inputs: Yes
• Generator Compatibility: Yes
• Nominal Input Voltage (Vac):
  • Line to Neutral (L-N): 220, 230, 240 Vac
  • Line to Line (L-L): 380, 400, 415 Vac
• Input Voltage Range (Vac):
  • Line to Neutral (L-N): 132 ~ 276 Vac
  • Line to Line (L-L): 228 ~ 478 Vac
• Configurable Voltage Range (Vac):
  • Line to Neutral (L-N): 220 ~ 250 Vac
  • Line to Line (L-L): 380 ~ 435 Vac
• Input Frequency (Hz): 50 ± 3, 60 ± 3
• Input Frequency Range (Hz): 40 ~ 70
• Rated Input Current (A): 38
• Input Power Factor: 0.99
• Input Connector Type: Hardwire Terminal Block

Output Specifications

• Capacity (VA): 25000
• Capacity (Watts): 25000
• On Battery Waveform: Pure Sine Wave
• Output Voltage Setting: Configurable
• Output Frequency Setting: Configurable
• Rated Output Voltage (Vac):
  • Line to Neutral (L-N): 220, 230, 240 Vac
  • Line to Line (L-L): 380, 400, 415 Vac
• Output Voltage Tolerance (%): 1.5%
• Output Frequency (Hz ± %): 50 ± 0.1, 60 ± 0.1
• Power Factor: 1
• ECO Mode Voltage Tolerance: ± 10%
• Overload Protection:
  • Internal Current Limiting, Circuit Breaker, Fuse
  • Line Mode: 105~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load Immediately
  • Battery Mode: 105~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load Immediately
  • Bypass Mode: 125~130% Load for 10 min, 130~150% Load for 1 min, 150~400% Load for 1 sec, >400% Load Immediately
• Crest Factor: 3:1
• Harmonic Distortion (Linear Load): THD＜1%
• Harmonic Distortion (Non-linear Load): THD＜6%
• Internal Bypass: Automatic Bypass, Manual Bypass
• Outlet Type: Hardwire Terminal Block x 1
• Typical Transfer Time (ms): 0

Battery Specifications

• Compatible Battery Types: VRLA, AGM, Gel, Wet
• Recharge Power (%): Default 10% (Selectable from 1~20% x UPS Capacity)
• Recharge Power Setting: Configurable
• Charger Voltage Tolerance (%): ≤ 1%
• Start On Battery: Yes
• Smart Battery Management (SBM): Yes
• User-replaceable: No
• Battery Solution: Extended Battery
• Battery Voltage (V): ±240 (480)
• Compatible Extended Battery Module (EBM): BM240V63ART3U
• Compatible Extended Battery Cabinet (EBC): SMBF17, SMBF20, SMBF26, SMBF40, SMBF65, BCA100N125, BCA12N63, BCA20N125, BCA40N125
• External Battery Quantity: 12V x 40pcs

Surge Protection & Filtering

• EMI/RFI Filtration: Yes

Management & Communications

• LCD Panel: Yes
• LCD Types: Color LCD, LCD Touch Panel
• LCD Orientation: Rotatable LCD – Manual
• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
• LCD Setting & Control: Mode Setting, Input & Output, Battery Setting, Communication, Event & Log, Security Setting, Language
• LED Indicators: Yes
• Serial Port: RS232 x 1 + RS485 x 1 + Dry Contact x1
• Dry Contact (with Relay): Yes
• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
• Management Cable (pcs): Power Cord x1
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes – with optional RMCARD205

Physical Specifications

• Compatible with Racks (3 Phase): Yes
• Enclosure Construction: Metal
• Color: Black
• Ingress Protection: IP20
• Rackmount Rail: Yes
• Rackmount Ears: Yes
• High Density Design: Yes

Physical Size – UPS Module

• Dimensions (WxHxD) (mm): 438 x 130 x 750
• Weight (kg): 27
• Installed Rack Height (U): 3

Shipping Dimensions

• Dimensions (WxHxD) (mm): 575 x 270 x 950
• Weight (kg): 34

Environmental Specifications

• Operating Temperature (°C): 0 ~ 40
• Operating Relative Humidity (Non-condensing) (%): 0 ~ 95
• Operating Elevation (feet/meters): ≤1000, Load Derated 1% per 100m from 1000m and 2000m
• Storage Temperature (°C): -40 ~ 70
• Storage Relative Humidity (Non-condensing) (%): 0 ~ 95
• Audible Noise at 1.0M from Surface of Unit (dBA): 58

Certifications

• Certifications: CE, BSMI, IEC62040-1, IEC62040-2

Special Features

• Phase Configuration (3 Phase): Yes
