เครื่องสำรองไฟ APC Easy UPS 3S รุ่น E3SUPS15K3I

E3SUPS15K3I

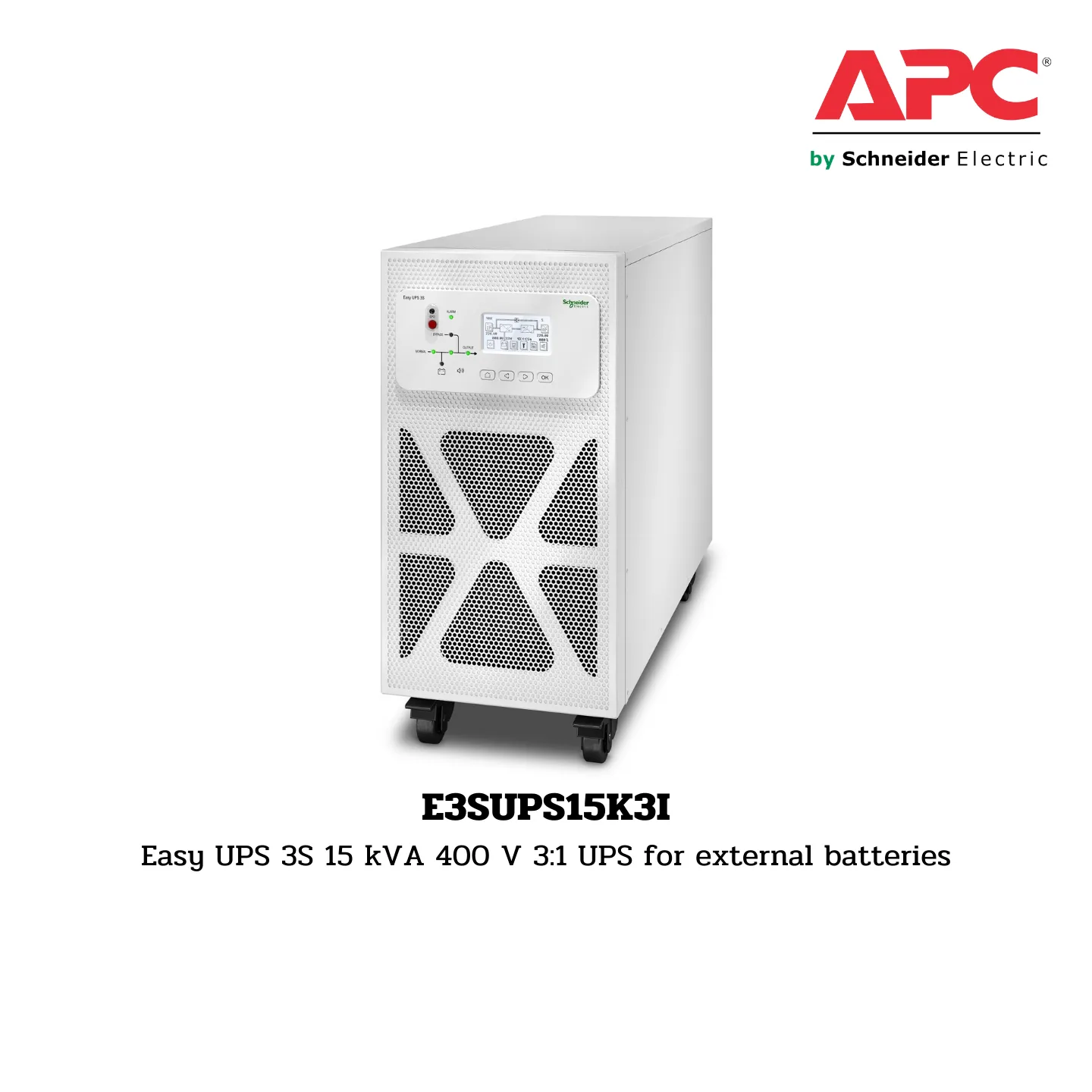

Easy UPS 3S 15 kVA 400 V 3:1 UPS for external batteries

Presentation

A high-efficiency 3-phase UPS designed to ensure business continuity in data centers or electrical rooms. This 15 kVA UPS, ideal for small and medium businesses, is exceptionally easy to install, operate, maintain, and service. It includes a dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, allowing you to customize the battery solution as needed.

Lead Time

Usually ships within 6 weeks

Main Specifications

• Main Input Voltage: 400 V (3 phases)
• Other Input Voltage: 380 V, 415 V
• Main Output Voltage: 230 V
• Other Output Voltage: 220 V, 240 V
• Rated Power: 15 kW / 15 kVA
• Provided Equipment: Dust filter, Installation guide
• Product Type: Uninterruptible Power Supply (UPS)

Batteries & Runtime

• Battery Type: External battery system
• Maximum Short-Circuit Current: 10 kA
• Battery Slots: 0 filled, 0 free

Physical Specifications

• Colour: White (RAL 9003)
• Dimensions: 53 cm (H) x 25 cm (W) x 70 cm (D)
• Net Weight: 36 kg
• USB Compatible: Yes

Input Specifications

• Maximum Input Current: 28 A
• Input Harmonic Distortion: Less than 5% for full load
• Input Power Factor: 0.99 at full load
• Network Frequency: 45…65 Hz

Output Specifications

• Maximum Configurable Power: 15 kVA / 15 kW
• Output Frequency: 50 Hz / 60 Hz (sync to mains)
• Harmonic Distortion: Less than 3%
• Output Overload Operation: 10 minutes at 125%, 60 seconds at 150%
• UPS Type: Double conversion online
• Crest Factor: 3:1

Conformance

• Product Certifications: CE, EAC, RCM

Environmental Specifications

• Operating Temperature: 0…40 °C
• Relative Humidity: 0…95% non-condensing
• Operating Altitude: 0…3281 ft
• Storage Temperature: -15…40 °C
• Storage Relative Humidity: 0…95% non-condensing
• Storage Altitude: 0…15240 m
• Acoustic Level: 60 dBA
• Heat Dissipation: 516 W
• IP Protection: IP20

Packing Units

• Package Type: PCE
• Package Height: 77.2 cm
• Package Width: 85.7 cm
• Package Length: 40 cm
• Package Weight: 50 kg
• Number of Units in Package: 1
