เครื่องสำรองไฟ APC SMT รุ่น SMT750IC

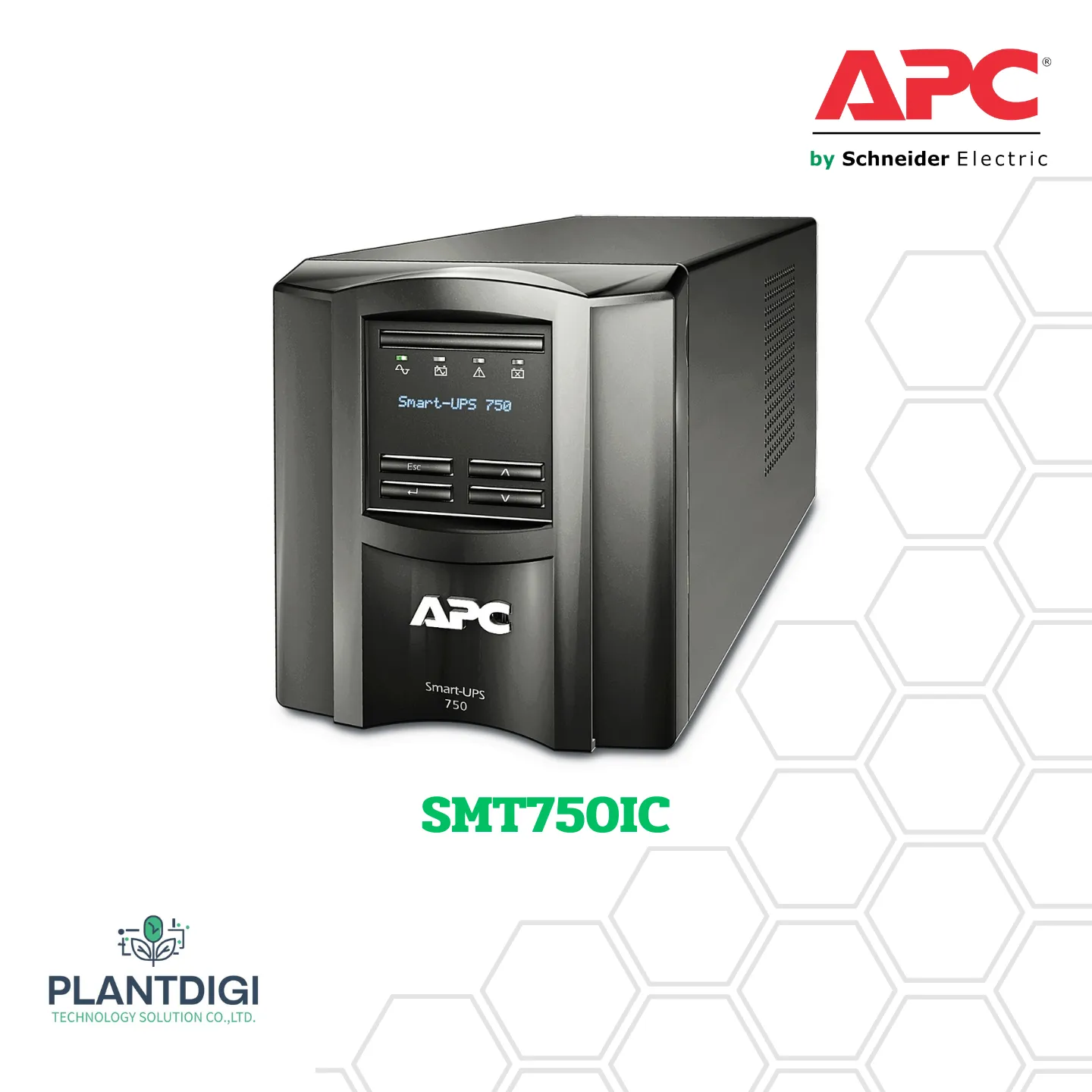

APC SMT750IC

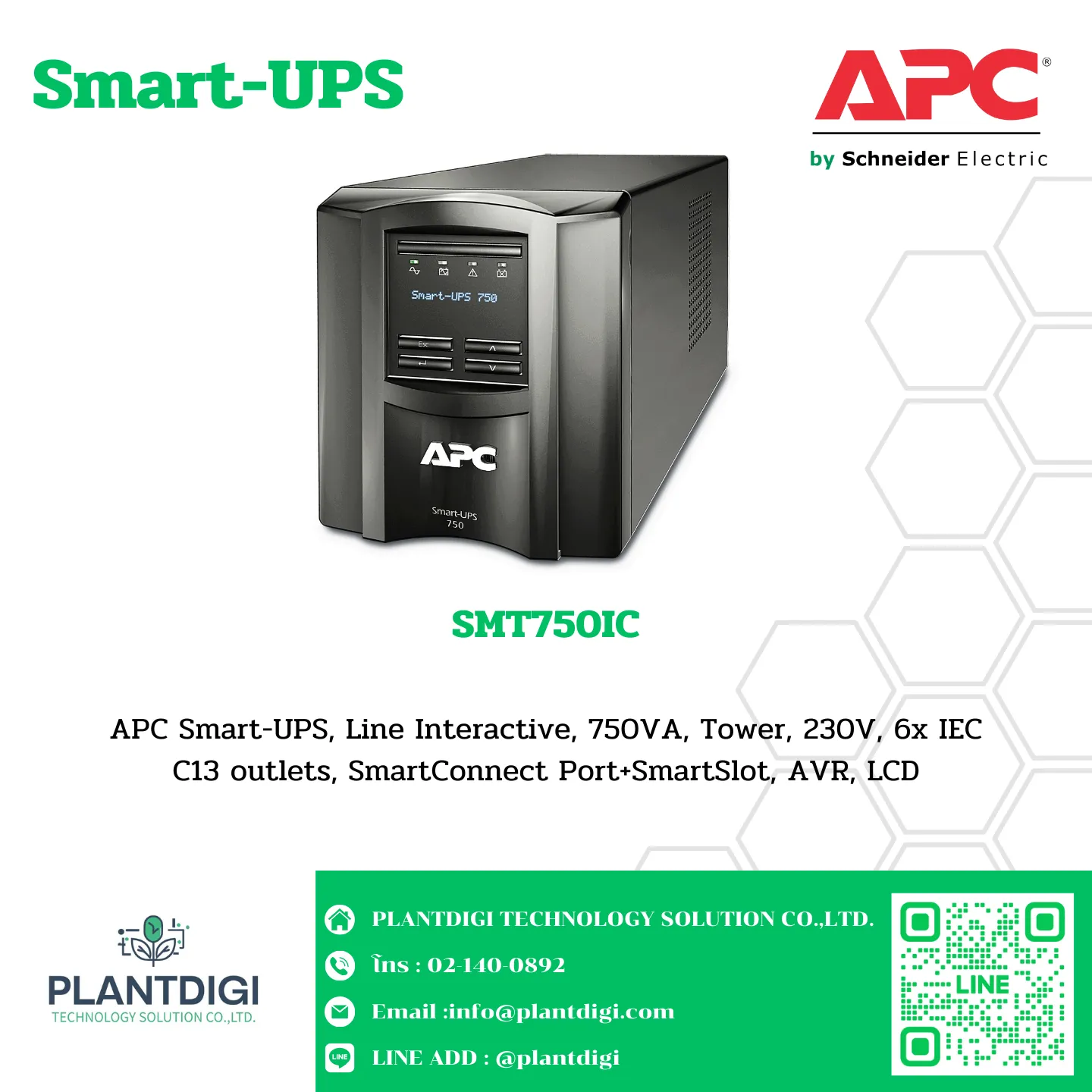

APC Smart-UPS, Line Interactive, 750VA, Tower, 230V, 6x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD

———
Overview
———–
Presentation:Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time : Usually Ships within 2 Weeks

————-
Main
————–
รันไทม์สําหรับโหลด 500 W
ต่ำสุด-สูงสุด: 50-500 W 4min 34s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 230 V
Other Input Voltage: 220 V 240 V
Main Output Voltage: 230 V
Other Output Voltage: 220 V 240 V
Rated power in W: 500 W
Rated power in VA: 750 VA
Product or component type: Uninterruptible power supply (UPS)
Input Connection Type: IEC 320 C14

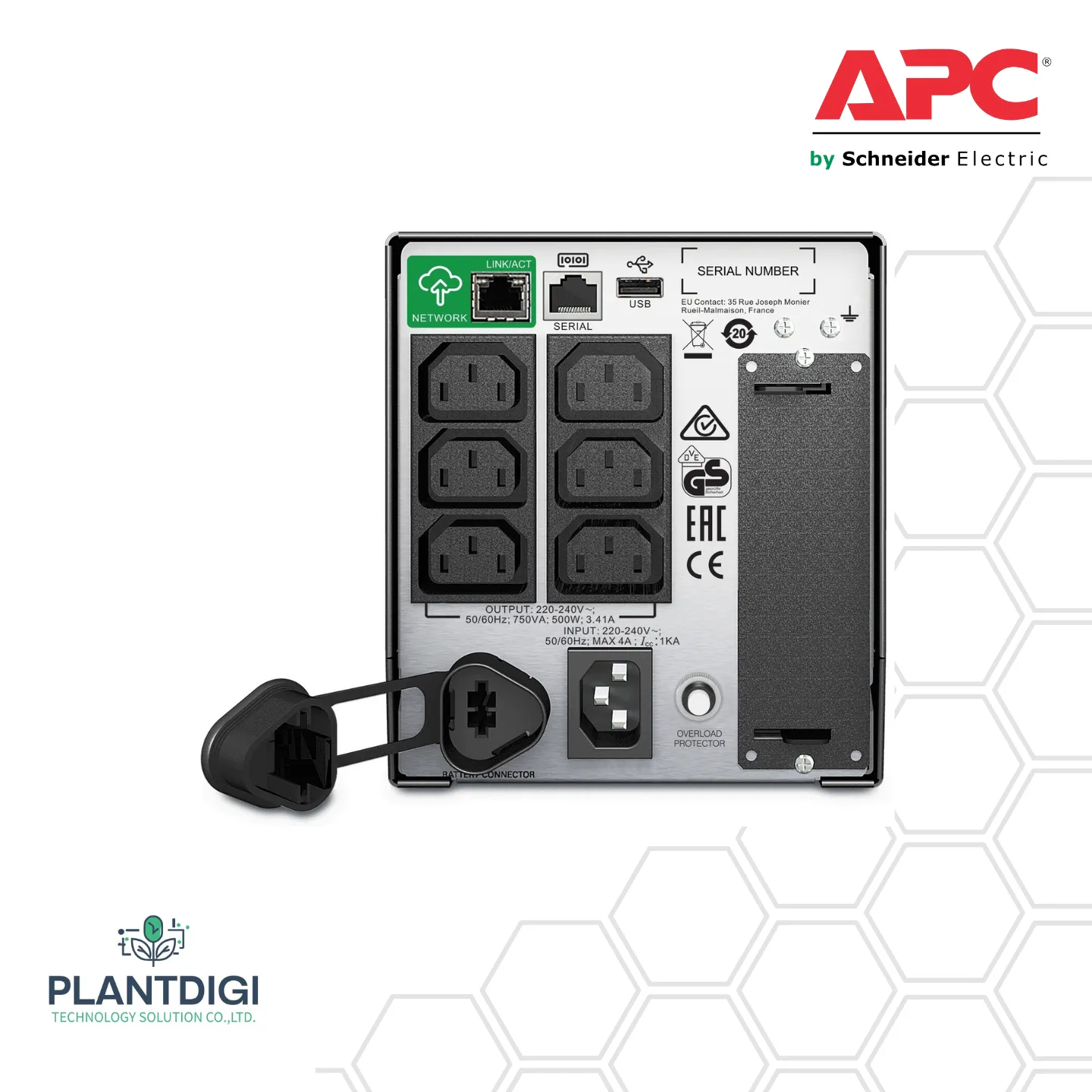

output connection type: 6 IEC 320 C13, 2 IEC Jumpers
Cable length: 1.8 m
Number of cables: 1
Battery type: Lead-acid battery
Provided equipment: USB cable
Range of product: Smart-UPS

—————–
Complementary
—————–
Communication port type: SmartConnect Ethernet port, SmartSlot
Software package: SmartConnect software for remote power monitoring feature availability varies by terms of use

—————-
Batteries & Runtime
——————-
Battery voltage: 24 V
Extended runtime: 0
Battery capacity: 7.0 Ah
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 3 h
Number of battery replacement quantity: 1
Battery life: 3…5 year(s)
Replacement battery: RBC48
Battery charger power: 49 W rated

————-
General
————
Number of power module filled slots: 0
Number of power module free slots: 0
product web sub-family: Cloud-enabled monitoring
Redundant: No

———
Physical
———
Colour: Black
Height: 16.1 cm
Width: 13.8 cm
Depth: 36.9 cm
Net weight: 11.8 kg
mounting location: Front
Mounting preference: No preference
mounting mode: Not rack-mountable
Two post mountable: 0
USB compatible: Yes

—–
Input
—–
Input voltage limits: 151…302 V adjustable
160…280 V
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing

——-
Output
——-
Harmonic distortion: Less than 5 %
Maximum configurable power in VA: 750 VA
Maximum configurable power in W: 500 W
Transfer time: 6 ms typical : 10 ms maximum
UPS type: Line interactive
Wave type: Sine wave
Output frequency: 50/60 Hz +/- 3 Hz sync to mains

————
Conformance
————
Product certifications: CE, EAC, RCM, VDE, UK PSTI
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

————-
Environmental
————-
acoustic level: 40dBA
Heat dissipation: 90tu/h
Operating altitude: 0…10000 ft
Ambient air temperature for operation: 0…40 °C
Ambient air temperature for storage: -15…45 °C
Storage altitude: 0.0000000000…15240.0000000000 m
Relative humidity: 0…95 %
Storage Relative Humidity: 0…95 %

—————————-
Communications & Management
—————————-
Control panel: Multifunction LCD status and control console
Emergency power off : Optional
Free slots: 1
Communication port support: SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 540 J
Noise suppression: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

—————
Packing Units
—————
Unit Type of Package 1:PCE
Number of Units in Package 1: 1
Package 1 Height: 49.911 cm
Package 1 Width: 27.813 cm
Package 1 Length: 30.099 cm
Package 1 Weight: 14.197 kg
Unit Type of Package 2: P12
Number of Units in Package 2: 6
Package 2 Height: 42.000 cm
Package 2 Width: 80.000 cm
Package 2 Length: 120.000 cm
Package 2 Weight: 85.182 kg

——————–
Contractual warranty
——————–
3 years repair or replace (excluding battery) and 2 years for battery
