เครื่องสำรองไฟ APC SMV รุ่น SMV2000AI-MS

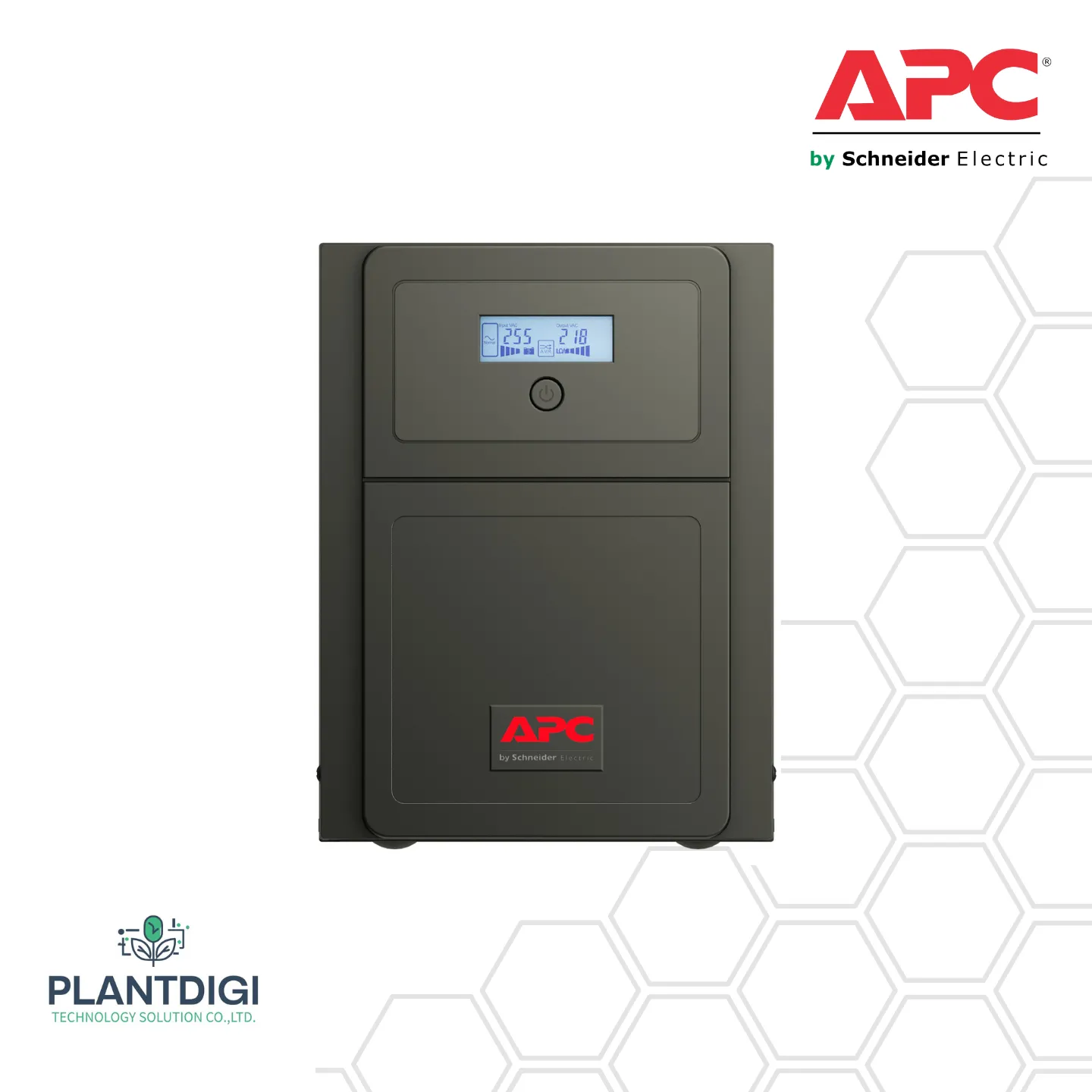

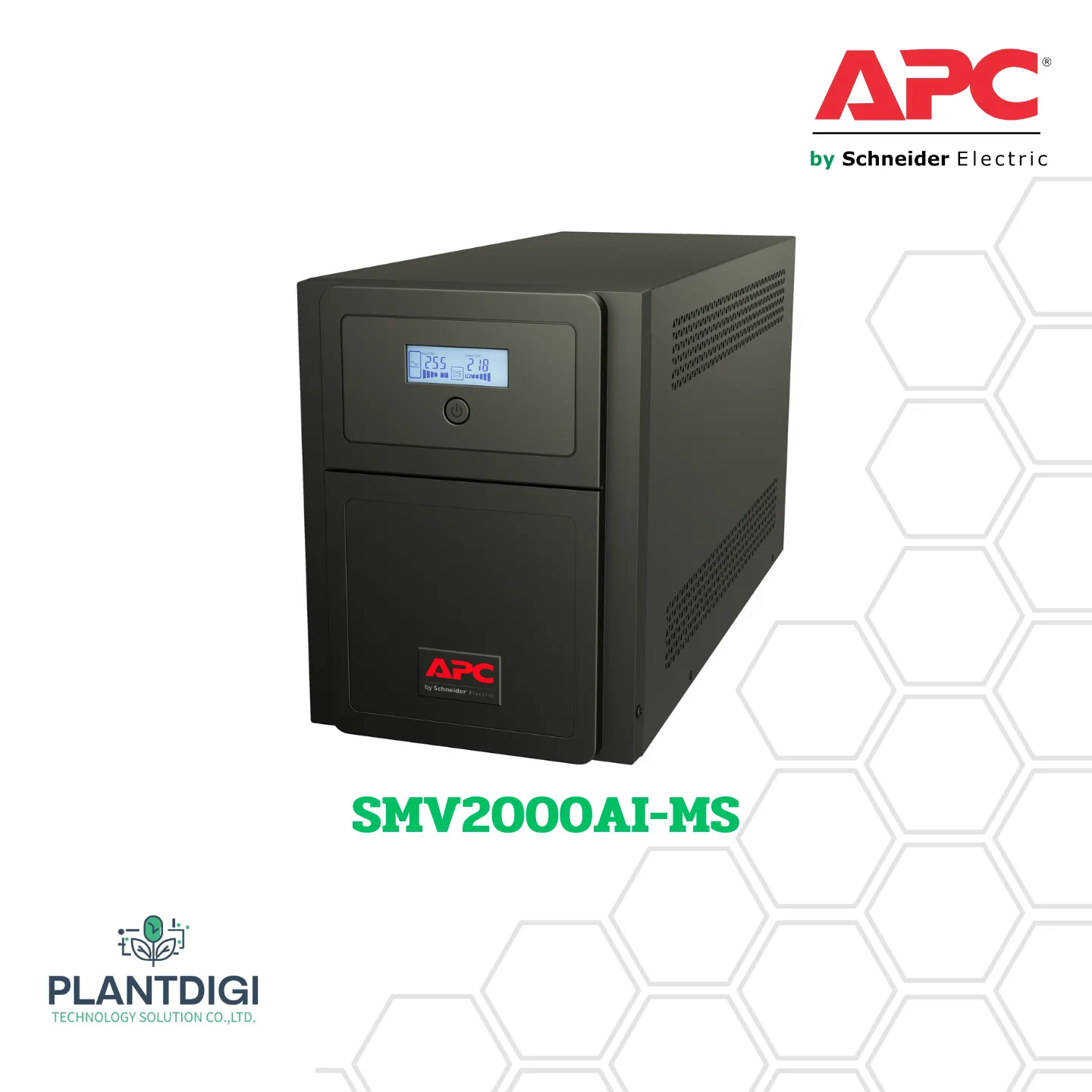

APC SMV2000AI-MS

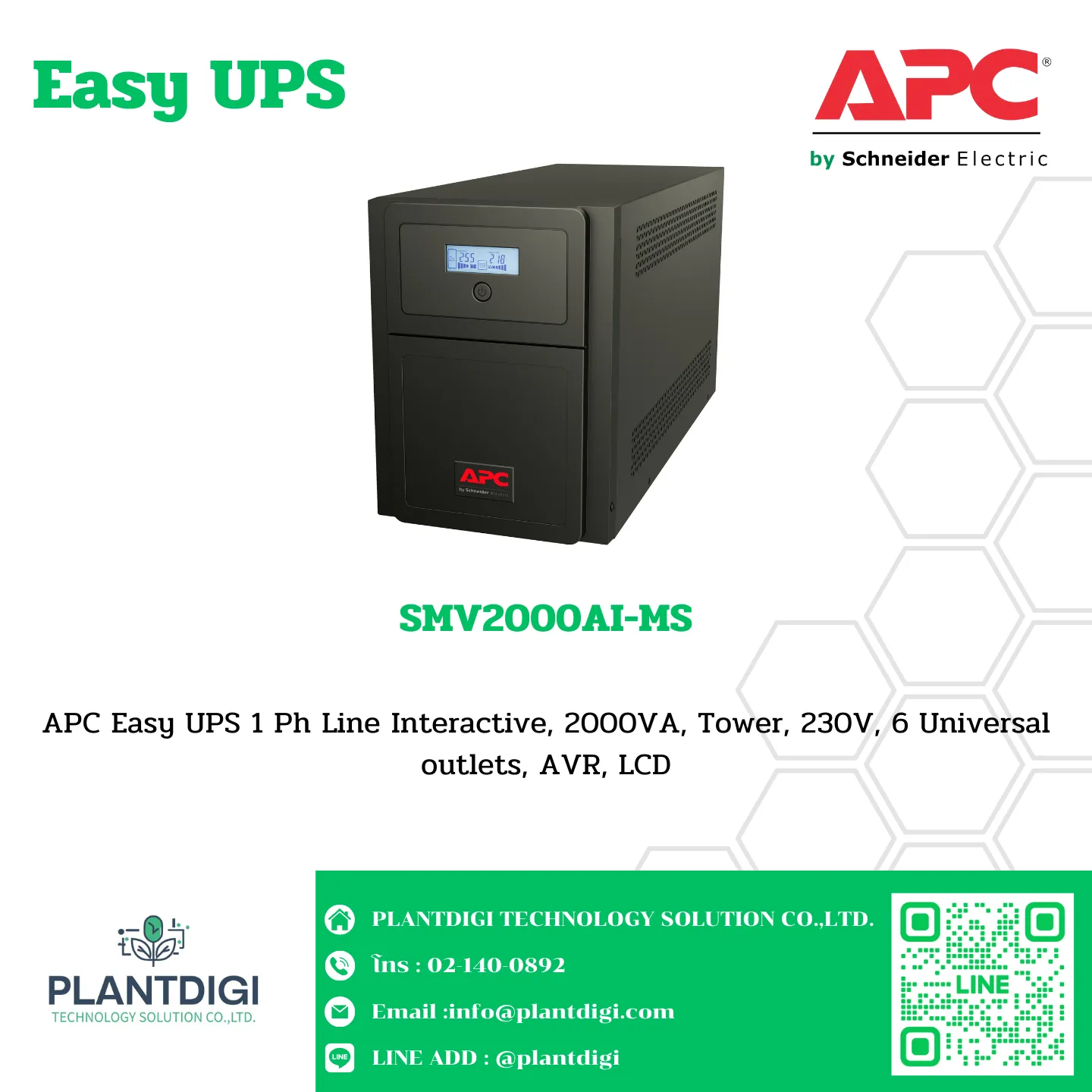

APC Easy UPS 1 Ph Line Interactive, 2000VA, Tower, 230V, 6 Universal outlets, AVR, LCD

Specifications

————-
Main
————–
รันไทม์สําหรับโหลด: 1400W
ต่ำสุด-สูงสุด: 140-1400 W 3min 21s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 230 V
Input voltage: 220 V 240 V
Main Output Voltage: 230 V
Rated power in W: 1400 W
Rated power in VA: 2000 VA
Product or component type: Uninterruptible power supply (UPS)
Input Connection Type: IEC 60320 C14

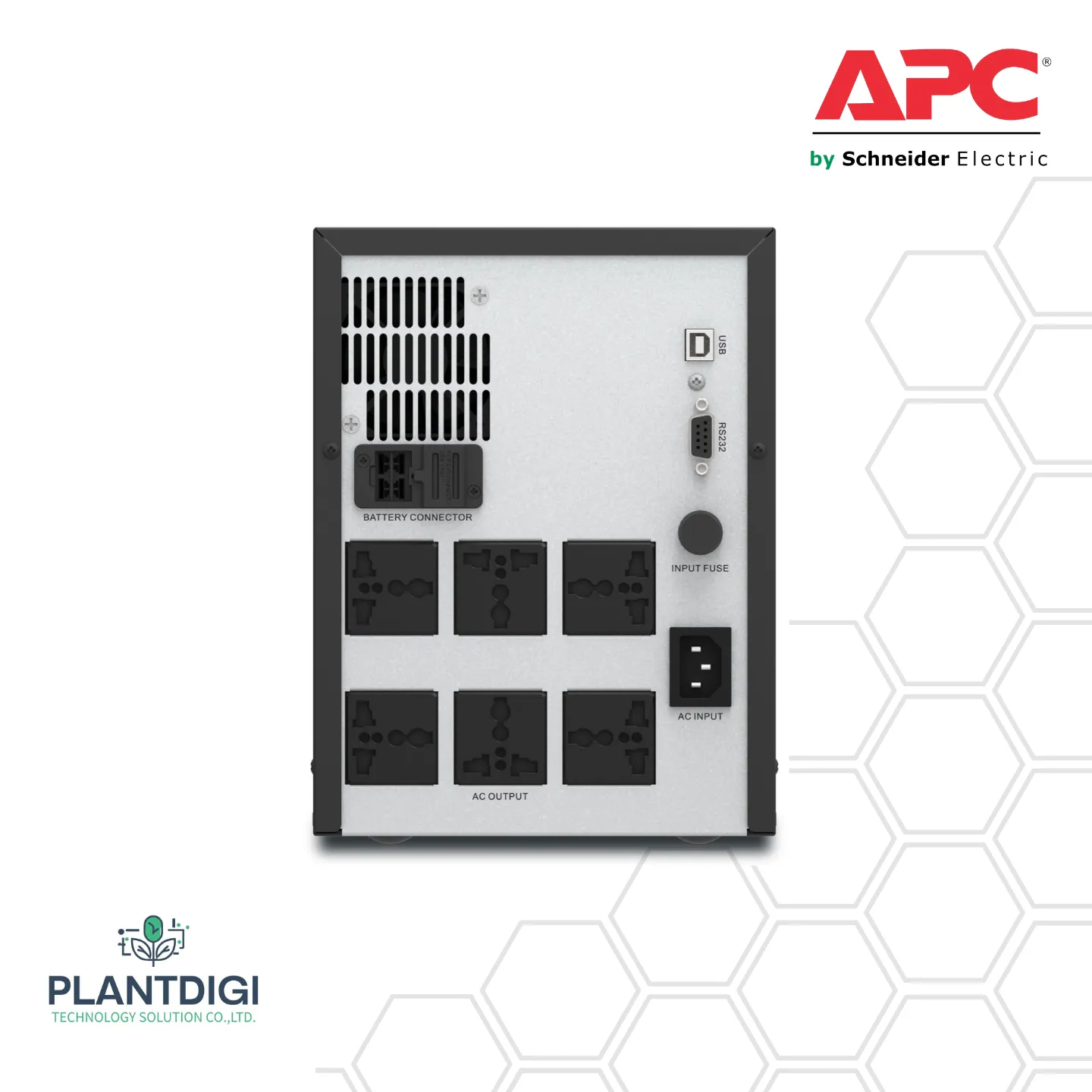

output connection type: 6 universal receptacle
Number of cables: 1
Battery type: Lead-acid battery,Provided equipment, Documentation CD ,User manual ,USB cable

—————-
Batteries & Runtime
——————-
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 4 h
Battery voltage:48 V
Battery charger power:75 W rated
Battery life:3…5 year(s)
Replacement battery:APCRBCV208
Extended runtime:0

————-
General
————
Number of power module free slots: 0
Number of power module filled slots: 0
Redundant: No
UPS size: WS

———
Physical
———
Colour: Black
Height: 24 cm
Width: 18 cm
Depth: 45.5 cm
Net weight: 23.5 kg
Mounting preference: No preference
mounting mode: Not rack-mountable
Two post mountable:0
USB compatible: No

—–
Input
—–
Network frequency: 45…65 Hz +/- 1 Hz auto-sensing
Input voltage limits: 165…295 V

——-
Output
——-
Maximum configurable power in W: 1400 W
Output frequency: 50/60 Hz +/- 1 Hz unsynchronised
Crest factor: 3 : 1
UPS type: Line interactive
Wave type: Sine wave
Graph display: 1
Maximum configurable power in VA: 2000 VA
Transfer time: 2-6 ms typical : 12 ms maximum

————
Conformance
————
Product certifications: CE,TISI

————-
Environmental
————-
Ambient air temperature for operation:0…40 °C
Relative humidity:0…95 % non-condensing
Operating altitude:0…3000 m
Ambient air temperature for storage:-10…40 °C
Storage Relative Humidity:0…95 % non-condensing
Storage altitude:0…15000 m
acoustic level:45 dBA
IP degree of protection:IP20

—————————-
Communications & Management
—————————-
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate : 125 J

—————
Packing Units
—————
Unit Type of Package 1:PCE
Number of Units in Package 1: 1
Package 1 Height: 41.05 cm
Package 1 Width: 32.6 cm
Package 1 Length: 60.1 cm
Package 1 Weight: 26.9 kg

——————–
Contractual warranty
——————–
Warranty: 2 years repair or replace
