เครื่องสำรองไฟ APC SMX รุ่น SMX3000RMHV2U

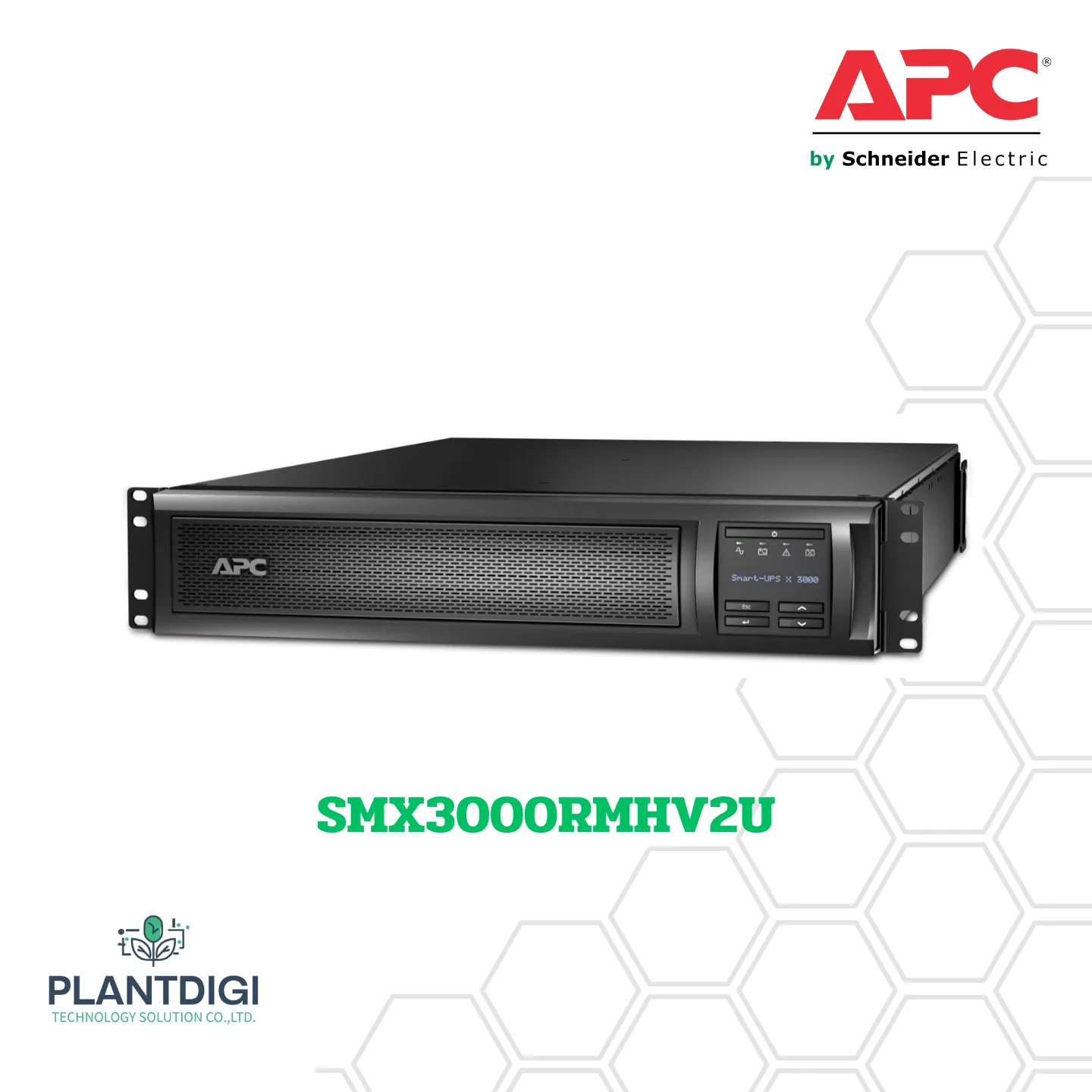

APC SMX3000RMHV2U

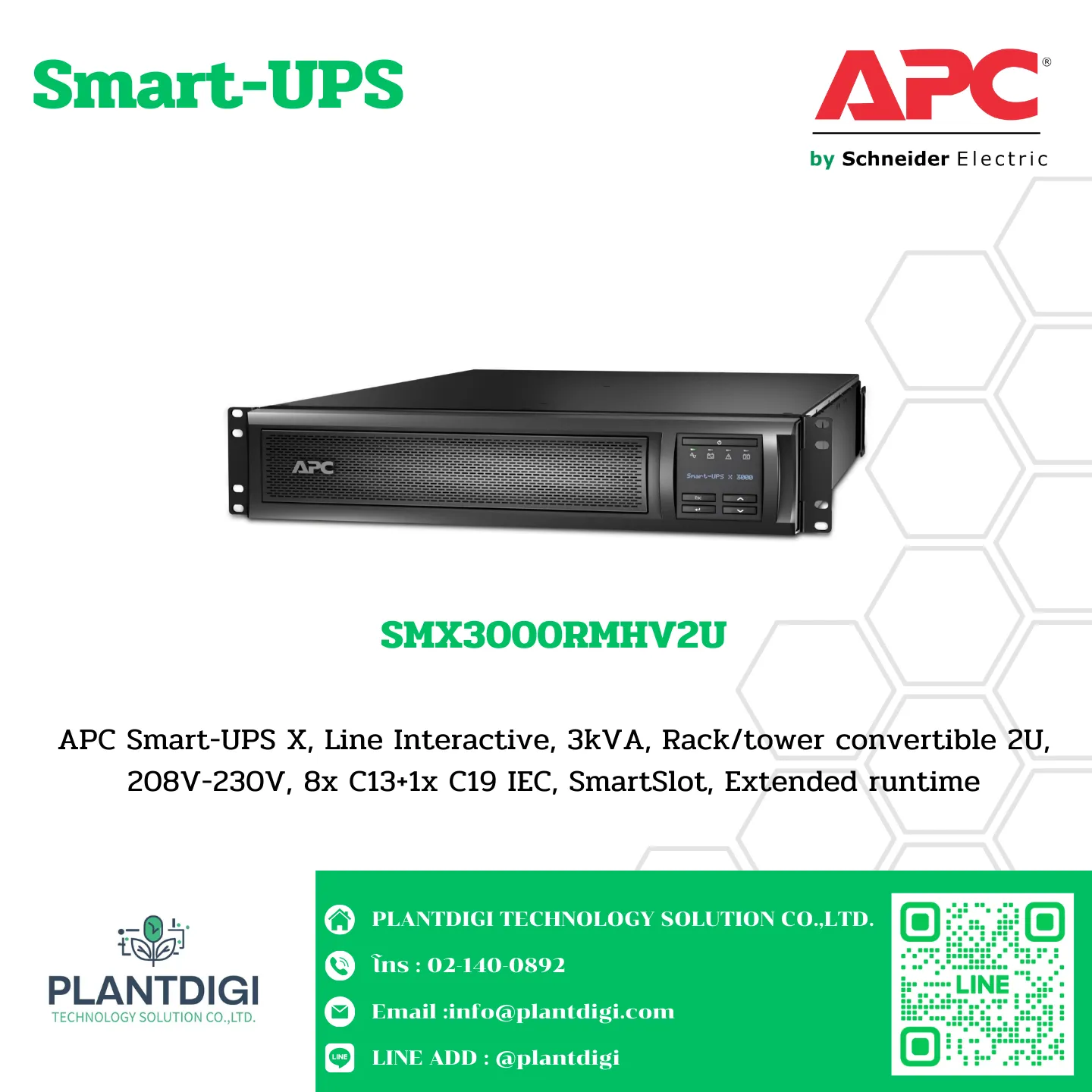

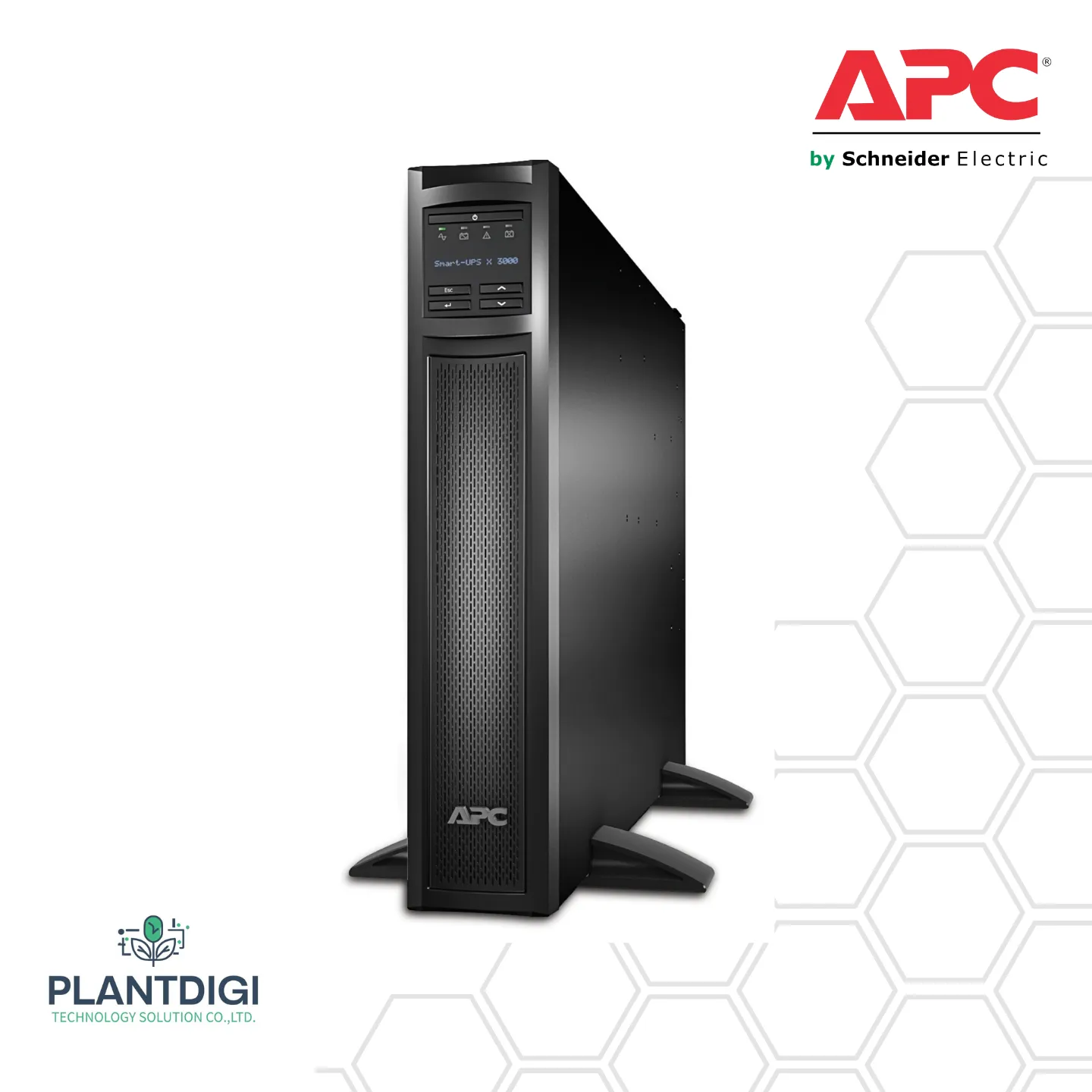

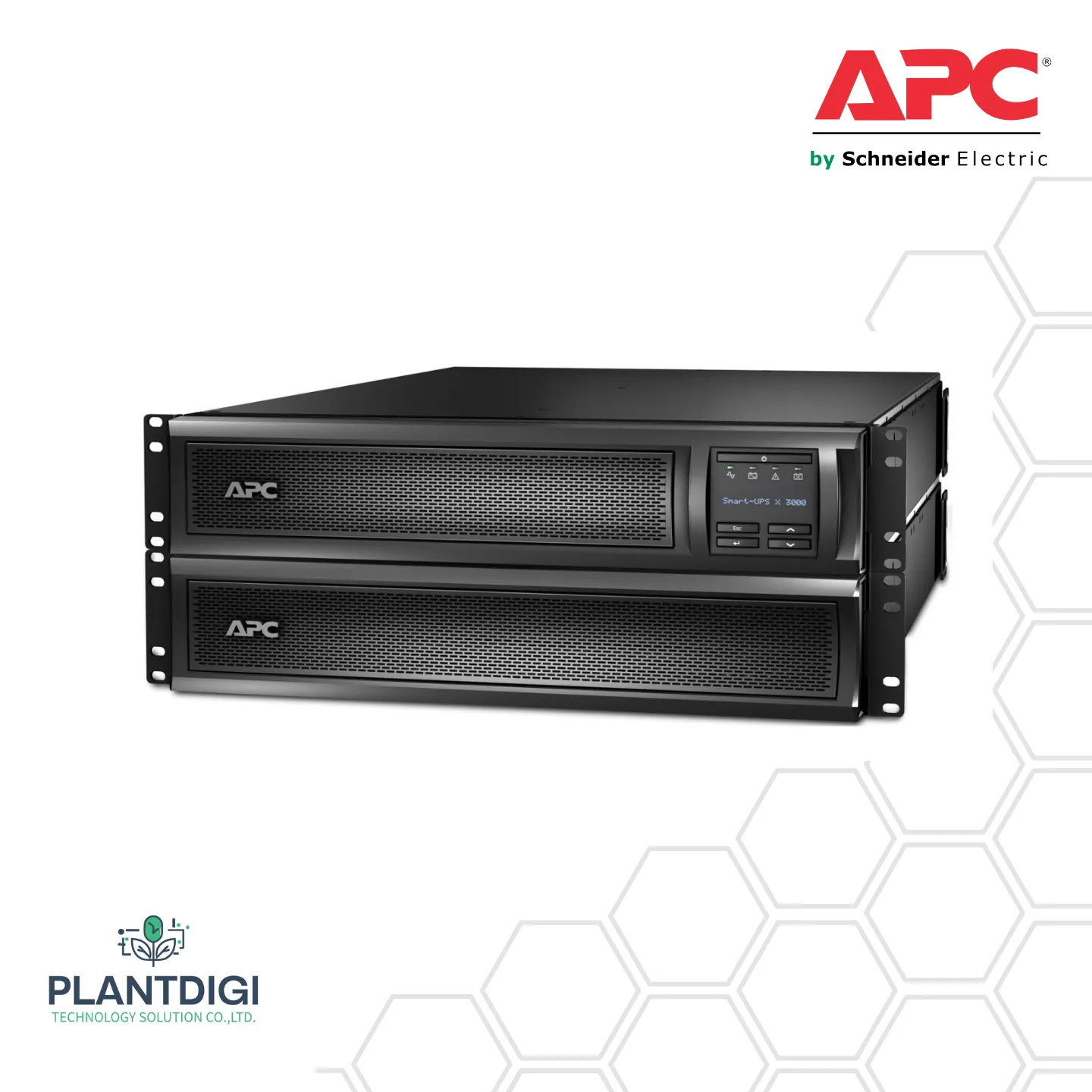

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime

———
Overview
———–
Presentation: Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Specifications

————-
Main
————–
รันไทม์สําหรับโหลด 2700 W
ต่ำสุด-สูงสุด: 270-2700 W 6min 15s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 208 V , 230 V
Other Input Voltage: 220 V , 240 V
Main Output Voltage: 230 V
Other Output Voltage: 208 V , 220 V, 240 V
Rated power in W: 2700 W
Rated power in VA: 3000 VA

Product or component type: Uninterruptible power supply (UPS)
Input Connection Type: IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British

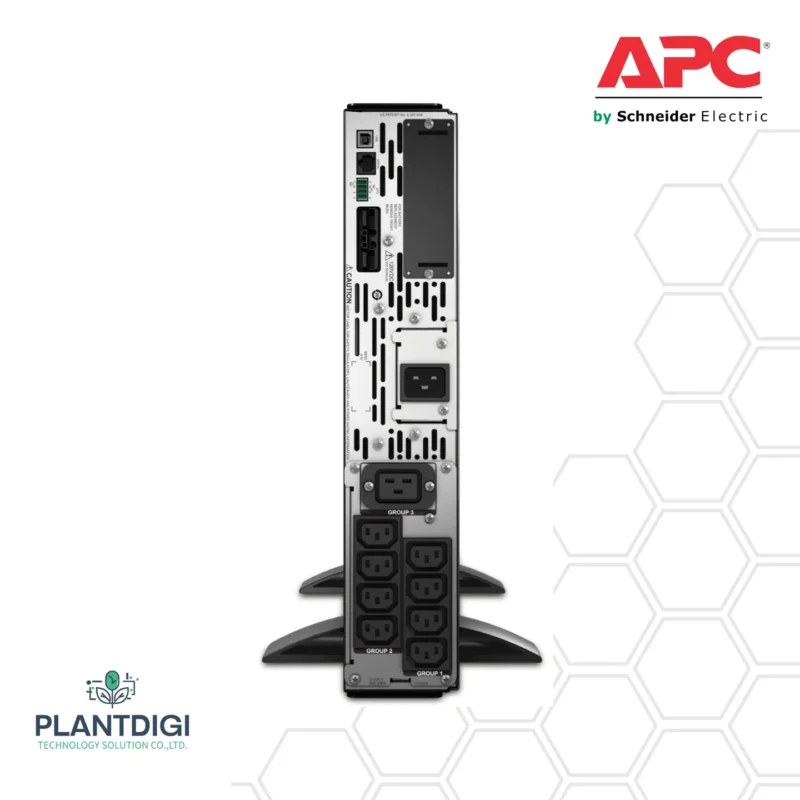

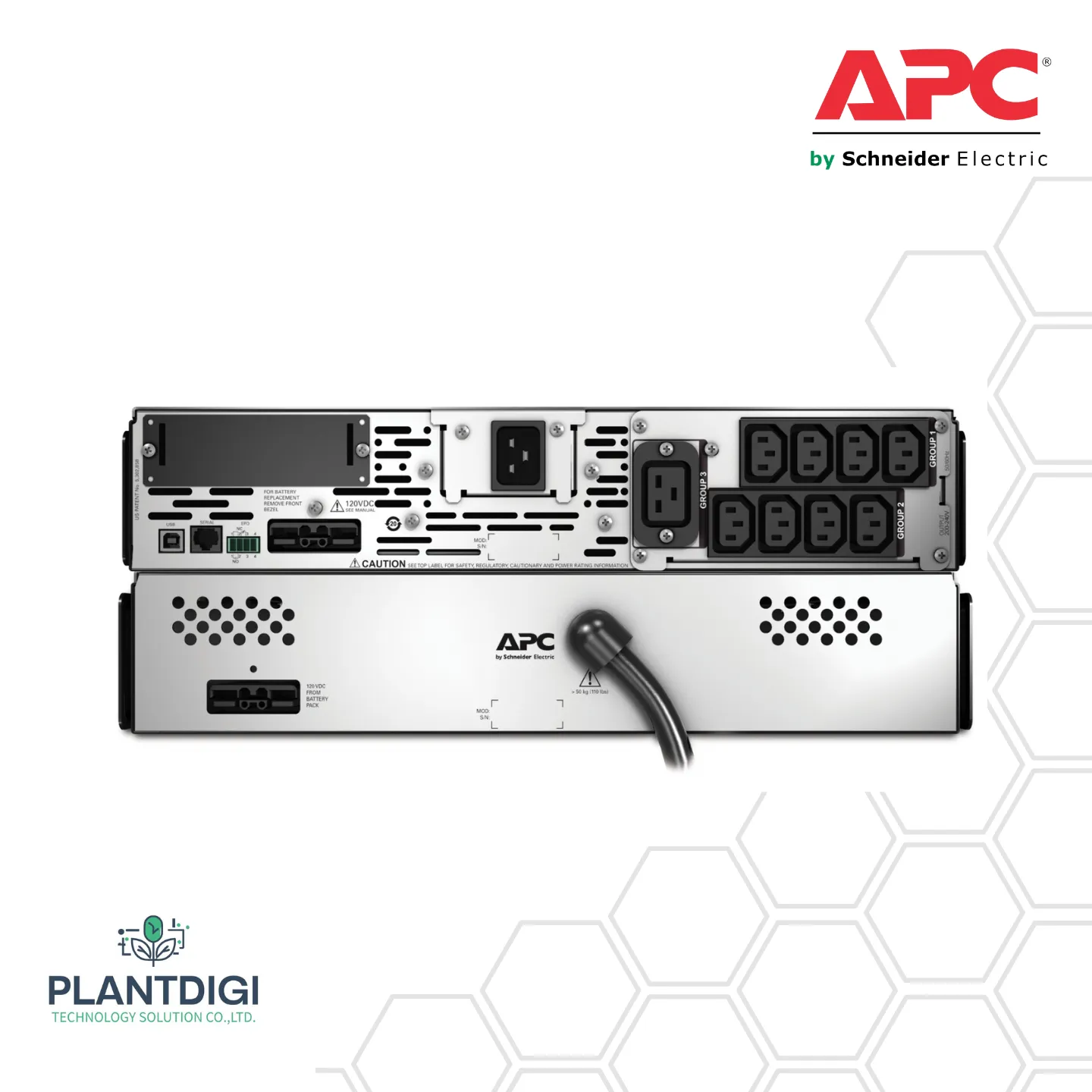

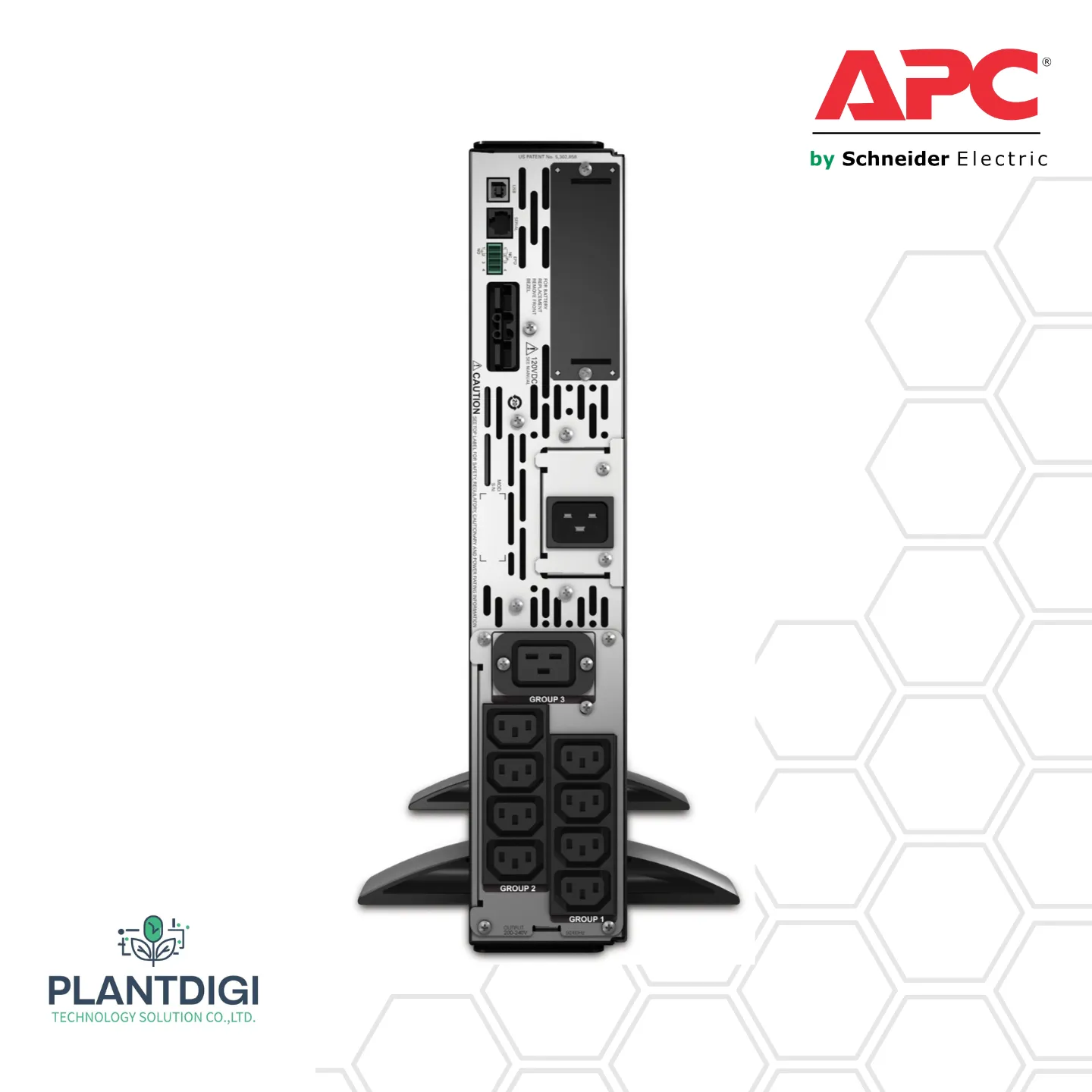

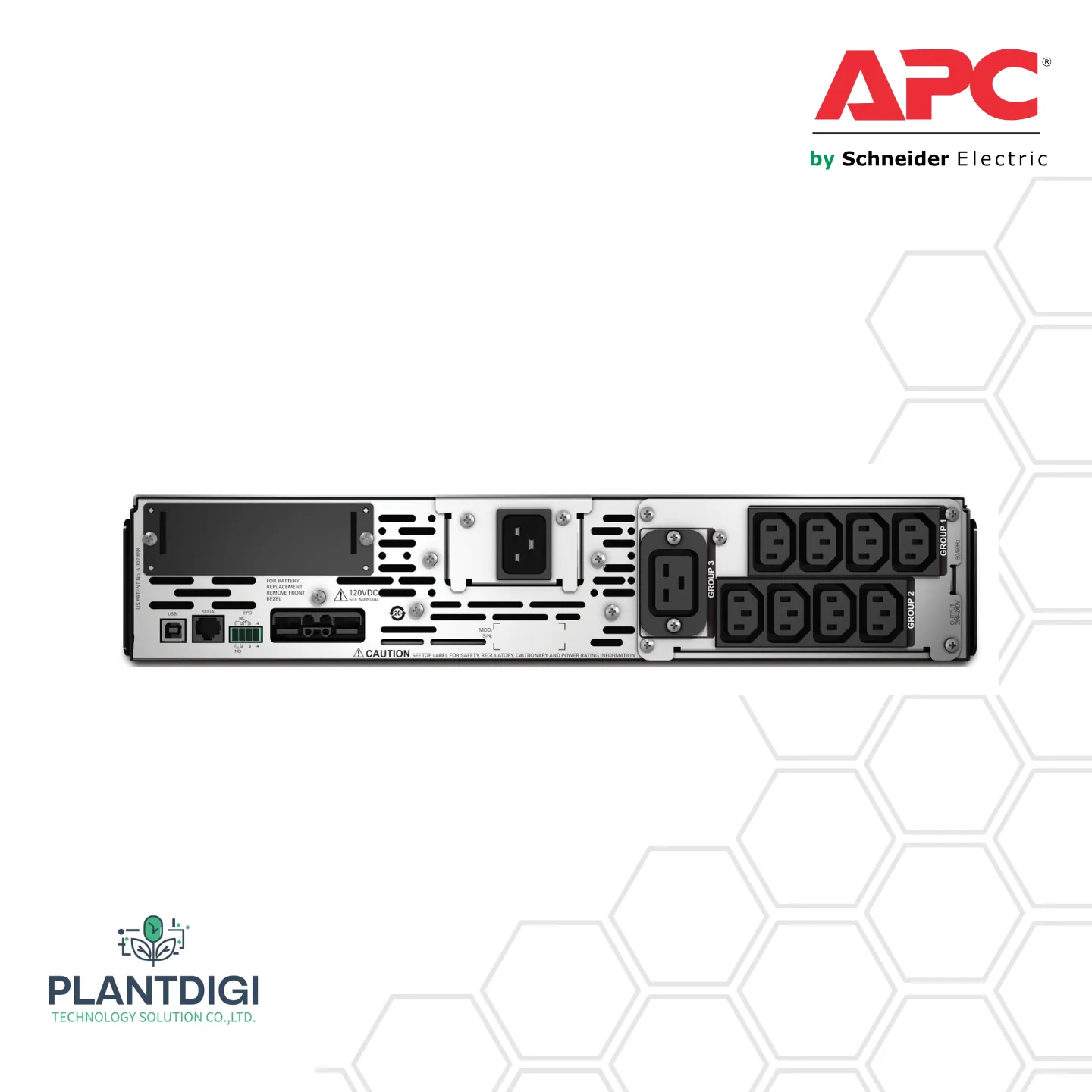

output connection type: 8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19
number of rack unit: 2U
Cable length: 1.8 m
Number of cables: 1
Battery type: Lead-acid battery
Provided equipment: CD with software, Documentation CD, Smart UPS signalling RS-232 cable, User manual, USB cable, Rack mounting brackets
Range of product: Smart-UPS

————-
Complementary
————-
Communication port type: SmartSlot

—————-
Batteries & Runtime
——————-
Extended runtime: 1
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 3 h
Number of battery replacement quantity: 1
Battery life: 3…5 year(s)
Replacement battery: APCRBC117
Battery charger power: 245 W rated

————-
General
————
Number of power module: 2400
Number of power module filled slots: 0
Number of power module free slots: 0
product web sub-family: Extended run
Redundant: No

———
Physical
———
Colour: Black
Height: 8.5 cm
Width: 43.2 cm
Depth: 66.7 cm
Net weight: 37.32 kg
mounting location: Front
Mounting preference: Lower
mounting mode: Rack-mounted
Two post mountable: 0
USB compatible: Yes

—–
Input
—–
Input voltage limits: 140…280 V
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing

——-
Output
——-
Crest factor: 3 : 1
Harmonic distortion: Less than 5 %
Maximum configurable power in VA: 3000 VA
Maximum configurable power in W: 2700 W
Transfer time: 2-4 ms , 6 ms typical : 10 ms maximum
UPS type: Line interactive
Wave type: Sine wave
Output frequency: 50/60 Hz +/- 3 Hz sync to mains

————
Conformance
————
Product certifications: CE, CSA, EAC, IRAM, RCM, VDE, UK PSTI
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

————-
Environmental
————-
acoustic level: 55 dBA
Heat dissipation: 184 Btu/h
Operating altitude: 0…10000 ft
Ambient air temperature for operation: 0…40 °C
Ambient air temperature for storage: -15…45 °C
Storage altitude: 0.0000000000…15240.0000000000 m
Relative humidity: 0…95 %
Storage Relative Humidity: 0…95 %

—————————-
Communications & Management
—————————-
Control panel: Multifunction LCD status and control console
Emergency power off: Yes
Free slots: 1
Control panel: LED status display with on line : on battery : replace battery and overload indicators
Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 645 J
Noise suppression: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 24.3 cm
Package 1 Width: 59.6 cm
Package 1 Length: 86.9 cm
Package 1 Weight: 45.36 kg
Unit Type of Package 2: PAL
Number of Units in Package 2: 8
Package 2 Height: 113 cm
Package 2 Width: 100 cm
Package 2 Length: 120 cm
Package 2 Weight: 362.88 kg
Pallet unit layers: 2
Pallet layers: 4

——————–
Contractual warranty
——————–
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
