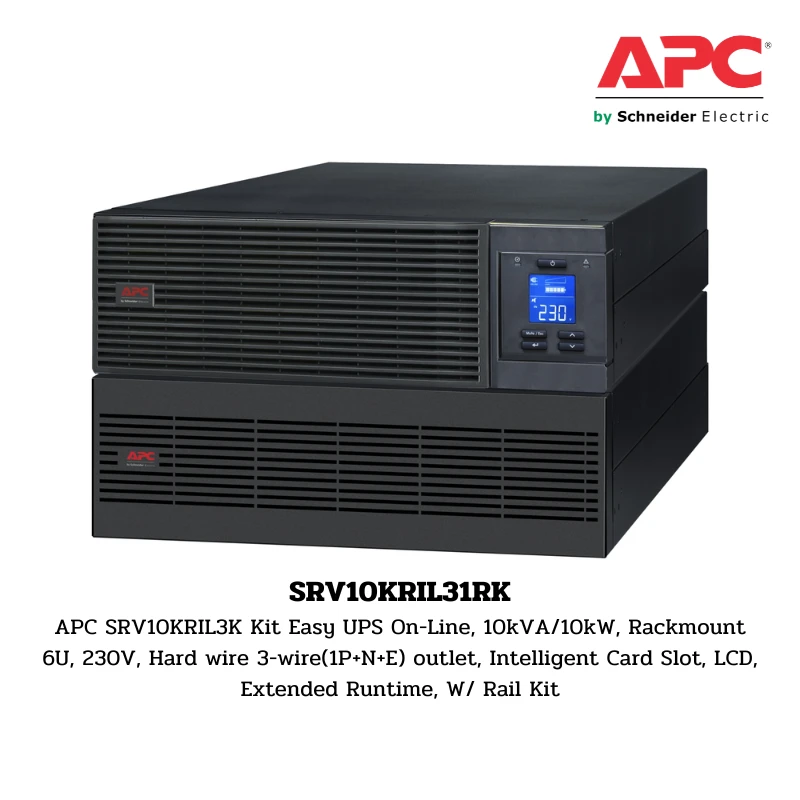

เครื่องสำรองไฟ UPS APC Easy UPS On-Line SRV รุ่น SRV10KRIL31RK
APC SRV10KRIL3K Kit Easy UPS On-Line, 10kVA/10kW, Rackmount 6U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit
เครื่องสำรองไฟ (UPS) แบบ On-Line Double Conversion ขนาด 10kVA/10kW จาก APC ออกแบบมาสำหรับงานที่ต้องการความเสถียรสูง เช่น Server, Data Center และอุปกรณ์สำคัญ รองรับการติดตั้งแบบ Rack ขนาด 6U พร้อมรองรับการต่อแบตเตอรี่เสริมเพื่อเพิ่มระยะเวลาสำรองไฟ และมีหน้าจอ LCD แสดงสถานะการทำงานอย่างละเอียด เหมาะสำหรับสภาพไฟฟ้าที่ไม่เสถียร
ข้อมูลจำเพาะ (Specification)
| รายการ | รายละเอียด (Description) |
|---|---|
| UPS Type | On-Line (Double Conversion) |
| Rated Power | 10000 W / 10000 VA |
| Input Voltage | 220 / 230 / 415 V |
| Input Voltage Range | 110–300 V (half load), 176–300 V (full load) |
| Input Frequency | 40–70 Hz (auto sensing) |
| Output Voltage | 220 / 230 / 240 V |
| Output Frequency | 50/60 Hz ±3 Hz |
| Waveform Type | Pure Sine Wave |
| Efficiency | Up to 94% (full load) |
| Battery Type | External Lead-acid |
| Battery Recharge Time | 6 hours |
| Battery Voltage | ±120 V |
| Expandable Battery | Up to 4 External Battery Packs |
| Runtime (Full Load) | Approx. 2 min 6 sec |
| Interface | LCD Display |
| Connectivity | USB, Serial Port |
| Expansion Slot | Yes (Intelligent Card Slot) |
| Output Connection | Hard wire 3-wire (1P+N+E) |
| Bypass | Internal (Automatic & Manual) |
| Form Factor | Rackmount (6U) |
| Dimensions (HxWxD) | 262 x 438 x 680 mm |
| Weight | 89 kg |
| Color | Black |
| Noise Level | 60 dBA |
| Operating Temperature | 0–40 °C |
| Humidity | 0–95% Non-condensing |
| Certification | CE, BIS, UKCA |
| Warranty | 24 Months |
