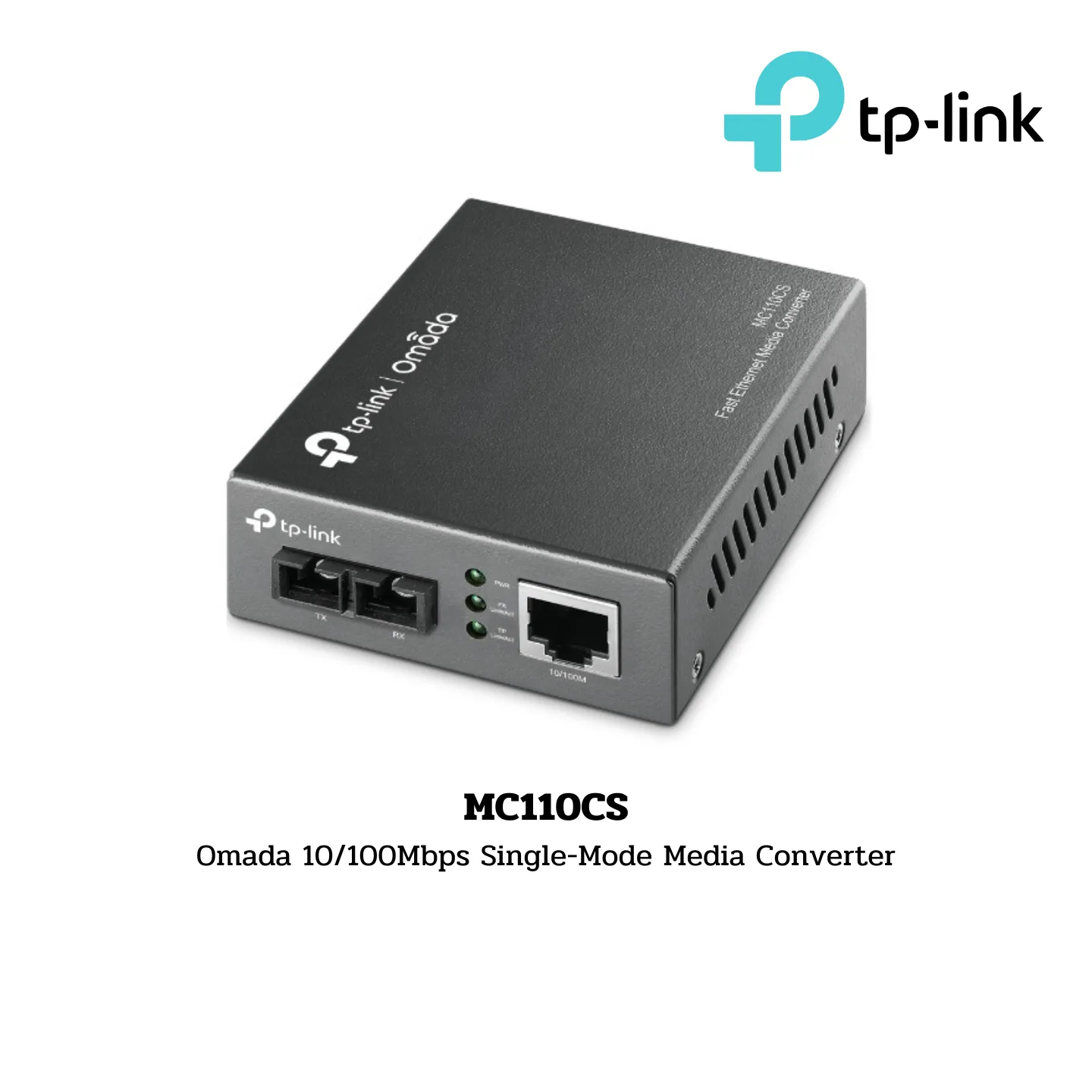

TP-Link Media Converter รุ่น MC110CS

MC110CS
Omada 10/100Mbps Single-Mode Media Converter

Brand:

• TP-Link

Port:

• 1× 100 Mbps SC Port
• 1× 10/100M RJ45 Port (Auto MDI/MDIX)

Specification:

• Full-duplex, Up to 20 km
• Chassis TL-MC1400 Rack-mountable

Media Converter & Module:

Standards and Protocols:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x

Basic Function:

• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Full Duplex Flow Control (IEEE 802.3x)
• Half Duplex Flow Control (Backpressure)
• Extends fiber distance up to 20 km

Ports:

• 1× 100M SC/UPC Port
• 1× 10/100M RJ45 Port (Auto MDI/MDIX)

Wave Length:

• 1310 nm

Network Media:

10BASE-T:

• UTP category 3, 4, 5 cable (maximum 100 m)
• EIA/TIA-568 100Ω STP (maximum 100 m)

100BASE-T:

• UTP category 5, 5e cable (maximum 100 m)
• EIA/TIA-568 100Ω STP (maximum 100 m)

100BASE-FX:

• Single-mode Fiber

LED Indicators:

• PWR, Link/Act

Dimensions (W x D x H):

• 3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm)

Power Supply:

• External power supply
• Max Power Consumption: 2.4W

Safety & Emission:

• FCC, CE, RoHS

Package Contents:

• MC110CS
• Power Adapter
• Installation Guide

Environment:

• Operating Temperature: 0℃~50℃ (32℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
