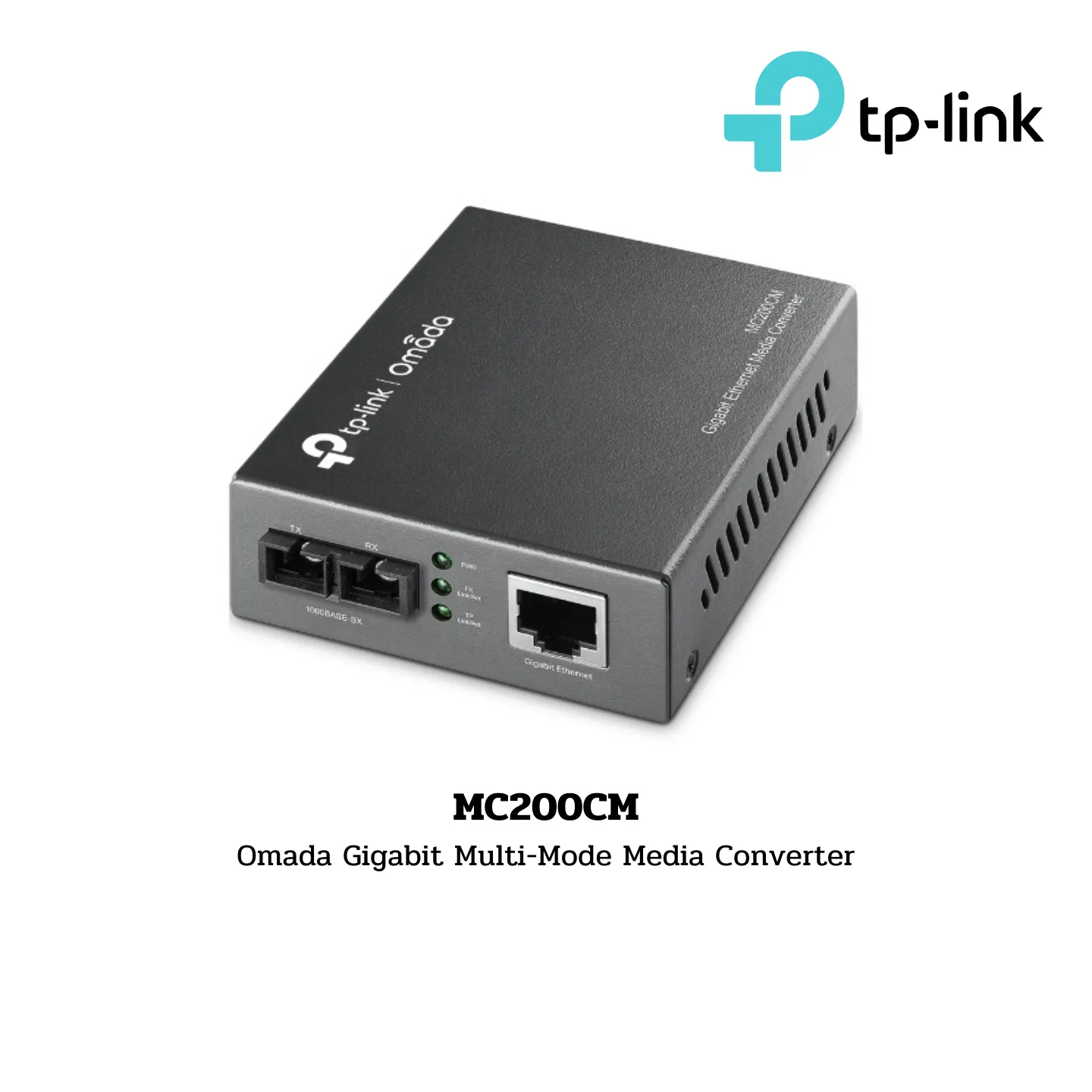

TP-Link อุปกรณ์แปลงสัญญาณสื่อ MC200CM Omada Gigabit Multi-Mode Media Converter

MC200CM
Omada Gigabit Multi-Mode Media Converter

Brand:

• TP-Link

Port:

• 1× Gigabit SC Port
• 1× Gigabit RJ45 Port (Auto MDI/MDIX)

Specification:

• Full-duplex, Up to 550 m
• Chassis TL-MC1400 Rack-mountable

Media Converter & Module:

Standards and Protocols:

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z

Basic Function:

• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Extends fiber distance up to 0.55 km using 50/125 um fiber
• Extends fiber distance up to 0.22 km using 62.5/125 um fiber

Ports:

• 1× 1000M SC/UPC Port
• 1× 10/100/1000M RJ45 Port (Auto MDI/MDIX)

Wave Length:

• 850 nm

Network Media:

1000BASE-SX:

• Multi-mode Fiber

1000BASE-T:

• UTP category 5, 5e cable (maximum 100 m)
• EIA/TIA-568 100Ω STP (maximum 100 m)

LED Indicators:

• PWR, Link/Act

Dimensions (W x D x H):

• 3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm)

Power Supply:

• External Power Adapter
• Max Power Consumption: 1.66W

Safety & Emission:

• FCC, CE, RoHS

Package Contents:

• MC200CM
• Power Adapter
• Installation Guide

Environment:

• Operating Temperature: 0℃~50℃ (32℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
