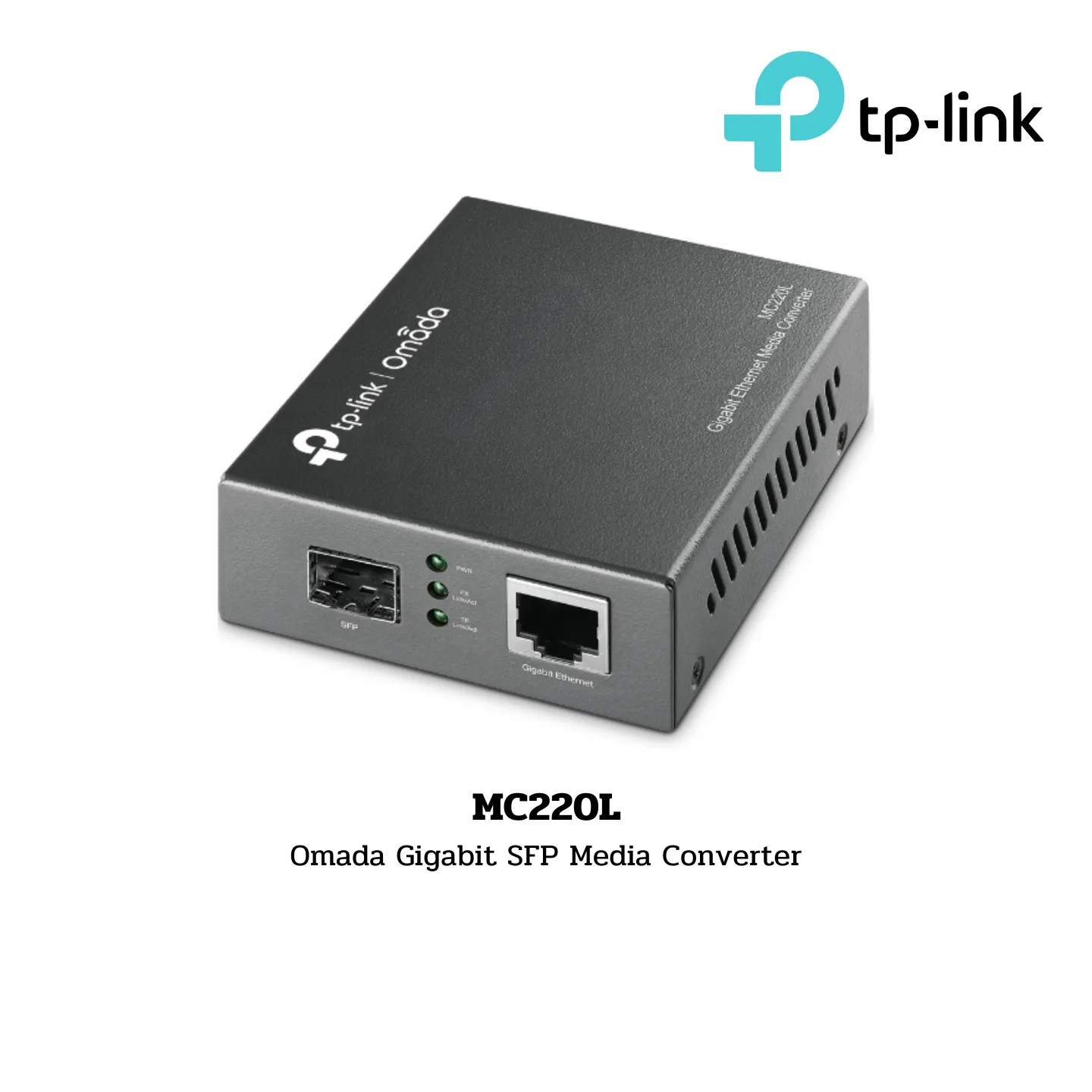

TP-Link Media Converter รุ่น MC220L

MC220L
Omada Gigabit SFP Media Converter

Brand:

• TP-Link

Port:

• 1× Gigabit SFP Slot
• 1× Gigabit RJ45 Port (Auto MDI/MDIX)

Specification:

• Chassis TL-MC1400 Rack-mountable

Media Converter & Module:

Standards and Protocols:

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z

Basic Function:

• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Maximum transmission distance depends on the inserting SFP module

Ports:

• 1× 1000M SFP Port
• 1× 10/100/1000M RJ45 Port (Auto MDI/MDIX)

Wave Length:

• Depends on the used SFP module

Network Media:

1000BASE-X:

• Multi-mode/Single-mode SFP module

1000BASE-T:

• UTP category 5, 5e cable (maximum 100 m)
• EIA/TIA-568 100Ω STP (maximum 100 m)

LED Indicators:

• PWR, Link/Act

Dimensions (W x D x H):

• 3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm)

Power Supply:

• External Power Adapter
• Max Power Consumption: 1.7W

Safety & Emission:

• FCC, CE, RoHS

Package Contents:

• MC220L
• Power Adapter
• Installation Guide

Environment:

• Operating Temperature: 0℃~50℃ (32℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
