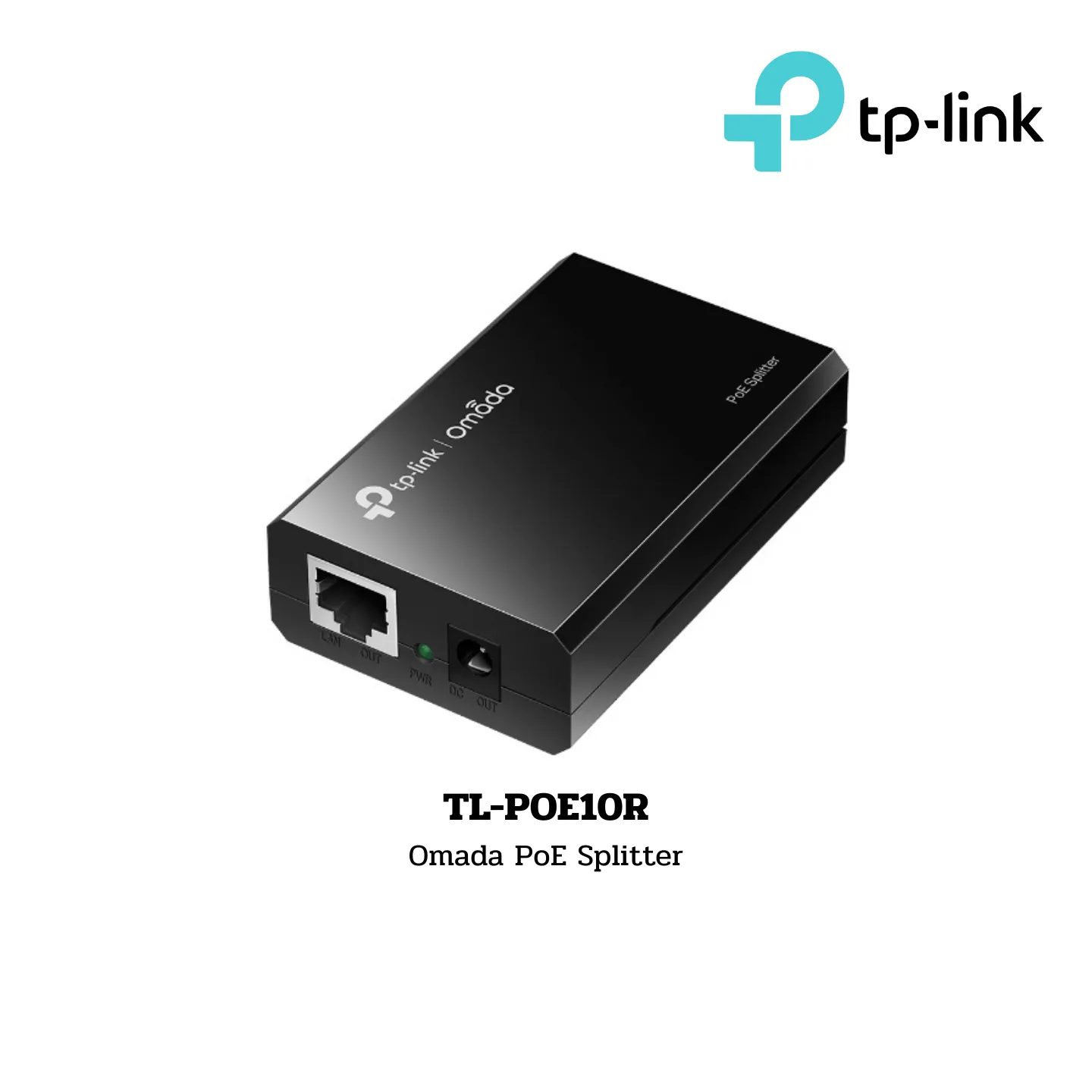

TL-POE10R
Omada PoE Splitter
Brand:
- TP-Link
Compliance:
- IEEE 802.3af compliant
Functionality:
- Data and power carried over the same cable up to 100 meters
- 5V/9V/12V power output
- Plastic case, pocket size, plug and play
Hardware Features:
Interface:
- 2× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- 1× Power Output Port
Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), EIA/TIA-568 100Ω STP (Max 100m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100m), EIA/TIA-568 100Ω STP (Max 100m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply: 12VDC 1A, 9VDC 1A, 5VDC 2A
Basic Function:
- Compatible With IEEE 802.3af Compliant PSEs
- Delivers Power Up To 100 Meters
- Optional 12VDC, 9VDC or 5VDC Power Output
LED Indicator: PWR
Dimensions (W x D x H): 3.2×2.1×0.9 in. (80.8×54×24 mm)
Software Features:
Basic Function:
- Compatible With IEEE 802.3af Compliant PSEs
- Delivers Power Up To 100 Meters
- Optional 12VDC, 9VDC or 5VDC Power Supply
Others:
Certification: FCC, CE, RoHS
Package Contents:
- POE10R
- Power Cord
- Installation Guide
Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
