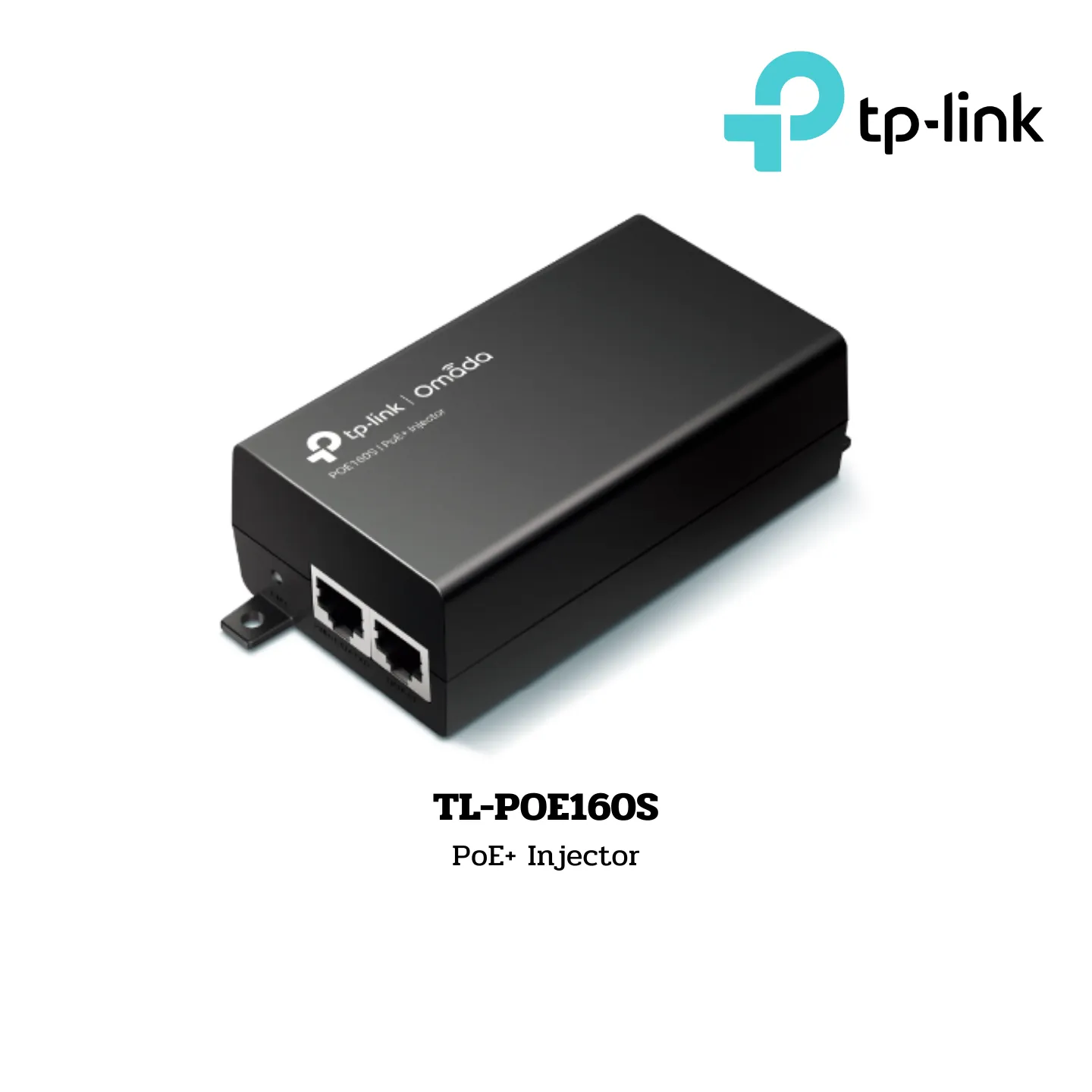

TL-POE160S
PoE+ Injector
Brand:
- TP-Link
Port:
- 1× Gigabit PoE Port
- 1× Gigabit Non-PoE Port
Specification:
- 802.3at/af Compliant
- Data and Power Carried over The Same Cable Up to 100 Meters
- Plastic Case, Pocket Size
Hardware Features:
Standards and Protocols:
- IEEE802.3i
- IEEE802.3u
- IEEE802.3ab
- IEEE802.3af
- IEEE802.3at
Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m), EIA/TIA-568 100Ω STP (maximum 100 m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100 m), EIA/TIA-568 100Ω STP (maximum 100 m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100 m)
Ports:
- 1× 10/100/1000Mbps RJ45 data-in port
- 1× 10/100/1000Mbps RJ45 power+data-out port
- 1× AC socket
Power Consumption:
- Input: 100-240 V, 50/60 Hz
- Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function:
- Auto-Sensing Algorithm enables providing power with 802.3af/at PD
- Auto-determine the necessary power requirements
- Wall-mounting and desktop installation supported
- Plug-and-Play
LED Indicator: Power / PoE
Dimensions (W x D x H): 4.9×2.3×1.4 in (125×59.4×36.8 mm)
Others:
Certification: FCC, CE, RoHS
Package Contents:
- POE160S
- Installation Guide
- Power Cord
- Wall Mounting Kits
Environment:
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 10% to 90%RH non-condensing
- Storage Humidity: 5% to 90%RH non-condensing
