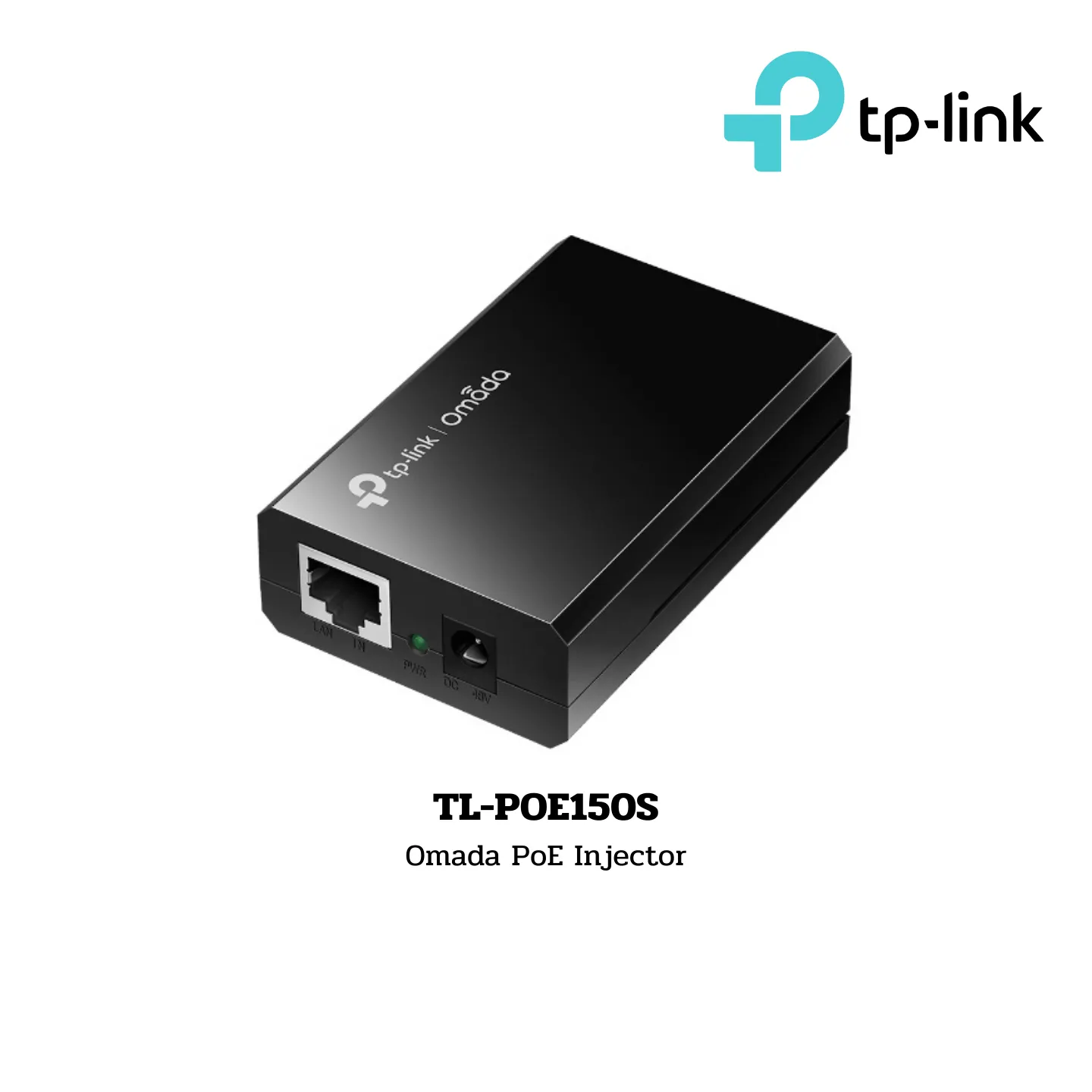

TL-POE150S
Omada PoE Injector
Brand:
- TP-Link
Port:
- 1× Gigabit PoE Port
- 1× Gigabit Non-PoE Port
Specification:
- 802.3af Compliant
- Data and Power Carried over The Same Cable Up to 100 Meters
- Plastic Case, Pocket Size
Hardware Features:
Interface:
- 2× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- 1× 48VDC Power Input Port
Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), EIA/TIA-568 100Ω STP (Max 100m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100m), EIA/TIA-568 100Ω STP (Max 100m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply: 15.4W (Max. 48VDC)
LED Indicator: PWR
Dimensions (W x D x H): 3.2×2.1×0.9 in. (80.8×54×24 mm)
Software Features:
Basic Function:
- Compatible With IEEE 802.3af Compliant PDs
- Delivers Power Up To 100 Meters
- Auto-determine the necessary power requirements
Others:
Certification: FCC, CE, RoHS
Package Contents:
- POE150S
- Power Adapter
- Installation Guide
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux
Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
