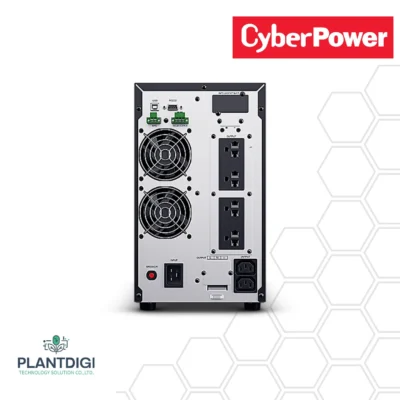

เครื่องสำรองไฟ CyberPower OLS3000EA 3000VA/2700W OLS Series (TOWER)
฿23,090.00
OLS3000EA UPS OLS Tower 3000VA/2700W
2-yrs onsite with battery
***กรณีสั่งซื้อกับทางเราสามารถแจ้งเคลมผ่านกับเราได้เลย
ติดต่อเราเพื่อสั่งซื้อ สอบถาม หรือขอใบเสนอราคา
โทร : 02-140-0892
มือถือ : 089-314-3423
Line ID : @plantdigi
Email : info@plantdigi.com
Available on backorder
CyberPower OLS3000EA
UPS OLS Tower 3000VA/2700W
CyberPower Online S (Advanced) TRUSTWORTHY ONLINE UPS TO SAFEGUARD DATA CENTER The high-performance online double-conversion UPS that offers reliable power protection
——–
General
——–
Phase: Single Phase
Form Factor: Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: ECO Mode Efficiency > 95%
Active PFC Compatibility: Yes
——
Input
——
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): 230 ± 10%
Input Voltage Range ( Vac ): 190 ~ 300
Adjustable Voltage Range ( Vac ): 0~50% Load for 110 ~ 300 Vac, 0~60% Load for 140 ~ 300 Vac, 0~80% Load for 160 ~ 300 Vac, 0~100% Load for 190 ~ 300 Vac
Input Frequency ( Hz ): 50 ± 10, 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 13.04
Input Power Factor: 0.98
Input Connector Type: IEC C20
Detachable Power Cord Plug Type: NEMA 5-15P x 1
Power Cord Length (ft.): 5
Power Cord Length (m.): 1.5
——-
Output
——-
Capacity (VA): 3000
Capacity (Watts): 2700
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 208 ± 1 %, 220 ± 1 %, 230 ± 1 %, 240 ± 1 %
Output Voltage Setting: Configurable
On Battery Frequency ( Hz ): 50 ± 0.5%, 60 ± 0.5%
Output Frequency Setting: Configurable
Power Factor: 0.9
ECO Mode Voltage Tolerance: ± 15 %
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode): 110~120% Load for 1 min, >120% Load Immediately
Overload Protection (Battery Mode): 110~120% Load for 10 sec, >120% Load Immediately
Overload Protection (Bypass Mode): >130% Load Immediately
Crest Factor: 3 : 1
Harmonic Distortion (Linear Load): THD＜3%
Harmonic Distortion (Non-linear Load): THD＜5%
Internal Bypass: Automatic Bypass, Manual Bypass
Outlet(s) – Total: 7
Outlet Type: AS x 4, Hardwire Terminal Block x 1, IEC C13 x 2
Outlet(s) – Battery & Surge Protected: 7
Typical Transfer Time ( ms ): 0
——–
Battery
——–
Runtime at Half Load ( min ): 13.1
Runtime at Full Load ( min ): 4.2
Typical Recharge Time ( Hours ): 4
Maximum Charging Current ( A ): 1.5
Start On Battery: Yes
Smart Battery Management (SBM): Yes
User-replaceable: No
Battery Type: Sealed Lead-acid
Compatible Extended Battery Module (EBM): BPSE72V40A
Max. EBM Quantity ( pcs ): 3
——————————
Surge Protection & Filtering
——————————
Surge Suppression ( Joules ): 370
EMI/RFI Filtration: Yes
—————————-
Management & Communications
—————————-
LCD Panel: Yes
LCD Types: Color LCD
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, HID Compliant USB Port(s): 1
Serial Port: RS232
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cable ( pcs ): Power Cord x1, USB Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes – with optional RMCARD205
———
Physical
———
Enclosure Construction: Metal
Color: Black
—————————
Physical Size – UPS Module
—————————
Dimensions (WxHxD) (in.): 7.72 x 12.27 x 16.38
Dimensions (WxHxD) (mm.): 196 x 337 x 416
Weight (lbs.): 57.2
Weight (kg.): 26
————–
Environmental
————–
Operating Temperature (°F): 32 ~ 104
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ): 20 ~ 90
Operating Elevation ( feet/meters ): 0-4,921 feet (0-1,500 meters)
Storage Temperature (°F): -4 ~ 122
Storage Temperature (°C): -20 ~ 50
Storage Relative Humidity (Non-condensing) ( % ): 10 ~ 90
Storage Elevation ( feet/meters ): 0-4,921 feet (0-1,500 meters)
Online Thermal Dissipation ( BTU/hr ): 1023
Variable Speed Fans: 20 steps automatically
—————
Certifications
—————
Certifications: CE
RoHS: Yes
———
WARRANTY
———
Product Warranty Period (Year): 2
Battery Warranty Period (Year): 2
