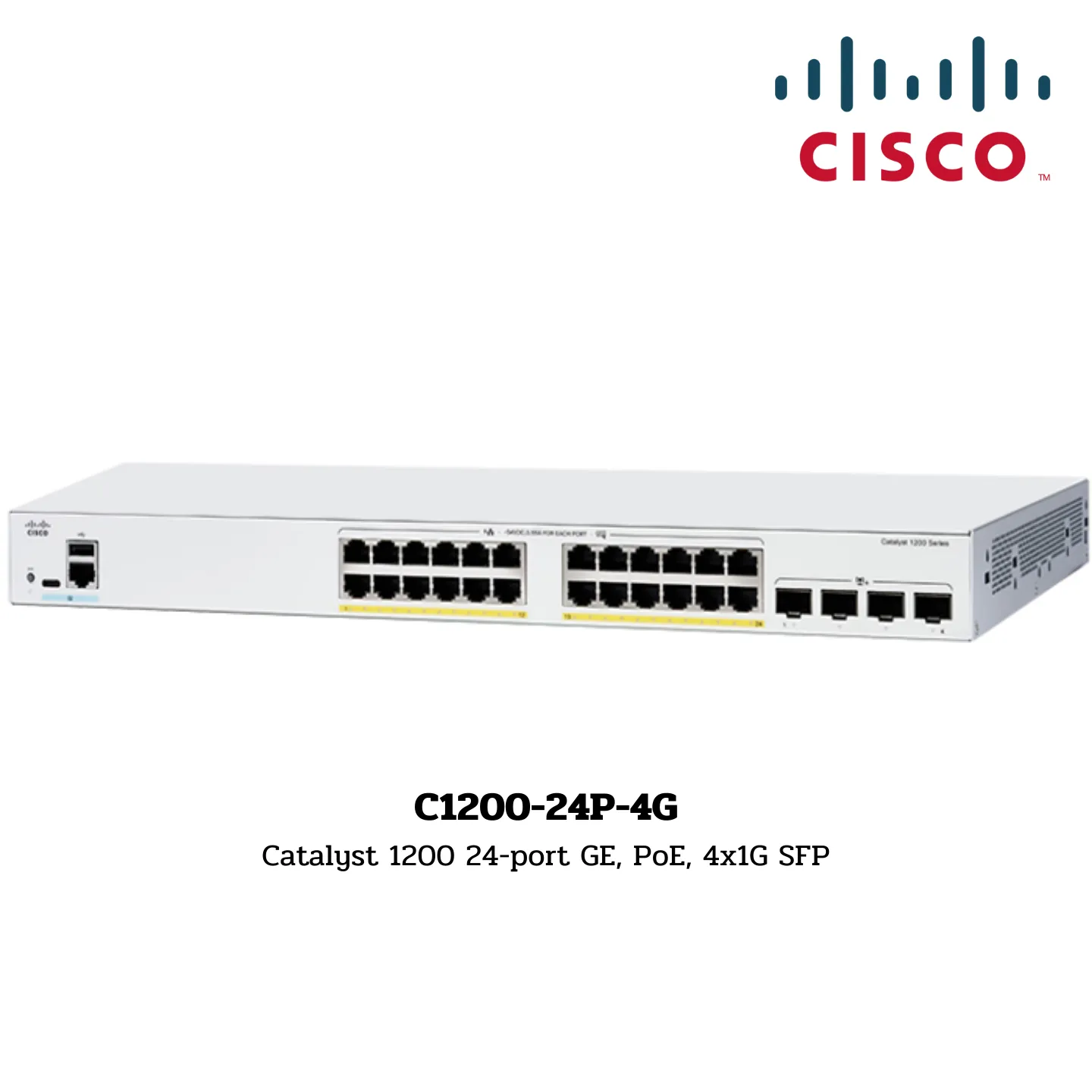

Switch Cisco Catalyst รุ่น C1200-24P-4G

C1200-24P-4G
Catalyst 1200 24-port GE, PoE, 4x1G SFP

The Cisco Catalyst C1200-24P-4G is a reliable, high-performance managed switch designed for small to medium-sized businesses. Here’s an overview and its key features:

Overview

The Catalyst 1200 Series 24-port GE with PoE and 4x1G SFP is an enterprise-grade switch providing robust network connectivity and management capabilities. It supports Power over Ethernet (PoE) to deliver power and data over the same cable. This switch ensures high-speed data transfer and advanced security features.

Key Features:

• Port Configuration: 24 x Gigabit Ethernet (10/100/1000) PoE+ ports.
• Uplink Ports: 4 x 1 Gigabit SFP ports.
• PoE Power Budget: Supports up to 195W, providing sufficient power for multiple PoE devices.
• Switching Capacity: Offers up to 56 Gbps of switching capacity, ensuring efficient data handling.
• Forwarding Rate: 41.66 Mpps (Million packets per second).
• Security: Includes features like Access Control Lists (ACLs) and secure port connectivity to protect the network.
• Energy Efficiency: Complies with Energy Efficient Ethernet (EEE) standards, which helps reduce power consumption.

Specifications:

Model:

• C1200-24P-4G

I/O Ports and Slots:

• 24 x Gigabit Ethernet
• 4 x SFP

Memory and Processor:

• Dual-core ARM at 1.4 GHz
• 1 GB DDR4

Throughput:

• 41.66 Mbps

Switch Capacity:

• 56 Gbps

AC Voltage:

• 110V: 25.9W – 235.2W
• 220V: 27.5W – 230.8W

PoE Capability:

• 195W

Dimensions:

• 445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in)

Weight:

• 3.53 kg (7.78 lb)
