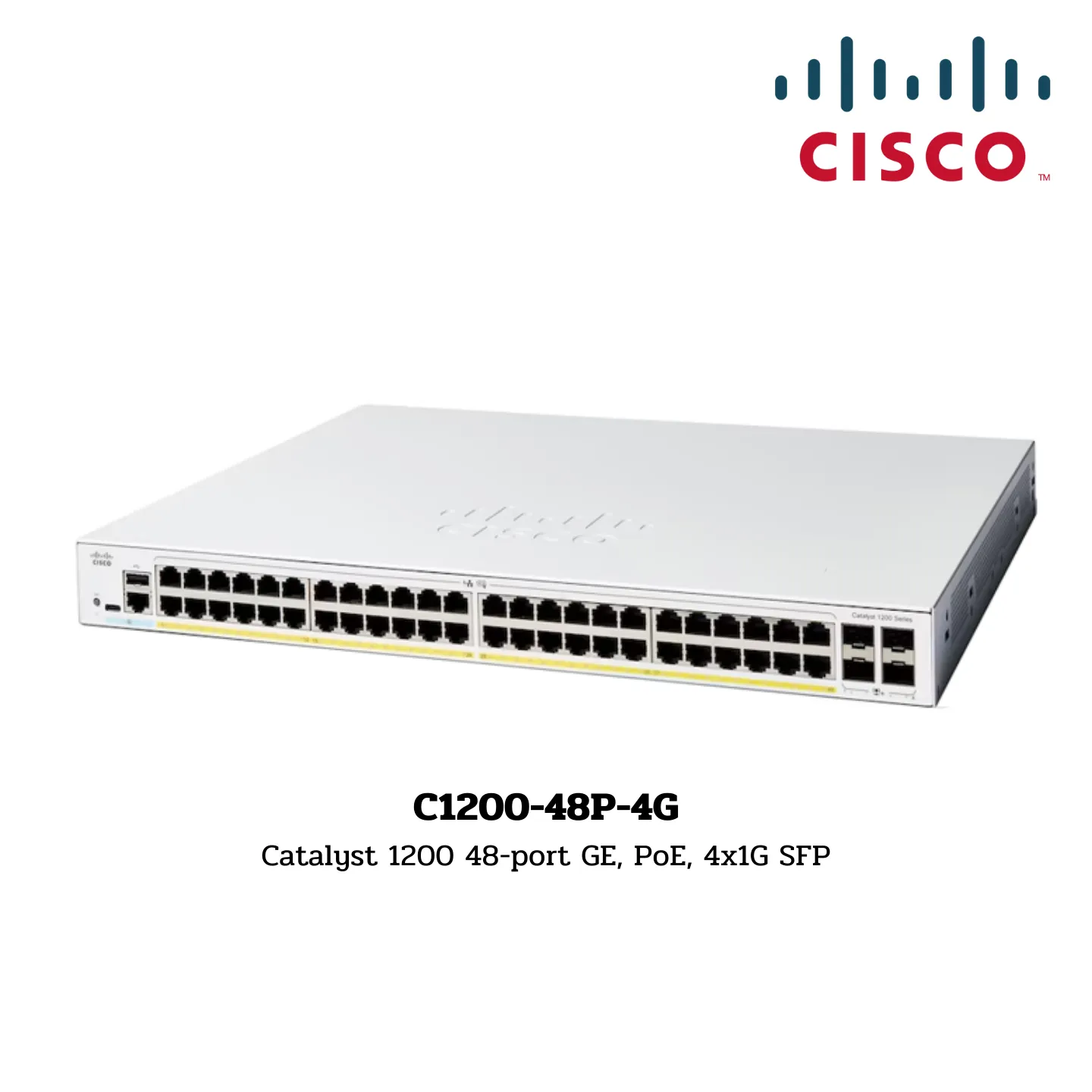

Switch Cisco Catalyst รุ่น C1200-48P-4G

C1200-48P-4G
Catalyst 1200 48-port GE, PoE, 4x1G SFP

The Cisco Catalyst C1200-48P-4G is a high-performance, managed switch designed specifically for small to medium-sized business environments. Here’s an overview and its key features:

Overview

This switch from the Cisco Catalyst 1200 Series provides robust network connectivity with Power over Ethernet (PoE) capabilities, which means it can deliver power and data over the same Ethernet cable. The model features 48 Gigabit Ethernet ports and 4 x 1 Gigabit SFP ports, making it ideal for setting up high-speed networks with various devices.

Key Features

• Port Configuration: 48 x Gigabit Ethernet (10/100/1000) PoE+ ports.
• Uplink Ports: 4 x 1 Gigabit SFP ports.
• PoE Power Budget: Supports up to 375W, enough to power numerous PoE devices.
• Switching Capacity: Offers up to 104 Gbps, ensuring efficient data handling.
• Forwarding Rate: 77.38 Mpps (Million packets per second).
• Layer 3 Capabilities: Basic routing functionalities, including VLAN management and static routing.
• Security Features: Includes Access Control Lists (ACLs) and secure port connectivity to protect network integrity.
• Energy Efficiency: Complies with Energy Efficient Ethernet (EEE) standards to reduce power consumption.

Specifications:

Model:

• C1200-48P-4G

I/O Ports and Slots:

• 48 x Gigabit Ethernet
• 4 x SFP

Memory and Processor:

• Dual-core ARM at 1.4 GHz
• 1 GB DDR4

Throughput:

• 77.38 Mbps

Switch Capacity:

• 104 Gbps

AC Voltage:

• 110V: 44.81W – 450.65W
• 220V: 43.93W – 437.14W

PoE Capability:

• 375W

Dimensions:

• 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)

Weight:

• 5.43 kg (11.97 lb)
