Switch Cisco Catalyst รุ่น C1200-48P-4X

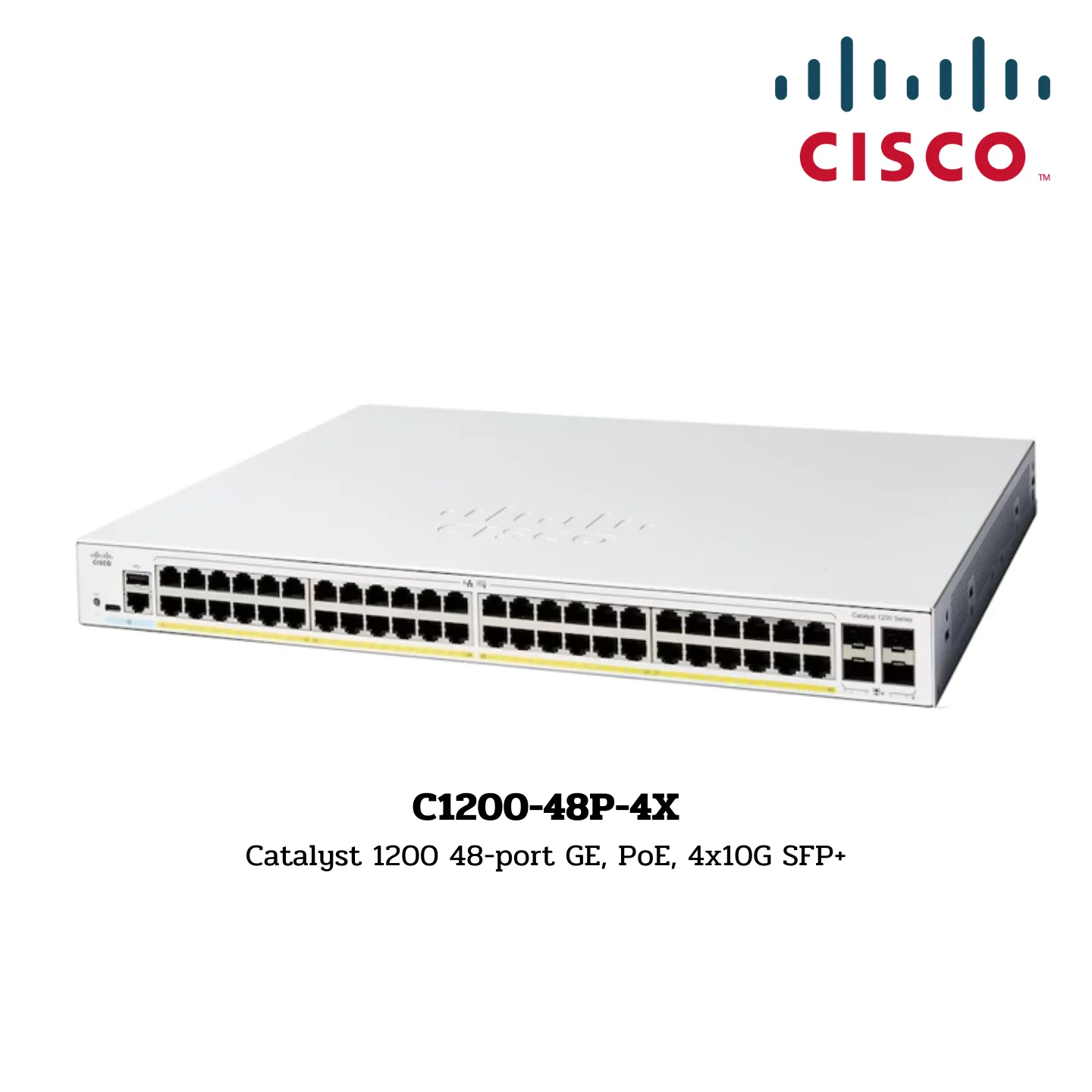

C1200-48P-4X
Catalyst 1200 48-port GE, PoE, 4x10G SFP+

The Cisco Catalyst C1200-48P-4X is a high-performance managed switch designed for small to medium-sized business environments. Here’s an overview and its key features:

Overview

The Catalyst 1200 Series 48-port GE with PoE and 4x10G SFP+ is an enterprise-grade switch providing high-speed connectivity and advanced features. It supports Power over Ethernet (PoE) to power devices like IP phones, access points, and surveillance cameras. This switch is built for efficient data handling and secure networking.

Key Features:

• Port Configuration: 48 x Gigabit Ethernet (10/100/1000) PoE+ ports.
• Uplink Ports: 4 x 10 Gigabit SFP+ ports.
• Switching Capacity: Up to 176 Gbps, ensuring efficient data transfer and handling.
• Forwarding Rate: 130.94 Mpps (Million packets per second).
• PoE Power Budget: Supports up to 375W, providing sufficient power for connected PoE devices.
• Layer 3 Capabilities: Provides basic routing features including VLAN management and static routing.
• Advanced Security: Features Access Control Lists (ACLs), secure port connectivity, and more to protect network integrity.
• Energy Efficiency: Complies with Energy Efficient Ethernet (EEE) standards to reduce power consumption.
• Management: Managed via Cisco Business Dashboard and Cisco Business mobile app, providing intuitive setup and monitoring.

Specifications:

Model:

• C1200-48P-4X

I/O Ports and Slots:

• 48 x Gigabit Ethernet
• 4 x SFP+

Memory and Processor:

• Dual-core ARM at 1.4 GHz
• 1 GB DDR4

Throughput:

• 130.94 Mbps

Switch Capacity:

• 176 Gbps

AC Voltage:

• 110V: 47.44W – 462.84W
• 220V: 47.03W – 449.48W

PoE Capability:

• 375W

Dimensions:

• 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)

Weight:

• 5.43 kg (11.97 lb)
