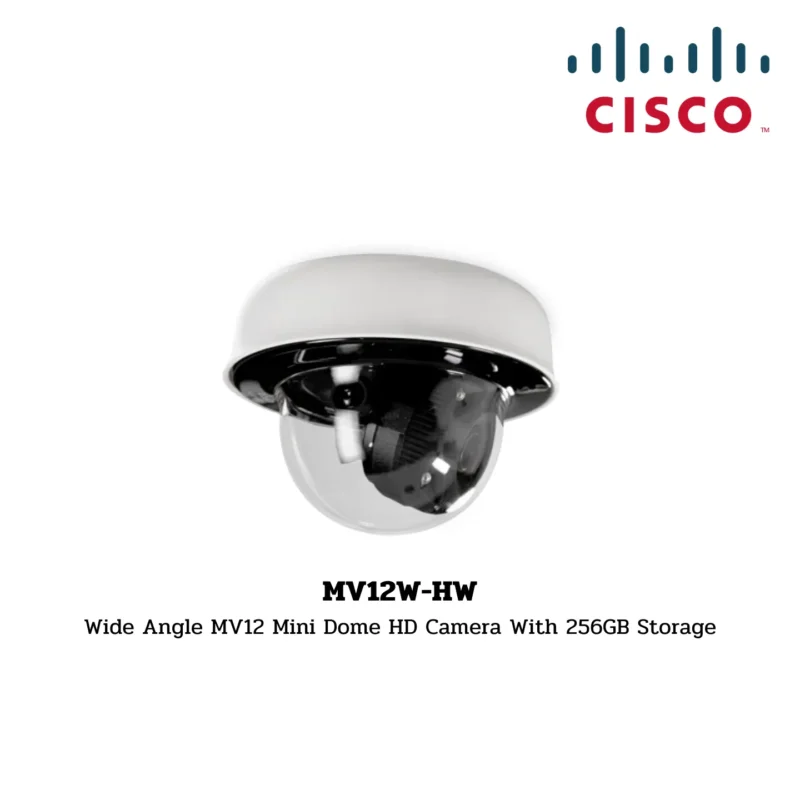

Cisco Meraki Camera Mini Dome รุ่น MV12W-HW

MV12W-HW
Wide Angle MV12 Mini Dome HD Camera With 256GB Storage

• Camera:

  • Image Sensor: 1/3” 4MP (2688×1520) progressive CMOS
  • Storage: 256GB high endurance solid state
  • Lens: 2.8mm fixed focal length, f/1.8 aperture
  • Field of View:
    • Horizontal: 114°
    • Vertical: 61°
    • Diagonal: 132°
  • Shutter Speed: 1/30s to 1/32,000s
  • Illumination: Minimum 0.18 Lux (standard) and 0.01 Lux (night mode), built-in IR illuminators effective up to 15m (49ft)

  Video:

  • Resolution: 1080p HD (1920×1080) with H.264 encoding, up to 20fps
  • Storage: Cloud augmented edge storage
  • Retention: Up to 40 days per camera
  • Streaming: Direct live streaming without client software, automatic cloud proxy
  • HDR: High Dynamic Range

  Data Security:

  • Encryption: Full disk encryption (AES 256-bit), TLS certificates, two-factor authentication

  Networking:

  • Ethernet: 1x 10/100/1000 Base-T (RJ45)
  • WLAN: Dual band (2.4GHz and 5GHz), 802.11 a/b/g/n/ac

  Features:

  • Management: Cloud managed via Meraki dashboard, plug and play deployment
  • Transition: Dynamic day-to-night with IR illumination
  • Motion Detection: Noise optimized motion indexing, motion alerts, motion heat maps

  Power:

  • Consumption: 12.95W maximum via 802.3af PoE

  Environment:

  • Temperature: 0°C to 40°C (32°F to 104°F)

  Physical Characteristics:

  • Dimensions: 106mm x 74mm (diameter x height)
  • Weight: 286g
  • Connector: Female RJ45 Ethernet
  • Other: Multicolor status LED, reset button

  In the Box:

  • Quick start guide, camera hardware, wall mounting kit

สอบถามค่าติดตั้ง Service Installation
