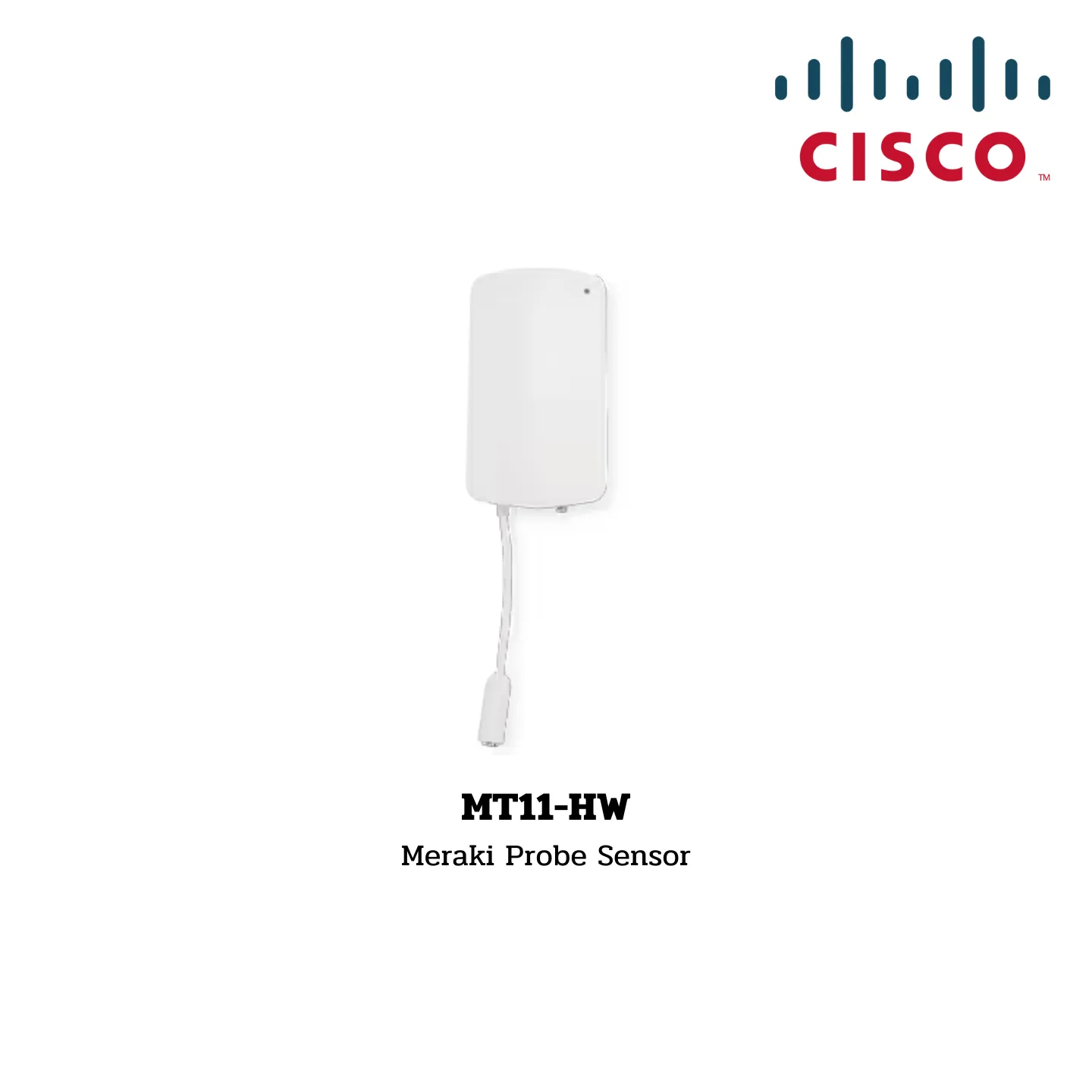

MT11-HW
Meraki Probe Sensor
Specifications
Temperature Probe Sensors:
- Bare Metal Temperature Probe:
- Cable Length: 10 ft
- Range: -40°C to +55°C (-40°F to +131°F)
- Accuracy:
- -40°C to -30°C: +/- 2°C
- -30°C to -10°C: +/- 1°C
- -10°C to +55°C: +/- 0.5°C
- Glycol-Encased Temperature Probe:
- Cable Length: 10 ft
- Range: -40°C to +55°C (-40°F to +131°F)
- Accuracy:
- -40°C to -30°C: +/- 2°C
- -30°C to -10°C: +/- 1°C
- -10°C to +55°C: +/- 0.5°C
Wireless Capabilities:
- Bluetooth Low Energy: Compatible with MV smart cameras and MR access points
- Operating Frequency: 2.400–2.4835 GHz
- IEEE Standard: 802.15.1 (Bluetooth Low Energy 4.2)
Data Logging:
- Data Sampling: Sample polling every two minutes
- Data Reporting: To gateway every 20 minutes, or immediately upon threshold violation
- Onboard Data Storage: 4,000 data points (five days of data at the default sampling rate)
- BLE messages encrypted and authenticated using Cisco Trust Anchor technology
Power:
- Two AA batteries or power adapter
- Battery life up to five (5) years
- Power Ratings: 5V; 0.1A
Physical Characteristics:
- Dimensions: 117.1 mm (L) x 65.9 mm (W) x 26.0 mm (H)
- Battery compartment
- Multicolor, multifunction status LED
- General purpose button
- Reset button
- USB-C port (receptacle connector)
- Sensor connection plug (receptacle connector)
Operating Environment:
- Temperature: 0°C to 55°C (32°F to 131°F)
- Relative Humidity: 0 to 95%
