Cisco Wireless LAN Assesssories รุ่น MA-ANT-27

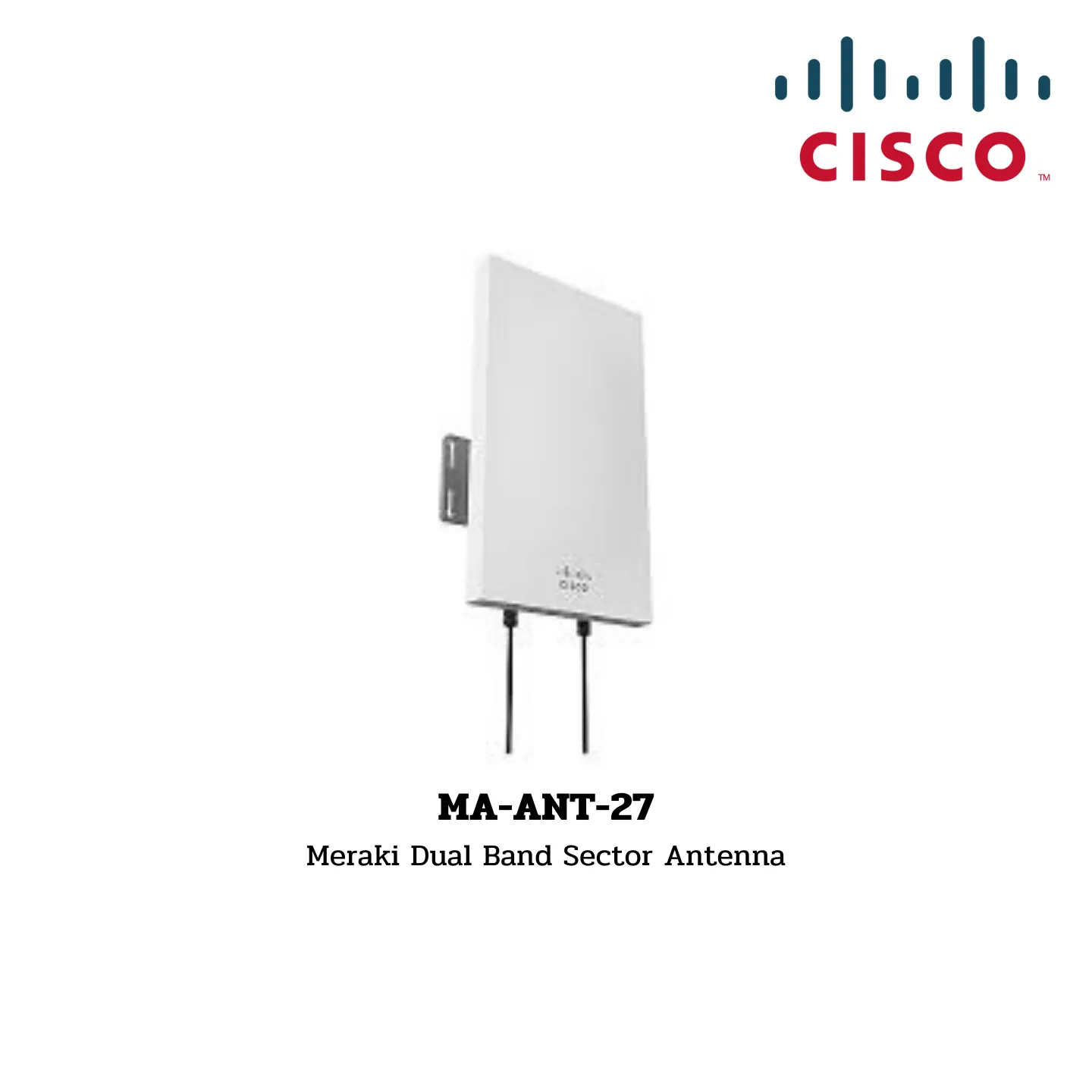

MA-ANT-27
Meraki Dual Band Sector Antenna

Specifications

Electrical:

• Antenna Type: Narrow Patch
• Frequency Range: 2.400-2.500, 5.150-5.875 GHz
• Gain (Per Antenna Element): 11.2 dBi (2.4 GHz) / 10.8 dBi (5 GHz)
• Polarization: Linear, +/- 45°
• Half Power Beamwidth (Horizontal): 30° / 30°
• Half Power Beamwidth (Vertical): 30° / 30°

Cables:

• Times AA-9303, 1M

Mounting:

• Compatible with MA-MNT-ANT-1 or MA-MNT-ANT-2 articulating arm mounts
• Mounts to walls and poles

Physical and Environmental:

• Dimensions: 25.98” x 20.87” x 5.12” (660 mm x 530 mm x 130 mm)
• Weight: 7.1 lbs (113.6 oz)
• Material: PC-ABS
• Temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Humidity: 5% – 93%
• Connector: RP-TNC

Ordering Information:

• MA-ANT-3-F5/6
• MA-MNT-ANT-1 (Standard Mounting Arm)
• MA-MNT-ANT-2 (Long Mounting Arm)

Regulatory:

• Certified for use with MR53E: MA-ANT-3-F6
