Cisco Wireless LAN Assesssories รุ่น MA-ANT-25

MA-ANT-25

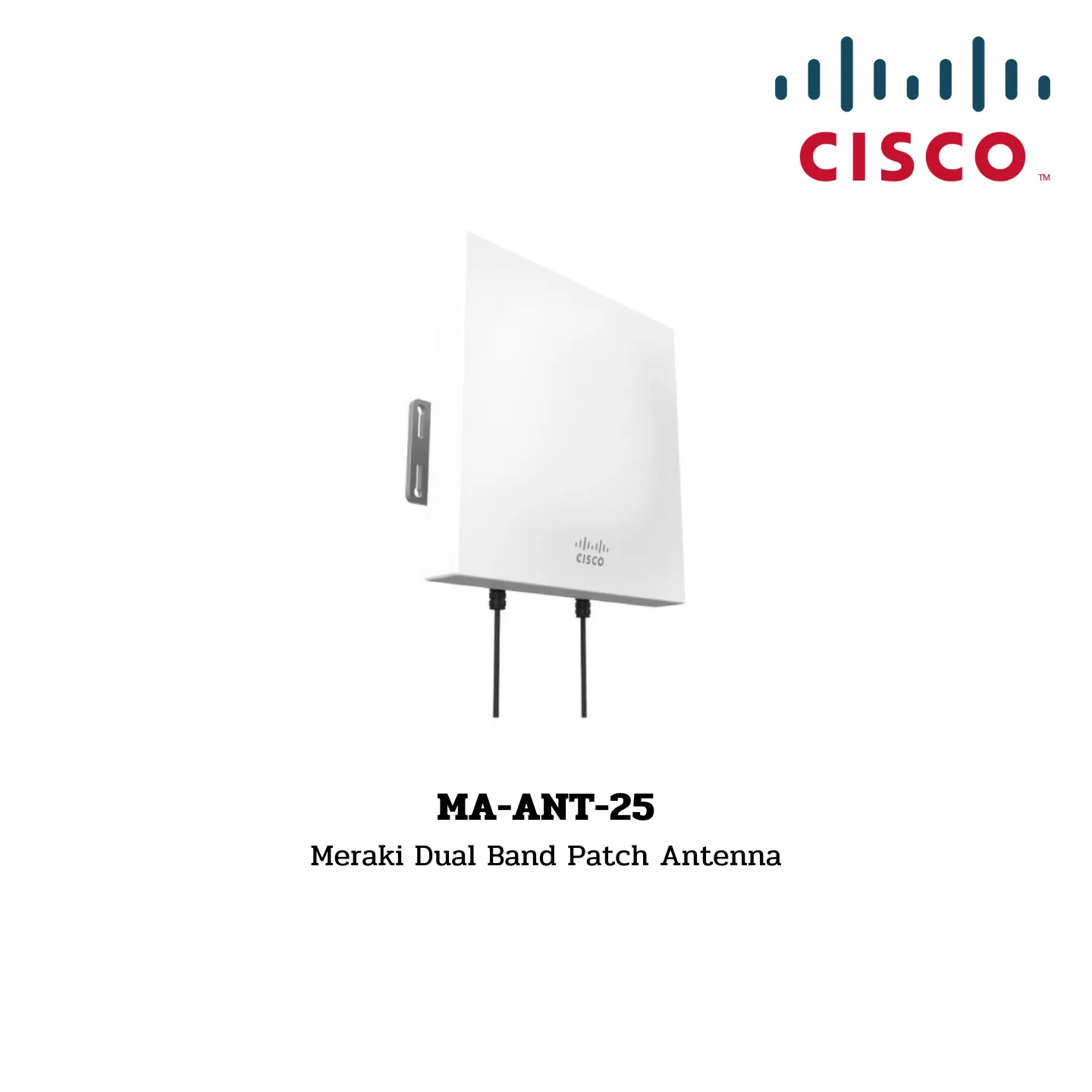

Meraki Dual Band Patch Antenna

Specifications

Electrical:

• Antenna Type: Sector
• Frequency Range: 2.400 – 2.500 GHz, 5.150 – 5.875 GHz
• Gain: 8 dBi (2.4 GHz) / 6.5 dBi (5 GHz)
• Polarization: Linear, vertical/horizontal
• Half-Power Beamwidth (Horizontal): 60° (2.4 GHz) / 75° (5 GHz)
• Half-Power Beamwidth (Vertical): 70° (2.4 GHz) / 84° (5 GHz)

Cables:

• Cables with two N-type connectors included
• Cable length: 12 inches

Mounting:

• Mounting hardware and cables included
• Mounts to walls and poles

Physical and Environmental:

• Dimensions: 7.1 in x 7.1 in x 1.6 in (180 mm x 180 mm x 1.8 mm)
• Weight: 1.1 lbs (512 g)
• Material: UV-resistant plastic
• Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
• Connector: 2x N-type

Regulatory:

• Certified for use with the MR72, MR74, MR76, MR84, MR86
