MA-ANT-3-E6

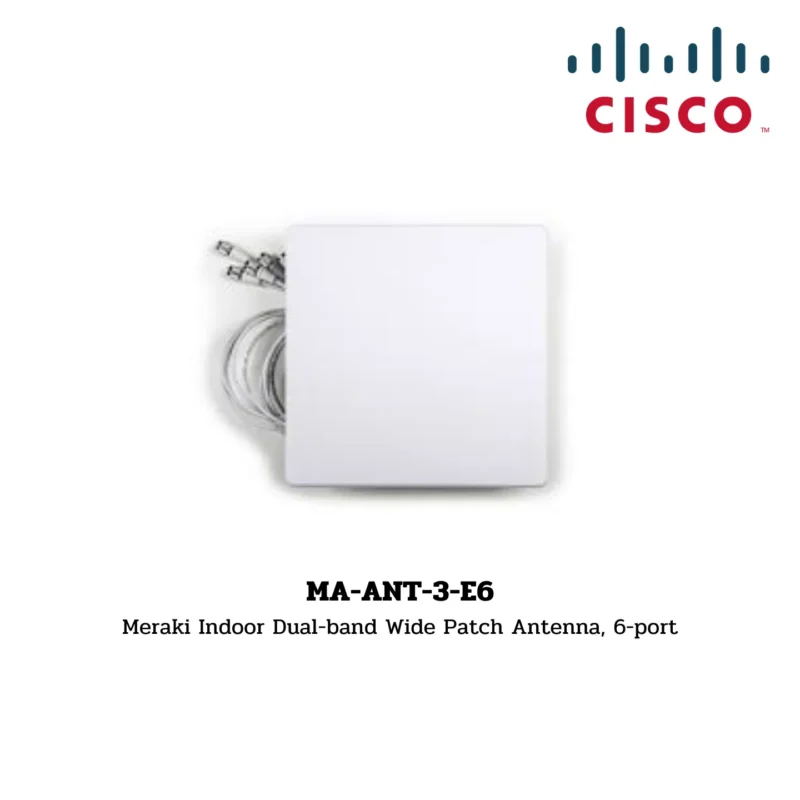

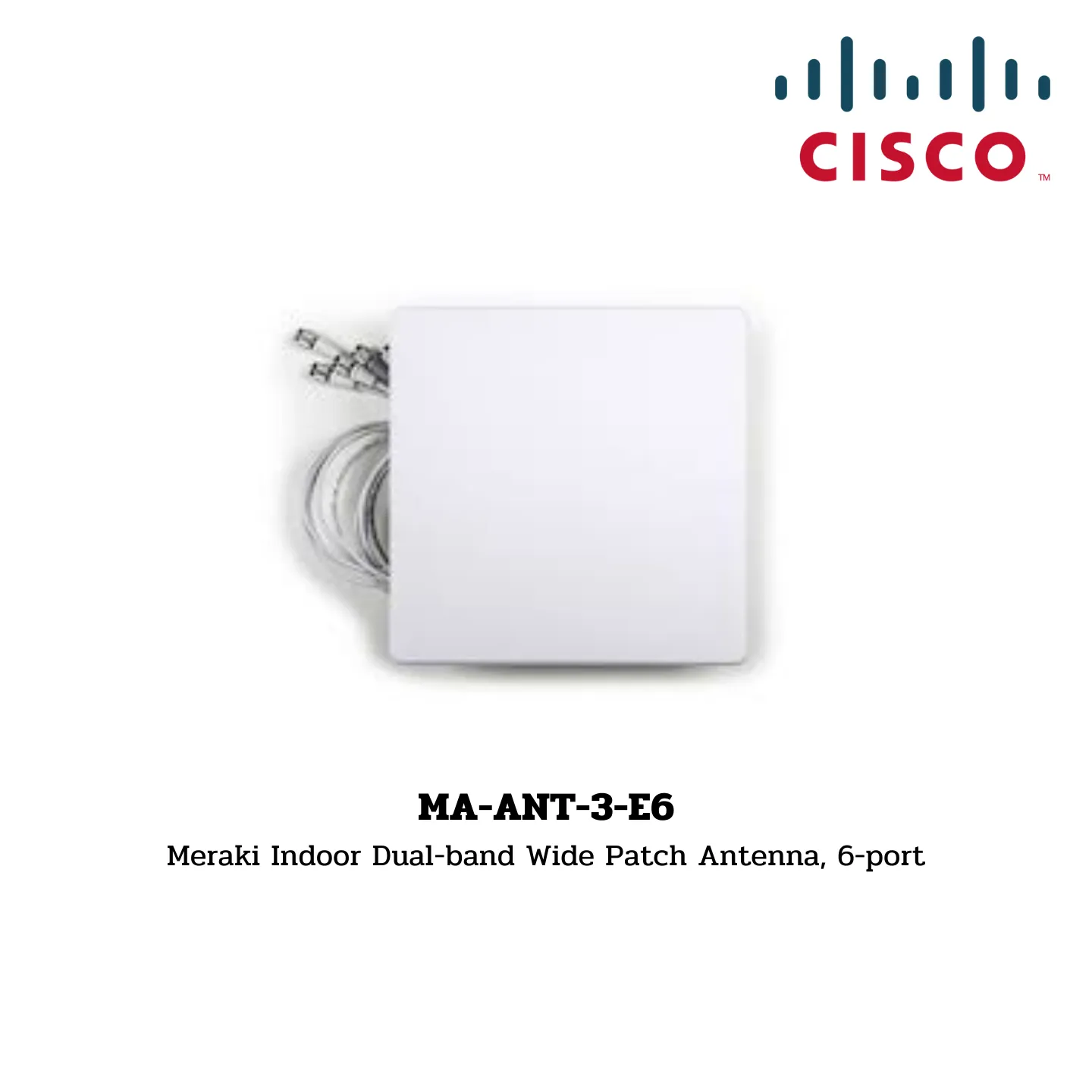

Meraki Indoor Dual-band Wide Patch Antenna, 6-port
Specifications
Electrical:
- Antenna Type: Wide Patch
- Frequency Range: 2.400-2.500, 5.150-5.875 GHz
- Gain (Per Antenna Element): 7 dBi (2.4 GHz) / 6.3 dBi (5 GHz)
- Polarization: Linear, +/- 45°
- Half Power Beamwidth (Horizontal): 60° / 60°
- Half Power Beamwidth (Vertical): 60° / 60°
Cables:
- AA-9303, 1M
Mounting:
- Surface mount nut included; compatible with MA-MNT-ANT-1 or MA-MNT-ANT-2 articulating arm mounts
- Mounts to walls and poles
Physical and Environmental:
- Dimensions: 10.83” x 10.83” x 0.93” (275 mm x 275 mm x 23.5 mm)
- Weight: 41.27 oz (1.17 kg)
- Material: PC-ABS
- Temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5% – 93%
- Connector: RP-TNC
Ordering Information:
- MA-ANT-3-E5/6
- MA-MNT-ANT-1 (Standard Mounting Arm)
- MA-MNT-ANT-2 (Long Mounting Arm)
Regulatory:
- Certified for use with MR53E: MA-ANT-3-E6
