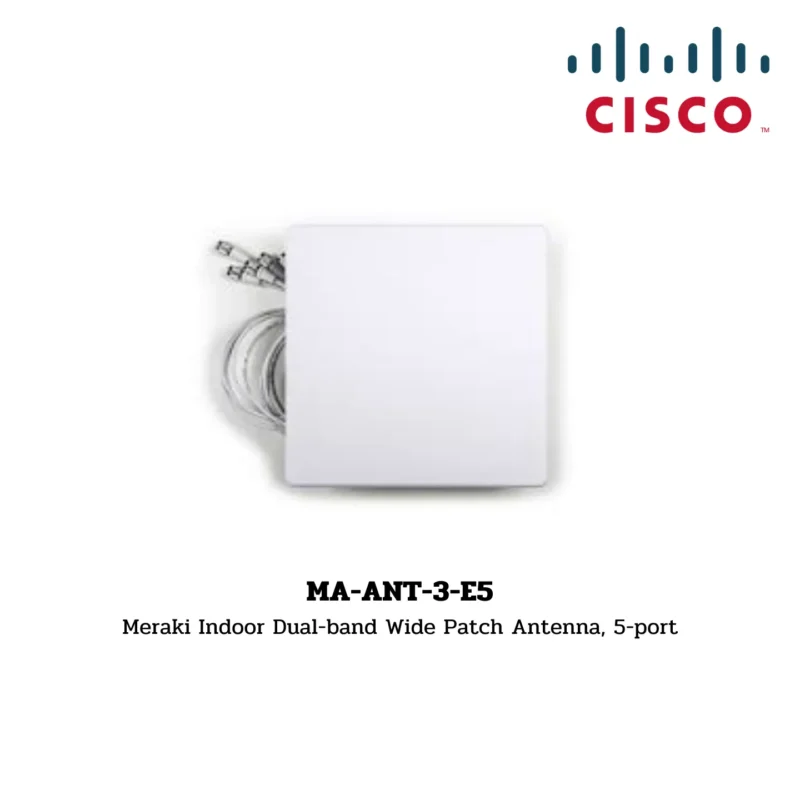

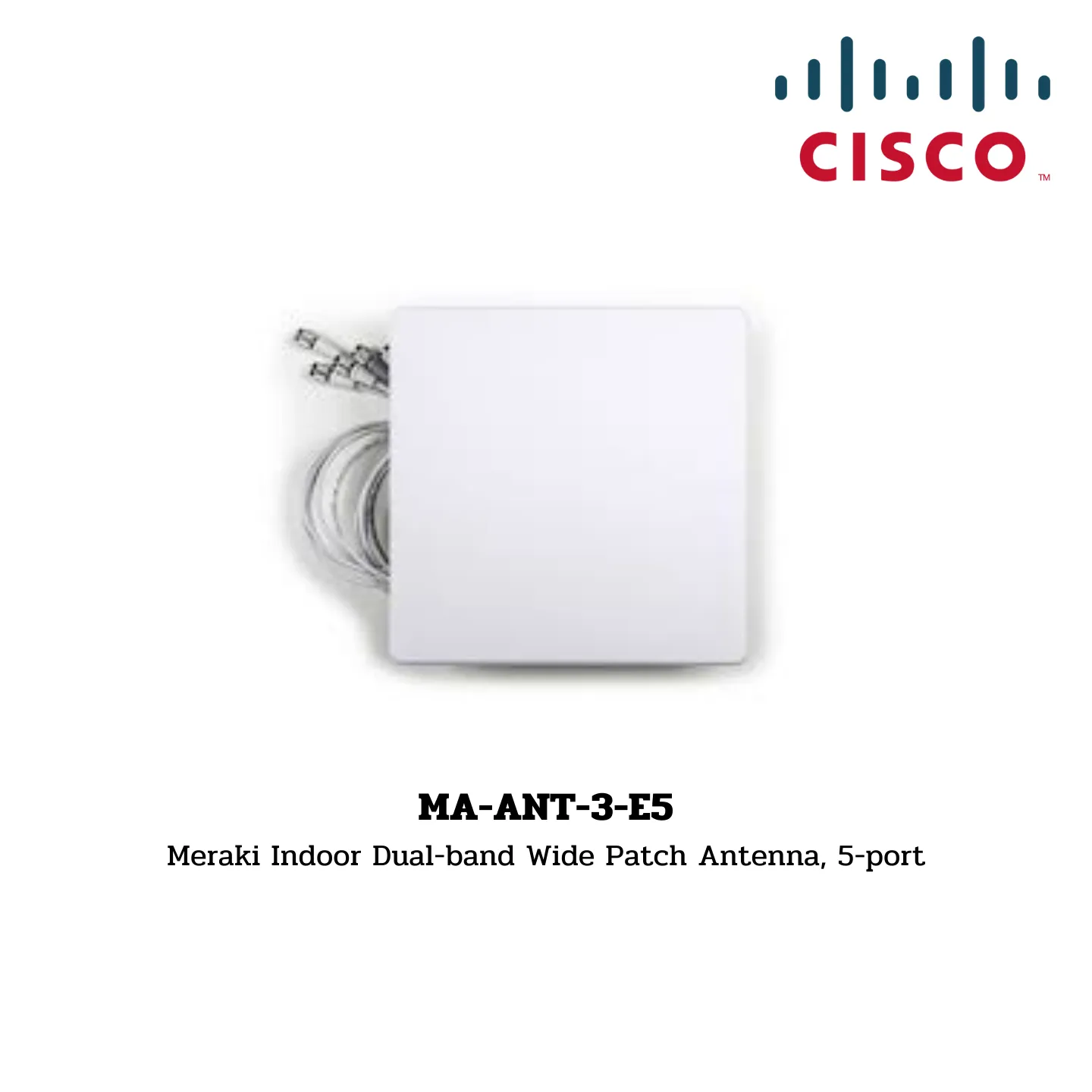

MA-ANT-3-E5
Meraki Indoor Dual-band Wide Patch Antenna, 5-port
The Meraki MA-ANT-3-E5 is an indoor dual-band wide patch antenna designed for high-density environments, ensuring optimal Wi-Fi performance and reliability.
Overview
The MA-ANT-3-E5 is perfect for environments requiring wide coverage, such as large auditoriums, stadiums, and event halls. With its dual-band functionality, it provides efficient signal distribution for both the 2.4 GHz and 5 GHz frequencies.
Key Features:
- Dual-Band Frequency Range: Supports 2.400-2.500 GHz and 5.150-5.875 GHz frequencies.
- Wide Coverage: Offers 7 dBi gain for the 2.4 GHz band and 6.3 dBi gain for the 5 GHz band.
- Beamwidth: Provides a 60° half-power beamwidth for both horizontal and vertical planes.
- Connector Type: Equipped with RP-TNC connectors to ensure secure and stable connections.
- Design: Robust construction with a lightweight and durable PC-ABS material.
- Mounting Options: Compatible with MA-MNT-ANT-1 (standard mounting arm) and MA-MNT-ANT-2 (long mounting arm), allowing for flexible wall and ceiling installations.
Specifications
Electrical:
- Antenna Type: Wide Patch
- Frequency Range: 2.400-2.500, 5.150-5.875 GHz
- Gain (Per Antenna Element): 7 dBi (2.4 GHz) / 6.3 dBi
- Polarization: Linear, +/- 45°
- Half Power Beamwidth (Horizontal): 60° / 60°
- Half Power Beamwidth (Vertical): 60° / 60°
Cables:
- AA-9303, 1M
Mounting:
- Surface mount nut included; compatible with MA-MNT-ANT-1 or MA-MNT-ANT-2 articulating arm mounts
- Mounts to walls and poles
Physical and Environmental:
- Dimensions: 10.83” x 10.83” x 0.93” (275 mm x 275 mm x 23.5 mm)
- Weight: 38.8 oz (1.1 kg)
- Material: PC-ABS
- Temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5% – 93%
- Connector: RP-TNC
Ordering Information:
- MA-ANT-3-E5/6
- MA-MNT-ANT-1 (Standard Mounting Arm)
- MA-MNT-ANT-2 (Long Mounting Arm)
Regulatory:
- Certified for use with MR42E: MA-ANT-3-E5
