Cisco Wireless LAN Assesssories รุ่น MA-ANT-3-C5

MA-ANT-3-C5

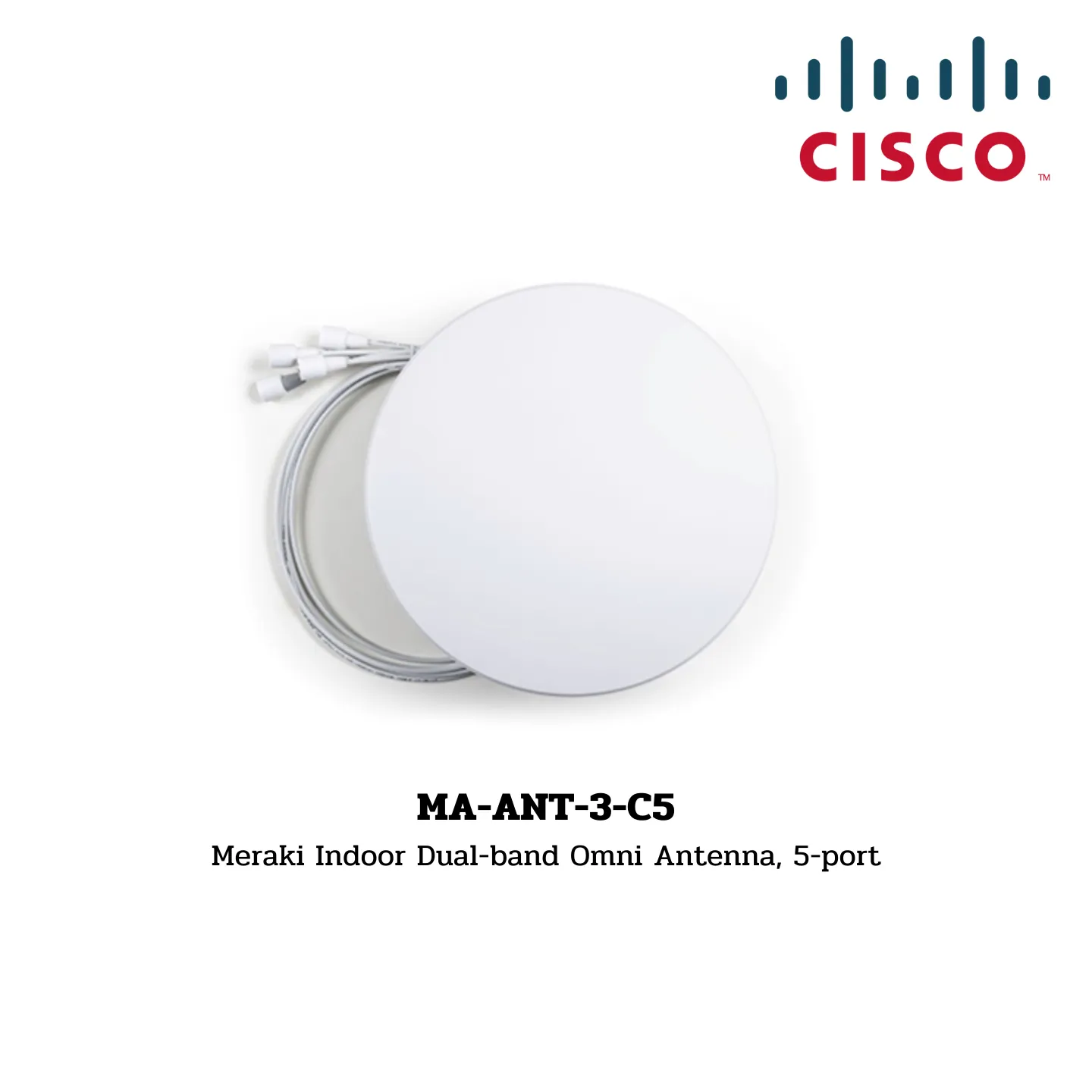

Meraki Indoor Dual-band Omni Antenna, 5-port

The Meraki MA-ANT-3-C5 is an indoor dual-band omnidirectional antenna designed to enhance Wi-Fi coverage in aesthetic-conscious installations with low ceilings.

Overview

The MA-ANT-3-C5 omnidirectional antenna is ideal for low-density deployments, such as schools and hotels, where wall penetration or extended reach is essential. This antenna helps provide reliable Wi-Fi coverage throughout the environment.

Key Features:

• Dual-Band Frequency Range: Supports both 2.400-2.500 GHz and 5.150-5.875 GHz frequencies.
• Gain: Provides 4.9 dBi gain for both 2.4 GHz and 5 GHz bands.
• Beamwidth: Offers a 360° horizontal beamwidth and a 60° vertical beamwidth.
• Connector Type: Equipped with RP-TNC connectors to ensure secure connection.
• Mounting Options: Can be mounted on walls, poles, and ceiling tiles.
• Durability: Made from PC-ABS material, ensuring resilience in varied environmental conditions.
• Compact Size: Dimensions are 11.81” x 1.38” (300 mm x 35 mm) and weighs 34.39 oz (0.98 kg).

Specifications

Electrical:

• Antenna Type: Omni
• Frequency Range: 2.400-2.500, 5.150-5.875 GHz
• Gain (Per Antenna Element): 4.9 dBi (2.4 GHz) / 4.9 dBi
• Polarization: Linear, vertical/horizontal
• Half Power Beamwidth (Horizontal): Omni
• Half Power Beamwidth (Vertical): 60°

Cables:

• Times AA-9303, 1M

Mounting:

• Mounts to walls, poles, and ceiling tiles
• Flush-mount solution included
• Surface mount and pipe mount solution sold separately

Physical and Environmental:

• Dimensions: 11.81” x 1.38” (300 mm x 35 mm)
• Weight: 34.39 oz (0.98 kg)
• Material: PC-ABS
• Temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Humidity: 5% – 95%
• Connector: RP-TNC

Ordering Information:

• MA-ANT-3-C5/6
• MA-MNT-ANT-3 (Horizontal Mounting Bracket)
• MA-MNT-ANT-4 (Vertical Mounting Bracket)

Regulatory:

• Certified for use with MR42E: MA-ANT-3-C5
