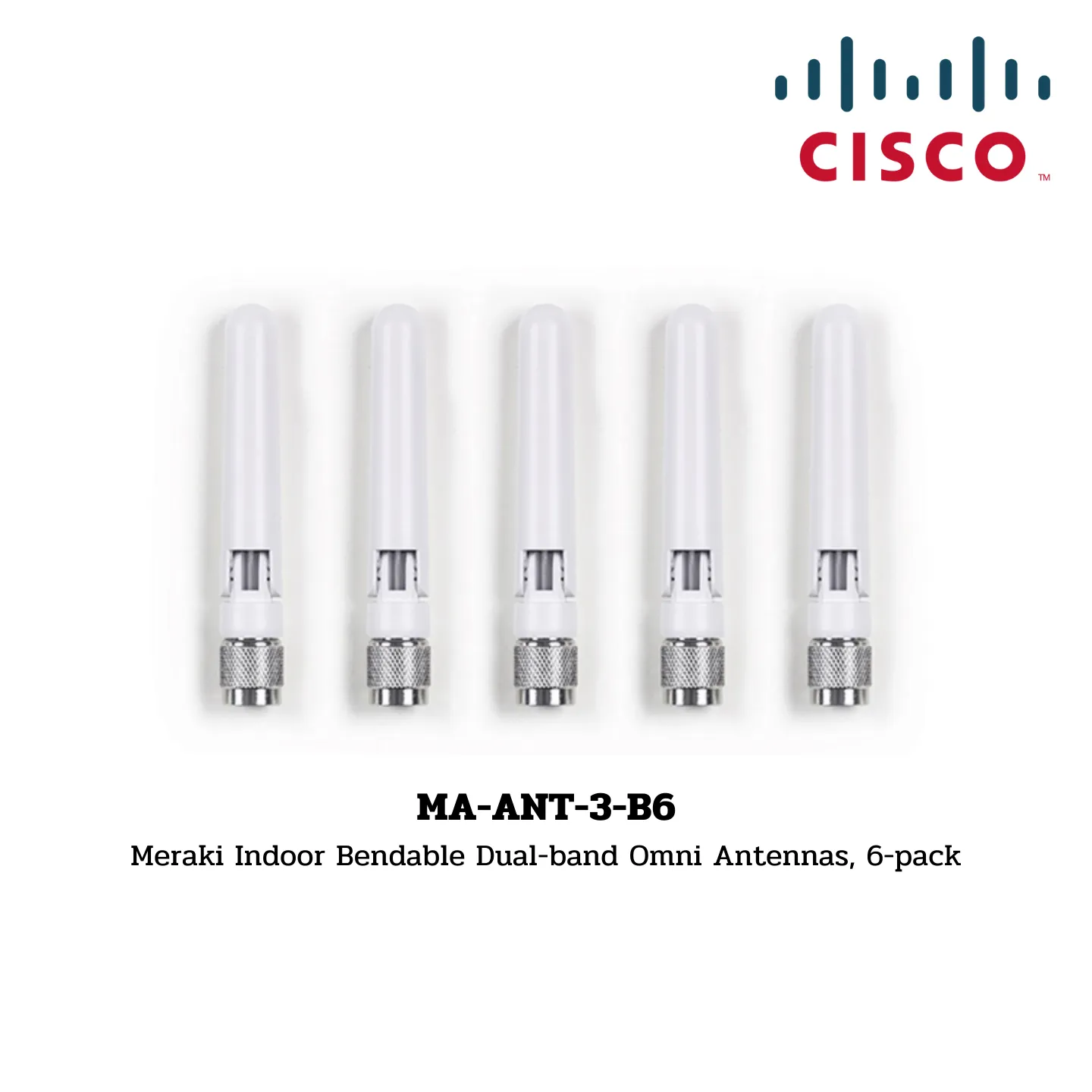

MA-ANT-3-B6
Meraki Indoor Bendable Dual-band Omni Antennas, 6-pack
The Meraki MA-ANT-3-B6 is an indoor dual-band omnidirectional antenna with a bendable design, intended for low-density deployments.
Overview
The MA-ANT-3-B6 antenna is ideal for environments like schools, hotels, or any low-ceiling installation where wall penetration and extended reach are important. This bendable antenna ensures flexible installation and enhanced Wi-Fi coverage.
Key Features:
- Dual-Band Frequency Range: Supports 2.400-2.500 GHz and 5.150-5.875 GHz frequencies.
- Gain: Provides 3 dBi gain for the 2.4 GHz band and 5.7 dBi gain for the 5 GHz band.
- Directivity: Omni-directional for 360° horizontal coverage.
- Flexible Installation: Bendable design allows for easy and versatile positioning.
- Connector Type: Equipped with RP-TNC connectors for secure connections.
- Durable Construction: Made from PC-ABS plastic, ensuring robustness.
- Environmental Suitability: Suitable for indoor use, with operating temperatures ranging from 32°F to 104°F (0°C to 40°C).
- Pack Quantity: Comes in a pack of six antennas for comprehensive coverage.
Specifications
Electrical:
- Antenna Type: Dipole
- Frequency Range: 2.400-2.500, 5.150-5.875 GHz
- Gain: 3 dBi (2.4 GHz) / 5.7 dBi (5 GHz)
- Polarization: Linear, vertical/horizontal
- Half Power Beamwidth (Horizontal): Omni
- Half Power Beamwidth (Vertical): 40°
Cables:
- N/A
Mounting:
- N/A
Physical and Environmental:
- Dimensions: 3.51” x 0.57” (89.3 mm x 14.5 mm)
- Weight: 0.71 oz (20.19 g)
- Material: PC-ABS
- Temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5% to 95%
- Connector: RP-TNC
Regulatory:
- Certified for use with MR53E: MA-ANT-3-B6
