Cisco Wireless LAN Assesssories รุ่น MA-ANT-3-B1

MA-ANT-3-B1

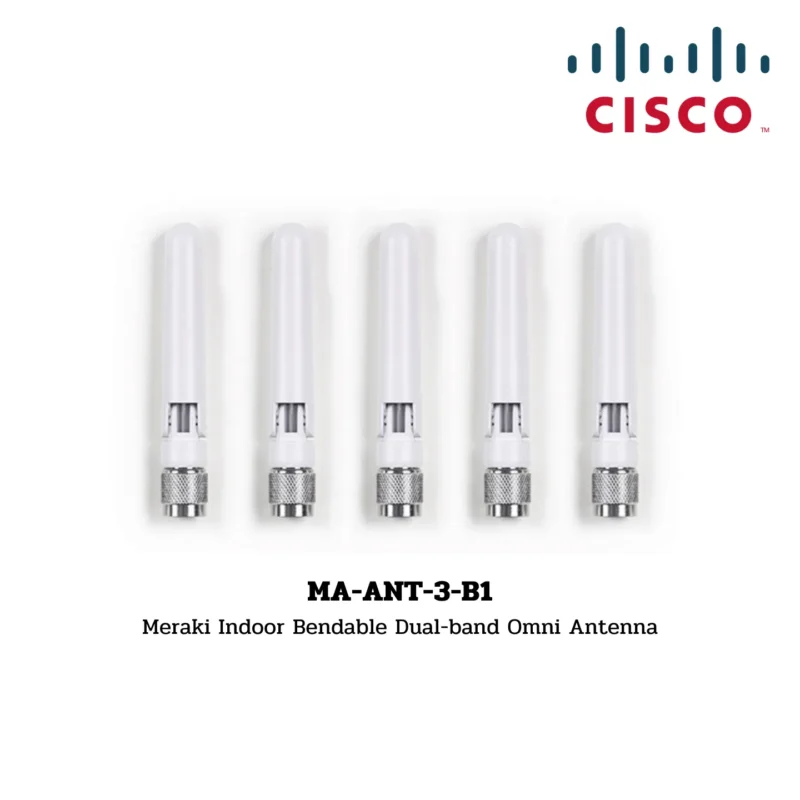

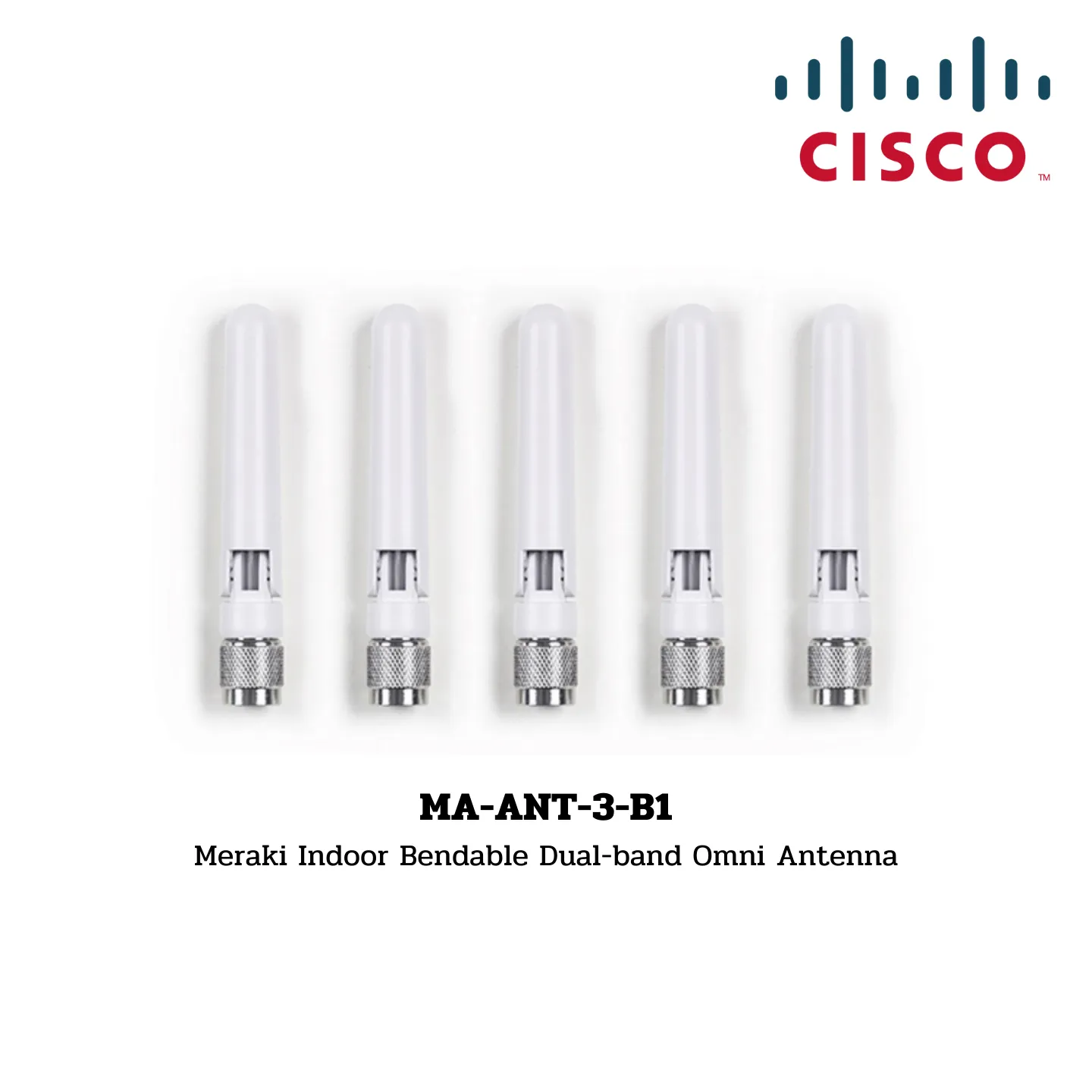

Meraki Indoor Bendable Dual-band Omni Antenna

The Meraki MA-ANT-3-B1 is an indoor dual-band omnidirectional antenna designed with a bendable structure, perfect for low-density deployments like schools and hotels.

Overview

The MA-ANT-3-B1 antenna is ideal for installations with low ceilings where wall penetration and extended reach are essential. Its flexible design allows for versatile positioning, providing reliable Wi-Fi coverage in various environments.

Key Features:

• Dual-Band Frequency Range: Supports 2.400-2.500 GHz and 5.150-5.875 GHz frequencies.
• Gain: Provides 3 dBi gain for the 2.4 GHz band and 5.7 dBi gain for the 5 GHz band.
• Directivity: Omnidirectional for 360° horizontal coverage.
• Flexible Installation: Bendable design for easy and versatile positioning.
• Connector Type: RP-TNC connectors for secure connections.
• Durable Construction: Made from PC-ABS plastic, ensuring robustness.
• Compact Size: Measures 3.51” x 0.57” (89.3 mm x 14.5 mm) and weighs 0.71 oz (20.19 g).

Specifications

• Antenna Type: Dipole
• Frequency Range: 2.400-2.500, 5.150-5.875 GHz
• Gain (Per Antenna Element): 3 dBi (2.4 GHz) / 5.7 dBi (5 GHz)
• Polarization: Linear, vertical/horizontal
• Dimensions: 3.51” x 0.57” (89.3 mm x 14.5 mm)
• Weight: 0.71 oz (20.19 g)
