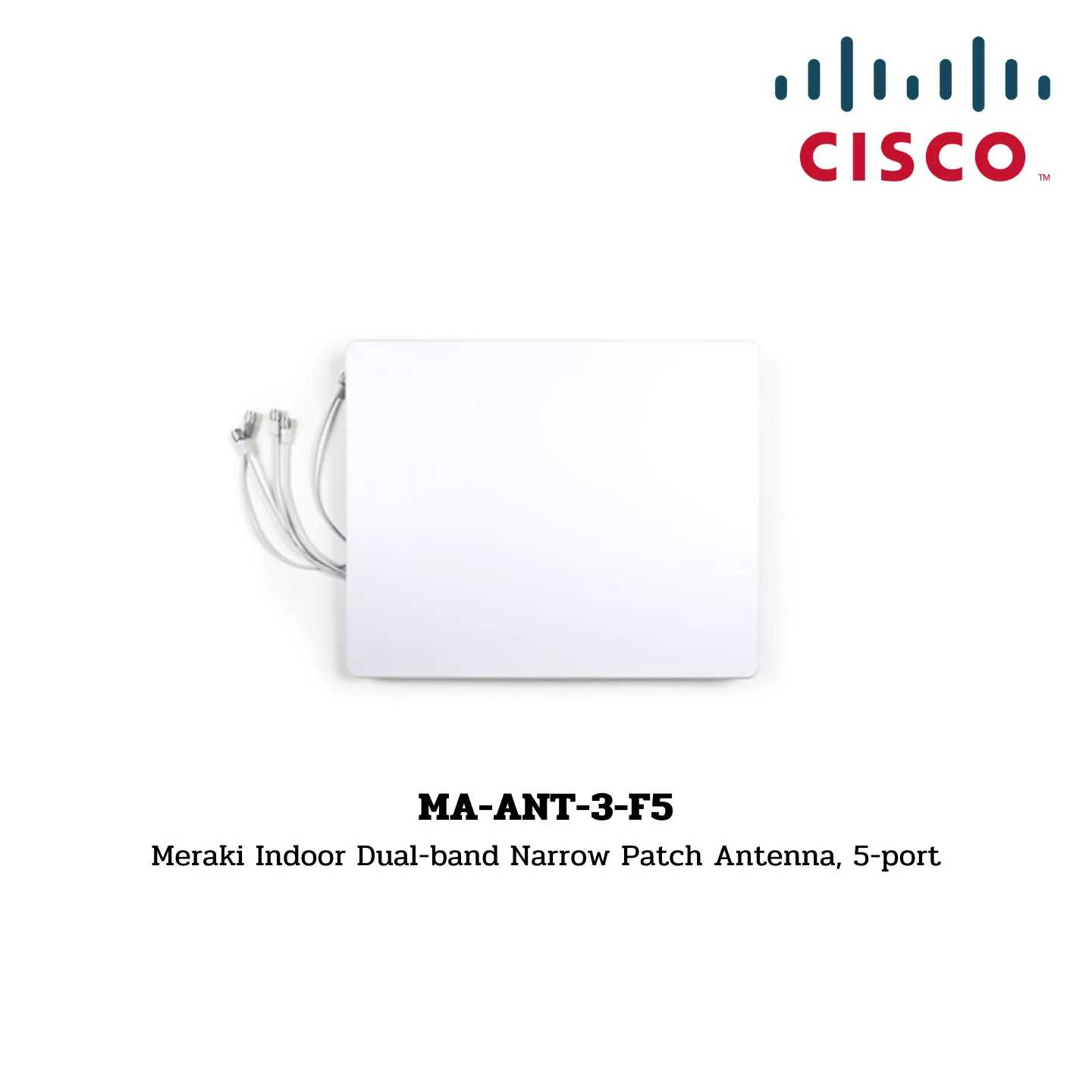

MA-ANT-3-F5
Meraki Indoor Dual-band Narrow Patch Antenna, 5-port
The Meraki MA-ANT-3-F5 is an indoor dual-band narrow patch antenna designed for high-density environments.
Overview
The MA-ANT-3-F5 antenna is ideal for high-ceiling installations (25+ ft). It’s designed for high-density applications and deployments where access points cover high-density users in smaller zones, such as large lecture halls, stadiums, and event venues.
Key Features:
- Dual-Band Frequency Range: Supports both 2.400-2.500 GHz and 5.150-5.875 GHz frequencies.
- High Gain: Offers 11.2 dBi gain for 2.4 GHz and 10.8 dBi gain for 5 GHz.
- Narrow Beamwidth: Provides a 30° half-power beamwidth for both horizontal and vertical planes.
- Connector Type: RP-TNC connectors ensure a secure and stable connection.
- Robust Design: Built to withstand environmental conditions with a durable PC-ABS material.
- Mounting Options: Compatible with MA-MNT-ANT-1 (standard mounting arm) and MA-MNT-ANT-2 (long mounting arm), allowing for wall and ceiling installations.
Specifications
Electrical:
- Antenna Type: Narrow Patch
- Frequency Range: 2.400-2.500, 5.150-5.875 GHz
- Gain (Per Antenna Element): 11.2 dBi (2.4 GHz) / 10.8 dBi (5 GHz)
- Polarization: Linear, +/- 45°
- Half Power Beamwidth (Horizontal): 30° / 30°
- Half Power Beamwidth (Vertical): 30° / 30°
Cables:
- Times AA-9303, 1M
Mounting:
- Compatible with MA-MNT-ANT-1 or MA-MNT-ANT-2 articulating arm mounts
- Mounts to walls and poles
Physical and Environmental:
- Dimensions: 25.98” x 20.87” x 5.12” (660 mm x 530 mm x 130 mm)
- Weight: 6.9 lbs (110.4 oz)
- Material: PC-ABS
- Temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5% – 93%
- Connector: RP-TNC
Ordering Information:
- MA-ANT-3-F5/6
- MA-MNT-ANT-1 (Standard Mounting Arm)
- MA-MNT-ANT-2 (Long Mounting Arm)
Regulatory:
- Certified for use with MR42E: MA-ANT-3-F5
