Cisco Wireless LAN Assesssories รุ่น MA-ANT-3-A6

MA-ANT-3-A6

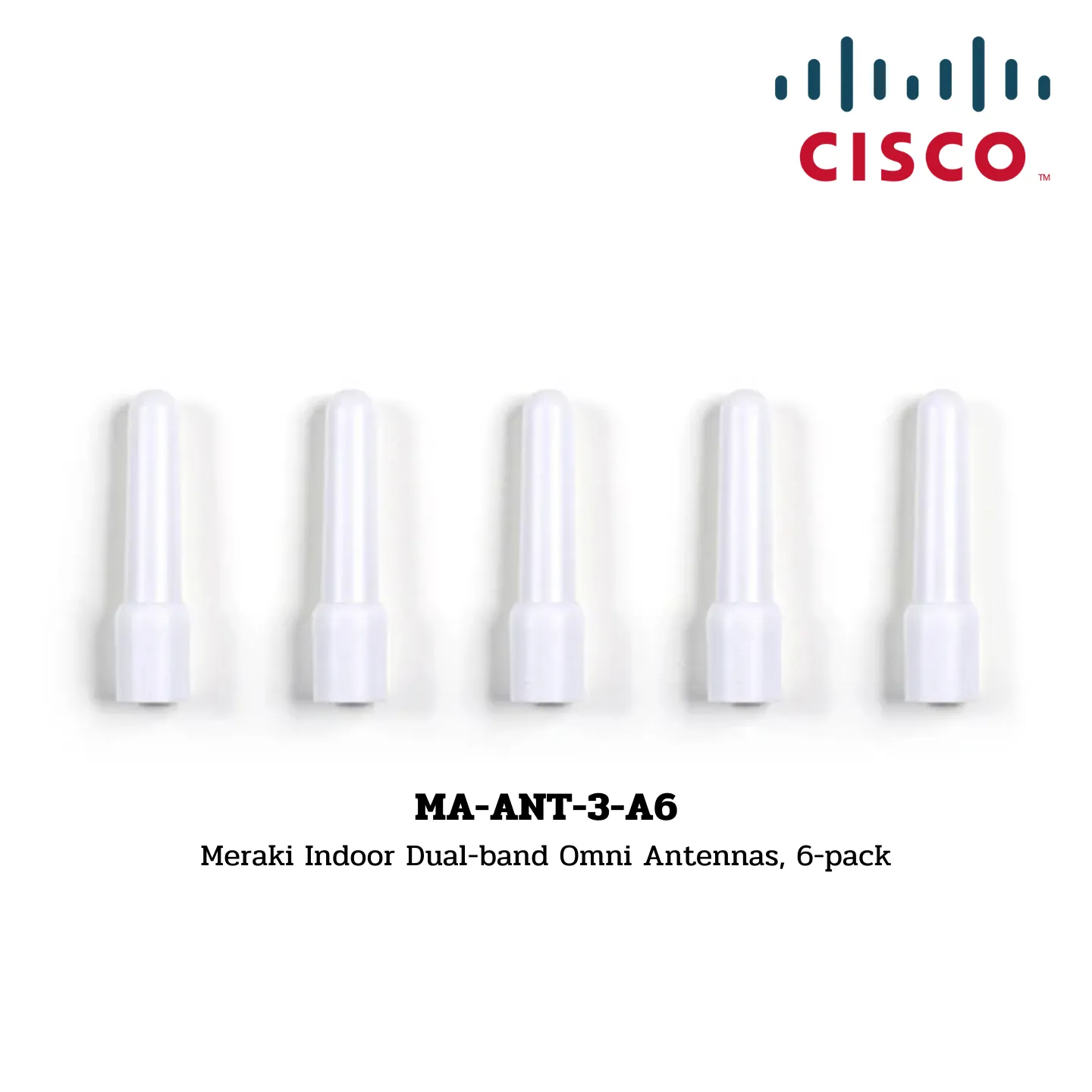

Meraki Indoor Dual-band Omni Antennas, 6-pack

The Meraki MA-ANT-3-A6 is a set of indoor dual-band omnidirectional antennas designed to enhance Wi-Fi coverage in low-density settings.

Overview

The MA-ANT-3-A6 antenna package is ideal for environments such as schools and hotels, where low ceiling installations are common. These antennas are designed to provide reliable Wi-Fi coverage, ensuring wall penetration and extended reach are achieved in various settings. The pack includes six antennas, making it a comprehensive solution for optimizing network performance.

Key Features:

• Dual-Band Frequency Range: Supports 2.400-2.500 GHz and 5.150-5.875 GHz frequencies.
• Gain: Provides 3.8 dBi gain for the 2.4 GHz band and 5.5 dBi gain for the 5 GHz band.
• Beamwidth: Offers 360° horizontal coverage, ensuring omnidirectional performance.
• Connector Type: Equipped with RP-TNC connectors.
• Durability: Made from PC-ABS material, ensuring robustness and longevity.
• Compact: Dimensions are 3.05” x 0.57” (77.7 mm x 14.5 mm) and weighs 0.076 oz (21.59 g).

Specifications

Electrical:

• Antenna Type: Dipole
• Frequency Range: 2.400-2.500, 5.150-5.875 GHz
• Gain: 3.8 dBi (2.4 GHz) / 5.5 dBi (5 GHz)
• Polarization: Linear, vertical/horizontal
• Half Power Beamwidth (Horizontal): Omni
• Half Power Beamwidth (Vertical): 40°

Cables:

• N/A

Mounting:

• N/A

Physical and Environmental:

• Dimensions: 3.05” x 0.57” (77.7 mm x 14.5 mm)
• Weight: 0.076 oz (21.59 g)
• Material: PC-ABS
• Temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Humidity: 5% to 95%
• Connector: RP-TNC

Regulatory:

• Certified for use with MR53E: MA-ANT-3-A6
