Cisco Wireless LAN Assesssories รุ่น MA-ANT-20

MA-ANT-20

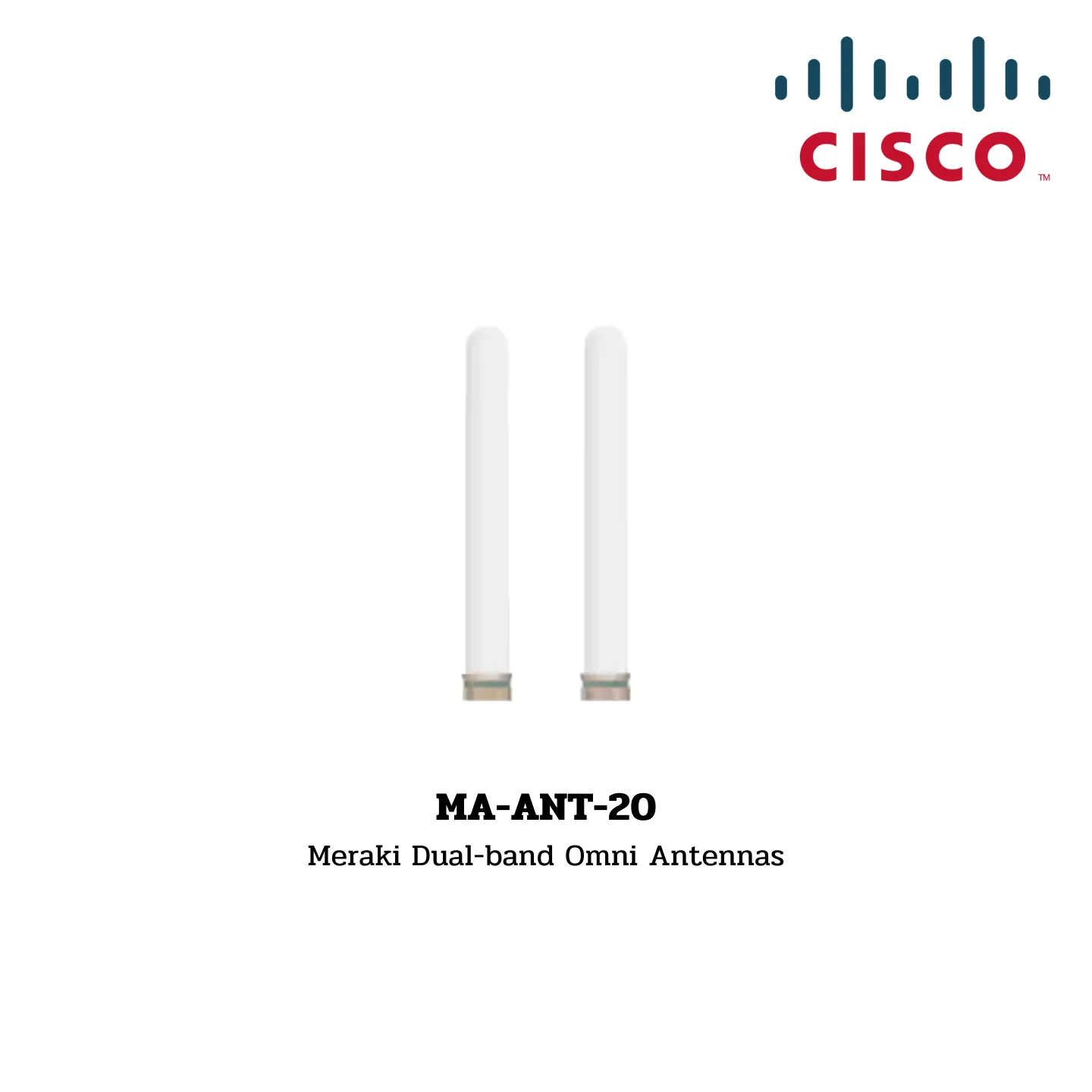

Meraki Dual-band Omni Antennas

Specifications

Electrical:

• Antenna Type: Omni-directional
• Frequency Range (2 GHz): 2.400 – 2.500 GHz
• Frequency Range (5 GHz): 5.150 – 5.875 GHz
• Gain (2 GHz): 4 dBi
• Gain (5 GHz): 7 dBi
• Polarization: Vertical (linear)
• Half Power Beamwidth (Horizontal): 360°
• Half Power Beamwidth (Vertical): 45°

Box Contents:

• Two Meraki MA-ANT-20 antennas

Physical and Environmental:

• Dimensions: 1.0 x 7.1” (25 mm x 180 mm)
• Weight: 0.17 lbs (79 g)
• Material: ABS plastic
• Temperature: -40° F – 158° F (-40° C – 70° C)
• Connector: N-type

Mounting:

• Directly to unit (no cable required)

Regulatory:

• Certified for use with the MR62, MR66, MR72, MR74, MR76, MR84, MR86
