Cisco Wireless LAN Assesssories รุ่น MA-ANT-3-D5

MA-ANT-3-D5

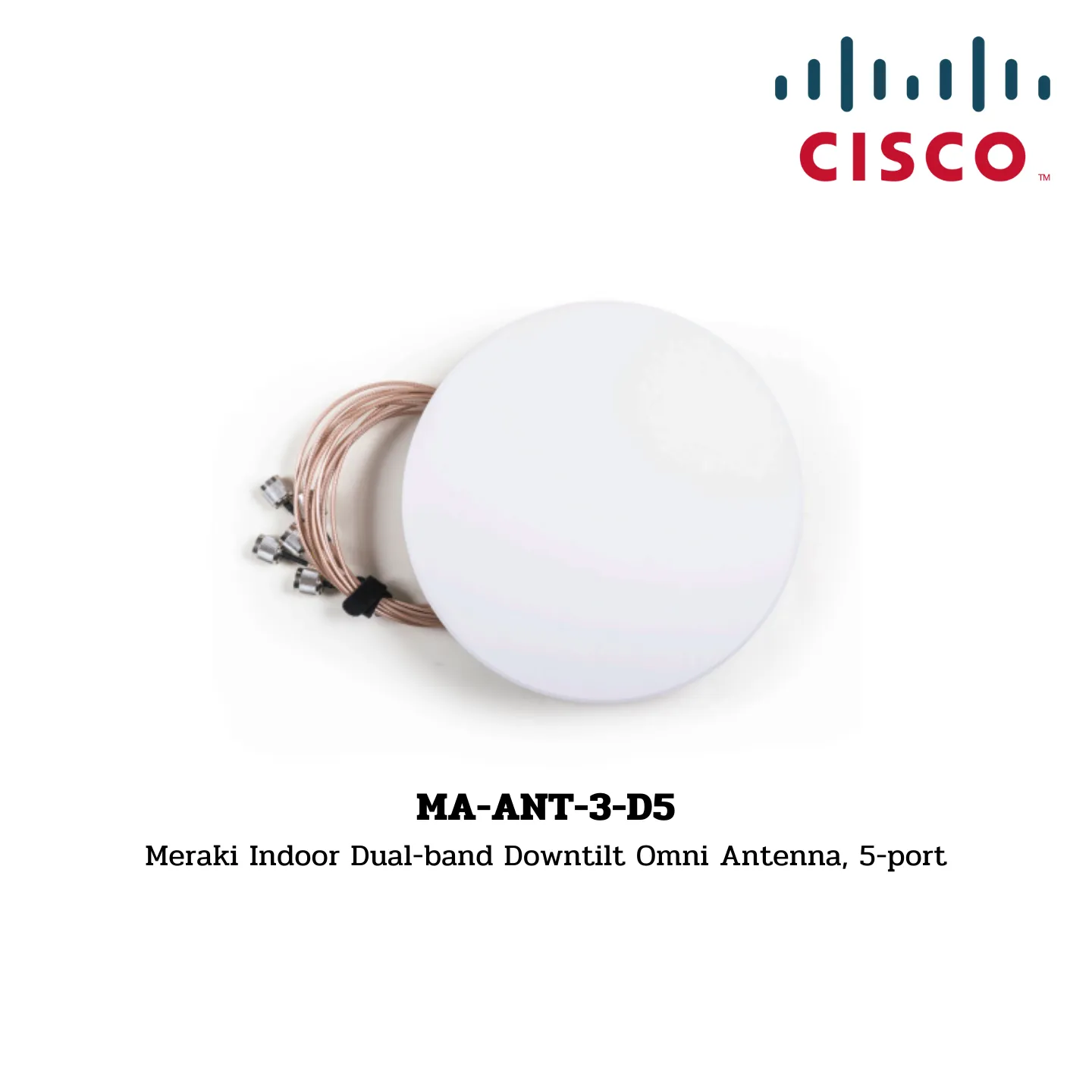

Meraki Indoor Dual-band Downtilt Omni Antenna, 5-port

The Meraki MA-ANT-3-D5 is an indoor dual-band downtilt omnidirectional antenna designed to enhance Wi-Fi coverage and performance in various high-density environments.

Overview

The MA-ANT-3-D5 antenna is ideal for installations with medium ceilings (8-25 ft). It’s suited for medium-density deployments such as cubicle office spaces and vestibules, offering a balanced combination of coverage and capacity.

Key Features:

• Dual-Band Frequency Range: Supports 2.400-2.500 GHz and 5.150-5.875 GHz frequencies.
• Gain: Provides 2.9 dBi gain for the 2.4 GHz band and 3.7 dBi gain for the 5 GHz band.
• Beamwidth: Horizontal beamwidth of 360° and vertical beamwidth of 60°, centered at a +/- 45° down angle.
• Connector Type: RP-TNC connectors ensure a secure and stable connection.
• Mounting Options: Compatible with MA-MNT-ANT-3 horizontal mounting bracket and MA-MNT-ANT-4 vertical mounting bracket.
• Durable Construction: Made from PC-ABS material, built to withstand various environmental conditions.
• Compact Size: Dimensions are 8.86” x 1.46” (225 mm x 37 mm) and weighs 20.11 oz (0.57 kg).

Specifications

Electrical:

• Antenna Type: Omni-directional
• Frequency Range: 2.400-2.500, 5.150-5.875 GHz
• Gain (Per Antenna Element): 2.9 dBi (2.4 GHz) / 3.7 dBi (5 GHz)
• Polarization: Linear, vertical/horizontal
• Half Power Beamwidth (Horizontal): 360°
• Half Power Beamwidth (Vertical): 60° / 60°, centered at +/- 45° down angle

Cables:

• Aliner RG316, 1M

Mounting:

• Mounts to walls, poles, and ceiling tiles
• Flush-mount solution included
• Surface mount and pipe mount solution sold separately

Physical and Environmental:

• Dimensions: 8.86” x 1.46” (225 mm x 37 mm)
• Weight: 20.11 oz (0.57 kg)
• Material: PC-ABS
• Temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Humidity: 5% – 93%
• Connector: RP-TNC

Ordering Information:

• MA-ANT-3-D5/6
• MA-MNT-ANT-3 (Horizontal Mounting Bracket)
• MA-MNT-ANT-4 (Vertical Mounting Bracket)

Regulatory:

• Certified for use with MR42E: MA-ANT-3-D5
