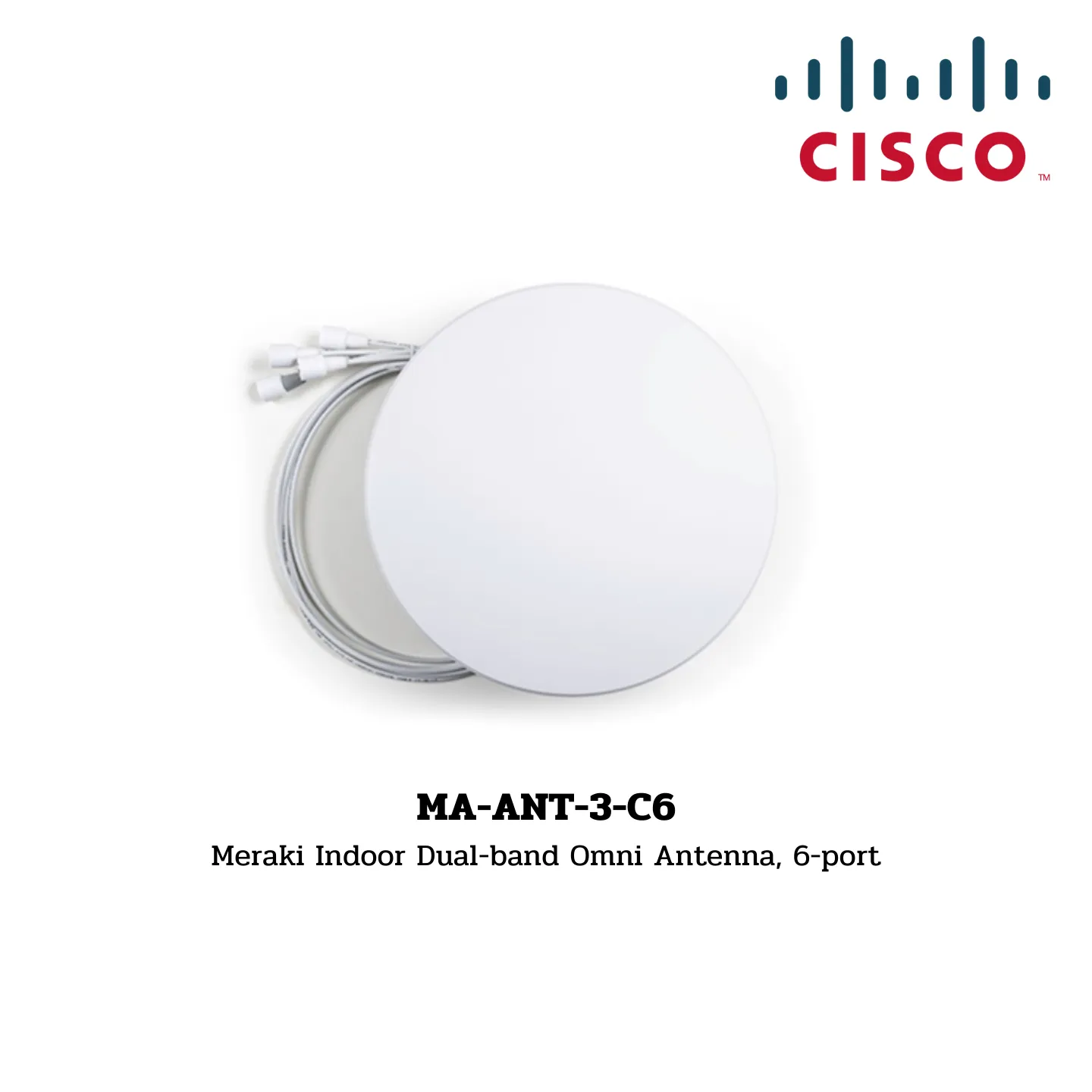

MA-ANT-3-C6
Meraki Indoor Dual-band Omni Antenna, 6-port
Specifications
Electrical:
- Antenna Type: Omni
- Frequency Range: 2.400-2.500, 5.150-5.875 GHz
- Gain (Per Antenna Element): 4.9 dBi (2.4 GHz) / 4.9 dBi
- Polarization: Linear, vertical/horizontal
- Half Power Beamwidth (Horizontal): Omni
- Half Power Beamwidth (Vertical): 60°
Cables:
- Times AA-9303, 1M
Mounting:
- Mounts to walls, poles, and ceiling tiles
- Flush-mount solution included
- Surface mount and pipe mount solution sold separately
Physical and Environmental:
- Dimensions: 11.81” x 1.38” (300 mm x 35 mm)
- Weight: 37.04 oz (1.05 kg)
- Material: PC-ABS
- Temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5% – 95%
- Connector: RP-TNC
Ordering Information:
- MA-ANT-3-C5/6
- MA-MNT-ANT-3 (Horizontal Mounting Bracket)
- MA-MNT-ANT-4 (Vertical Mounting Bracket)
Regulatory:
- Certified for use with MR53E: MA-ANT-C6
