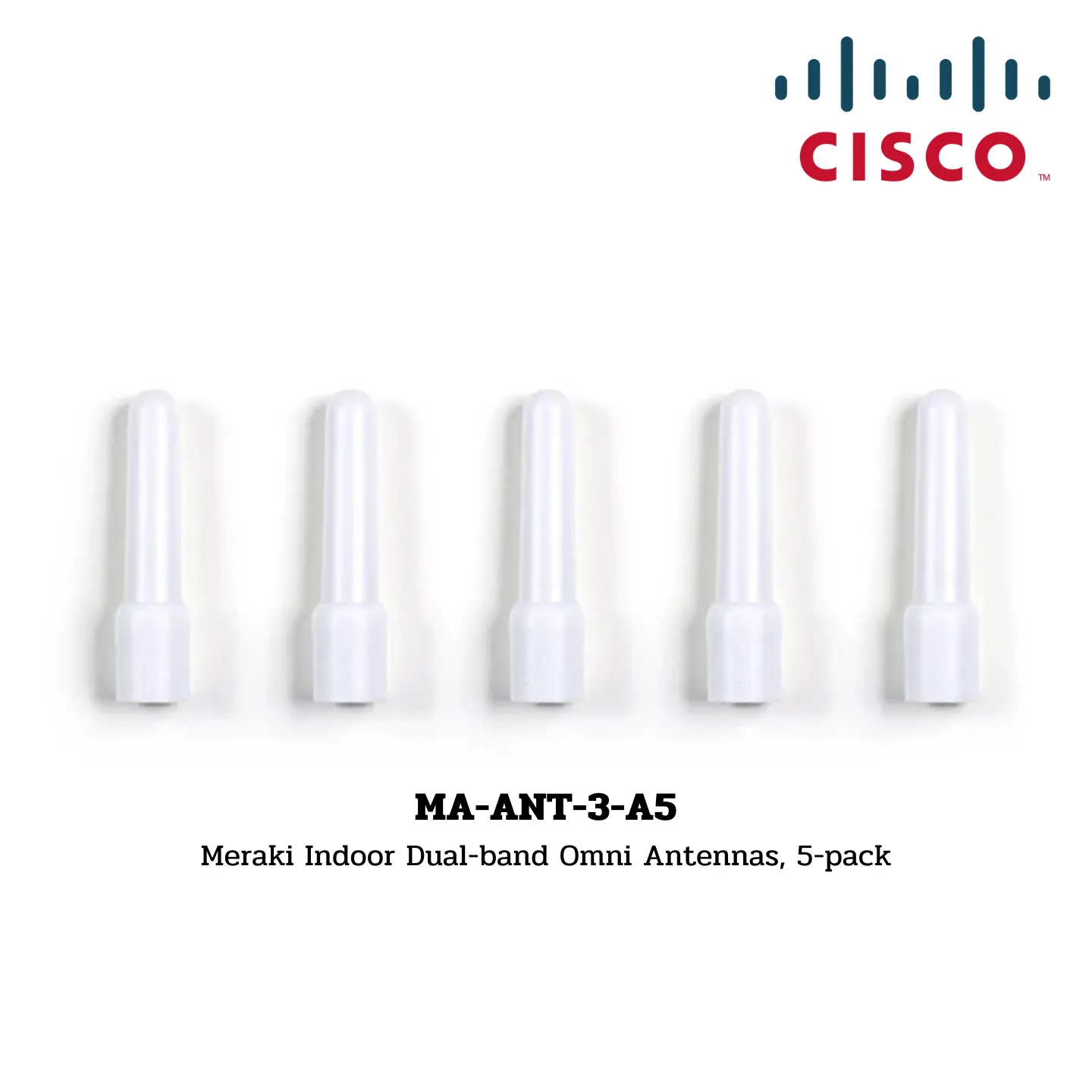

MA-ANT-3-A5
Meraki Indoor Dual-band Omni Antennas, 5-pack
The Meraki MA-ANT-3-A5 is an indoor dual-band omnidirectional antenna set, designed to enhance Wi-Fi coverage in low-density environments.
Overview
The MA-ANT-3-A5 antennas are perfect for low-ceiling installations, making them ideal for environments like schools and hotels where reliable connectivity and wall penetration are important. This set includes five antennas, ensuring comprehensive coverage for improved network performance.
Key Features:
- Dual-Band Frequency Range: Supports 2.400-2.500 GHz and 5.150-5.875 GHz frequencies.
- Gain: Provides 3.8 dBi gain for the 2.4 GHz band and 5.5 dBi gain for the 5 GHz band.
- Beamwidth: Offers omnidirectional coverage with a 360° horizontal beamwidth.
- Connector Type: Equipped with RP-TNC connectors to ensure secure connections.
- Durable Construction: Made from PC-ABS material, ensuring robustness and longevity.
- Compact Size: Dimensions are 3.05” x 0.57” (77.7 mm x 14.5 mm) and weighs 0.076 oz (21.59 g).
- Environmental Suitability: Suitable for indoor use, with operating temperatures ranging from 32°F to 104°F (0°C to 40°C).
Specifications
Electrical:
- Antenna Type: Dipole
- Frequency Range: 2.400-2.500, 5.150-5.875 GHz
- Gain: 3.8 dBi (2.4 GHz) / 5.5 dBi (5 GHz)
- Polarization: Linear, vertical/horizontal
- Half Power Beamwidth (Horizontal): Omni
- Half Power Beamwidth (Vertical): 40°
Cables:
- N/A
Mounting:
- N/A
Physical and Environmental:
- Dimensions: 3.05” x 0.57” (77.7 mm x 14.5 mm)
- Weight: 0.076 oz (21.59 g)
- Material: PC-ABS
- Temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5% to 95%
- Connector: RP-TNC
Regulatory:
- Certified for use with MR42E: MA-ANT-3-A5
