Cisco Wireless LAN Assesssories รุ่น MA-ANT-3-A1

MA-ANT-3-A1

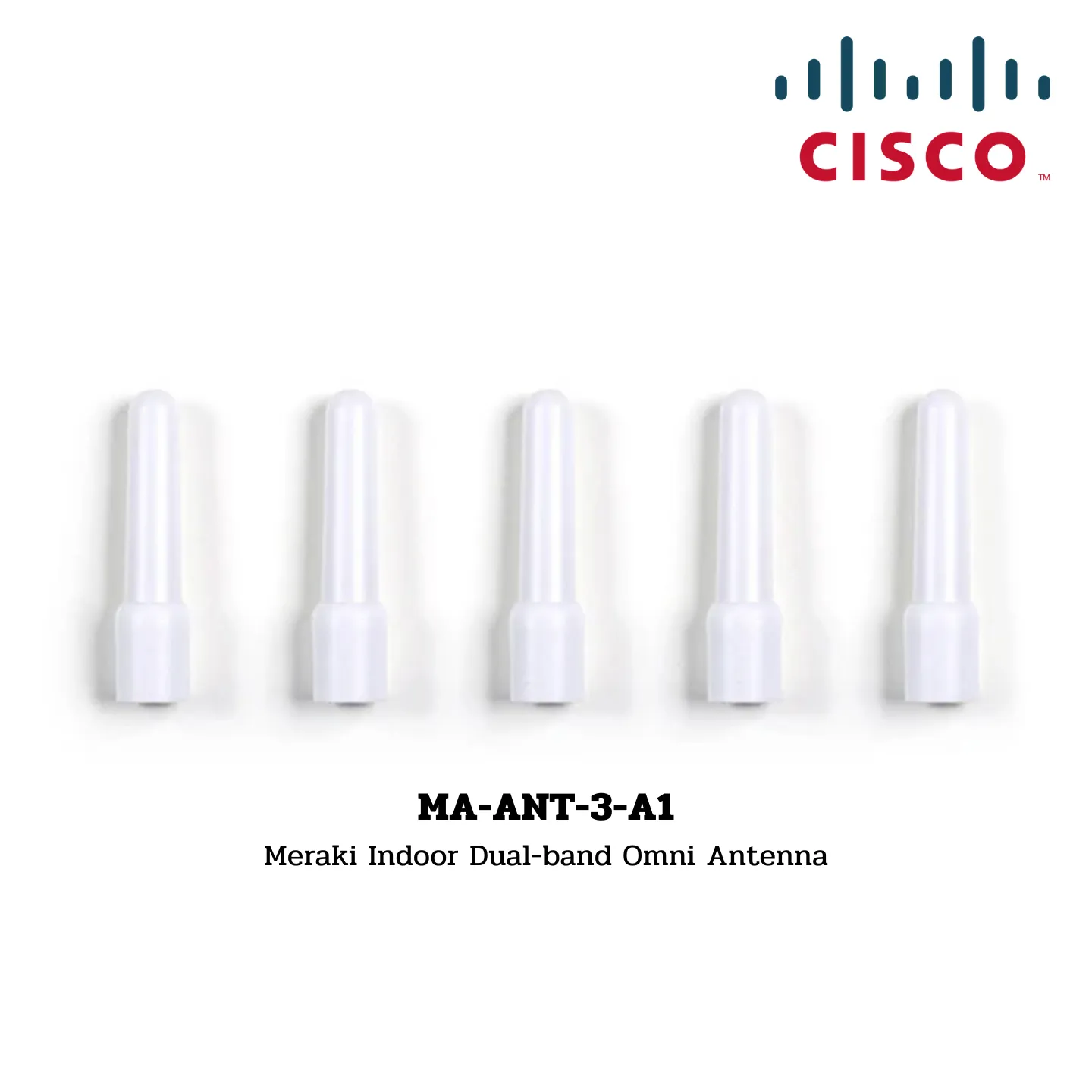

Meraki Indoor Dual-band Omni Antenna

The Meraki MA-ANT-3-A1 is an indoor dual-band omnidirectional antenna designed to enhance Wi-Fi coverage in low-density environments.

Overview

The MA-ANT-3-A1 antenna is ideal for environments like schools and hotels with low ceilings, where wall penetration or extended reach is essential. This omnidirectional antenna ensures reliable Wi-Fi coverage, providing stable connectivity in various settings.

Key Features:

• Dual-Band Frequency Range: Supports both 2.400-2.500 GHz and 5.150-5.875 GHz frequencies.
• Gain: Provides 3.8 dBi gain for the 2.4 GHz band and 5.5 dBi gain for the 5 GHz band.
• Beamwidth: Offers an omnidirectional 360° horizontal coverage.
• Connector Type: Equipped with RP-TNC connectors to ensure secure and stable connections.
• Durable Construction: Made from PC-ABS material, ensuring robustness and longevity.
• Compact Size: Dimensions are 3.05” x 0.57” (77.7 mm x 14.5 mm) and weighs 0.076 oz (21.59 g).
• Environmental Suitability: Suitable for indoor use with operating temperatures ranging from 32°F to 104°F (0°C to 40°C) and humidity tolerance between 5% and 95% relative humidity.

Specifications

• Antenna Type: Dipole
• Frequency Range: 2.400-2.500, 5.150-5.875 GHz
• Gain (Per Antenna Element): 3.8 dBi (2.4 GHz) / 5.5 dBi (5 GHz)
• Polarization: Linear, vertical/horizontal
• Dimensions: 3.05” x 0.57” (77.7 mm x 14.5 mm)
• Weight: 0.076 oz (21.59 g)
