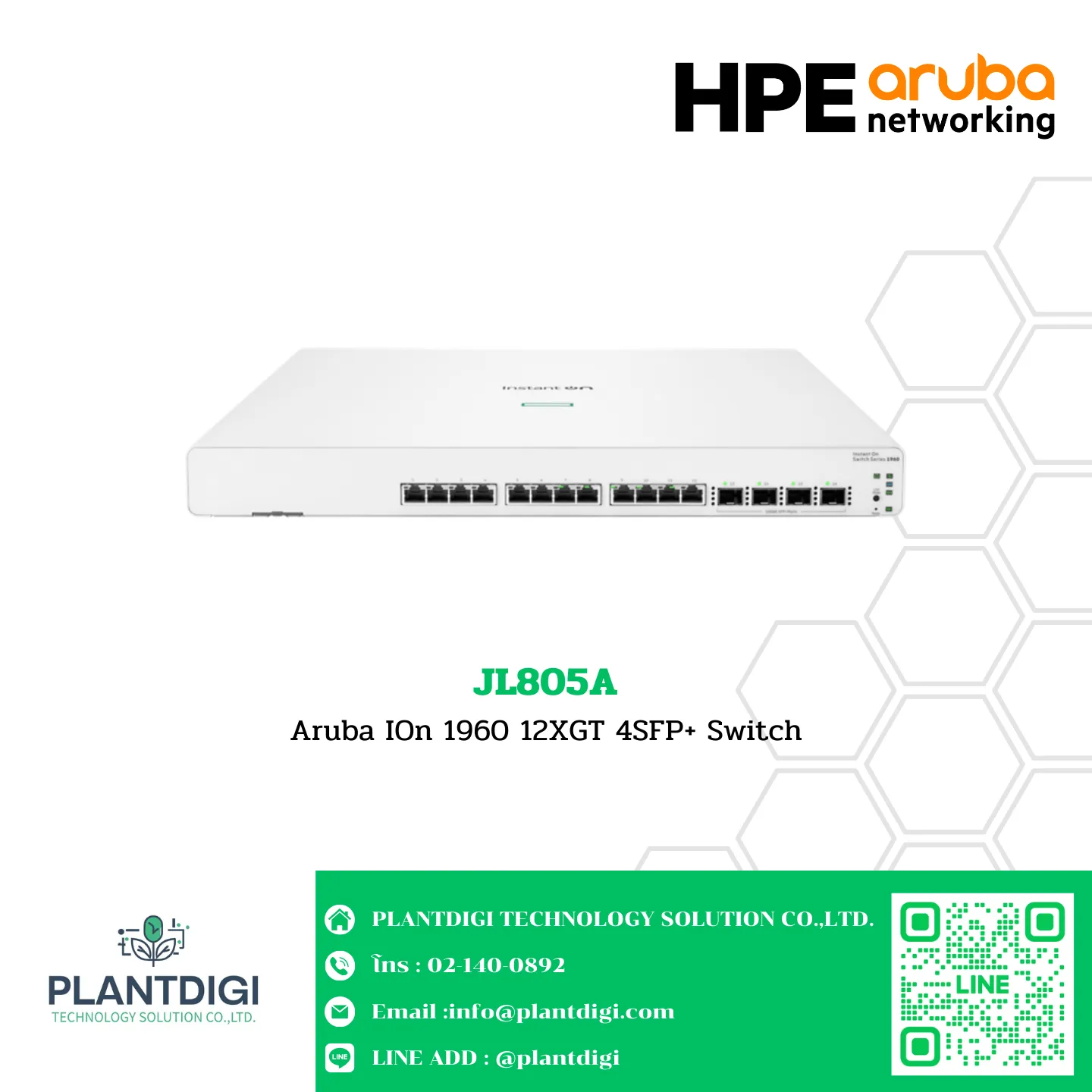

Aruba Instant On 1960 Switch HPE รุ่น JL805A

JL805A
Aruba IOn 1960 12XGT 4SFP+ Switch

Overview

The HPE Networking Instant On Switch 12p 10GBT 4p SFP+ 1960 is an advanced, smart-managed stackable switch designed for business networks and workgroups that require ultra-high performance. This switch simplifies network operations by enabling management through a single IP address and supports both local and cloud-managed stacking.

Specifications

Model:

• JL805A

Differentiator:

• Advanced 10G, smart-managed stackable switch designed for business networks and workgroups needing ultra-high performance.
• Stacks up to four 1960 switches at 1G and 10G speeds, enabling management through a single IP address.
• Supports local and cloud-managed stacking, simplifying network operations.

Power Consumption:

• Maximum:
  • 100-127V: 130W
  • 200-220V: 160W
• Idle:
  • 100-127V: 60W
  • 200-220V: 80W

Input Voltage:

• 100 – 240 VAC

Ports:

• 12 RJ-45 100/1000/10GBASE-T ports
• 4 SFP+ 10GbE ports

Switching Capacity:

• 320 Gbps

Stacking Capabilities:

• 4H height

Throughput:

• 238 pps

Memory and Processor:

• Single Core ARMv7 Cortex-A9 @2Ghz

Operating Temperature:

• 0-40°C, 0-10,000 ft

Management Features:

• Aruba Instant On Cloud
• Web browser
• SNMP Manager

Warranty:

• Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.

Weight:

• 4.3 kg (9.6 lb)

Dimensions:

• 35.05 x 44.25 x 4.4 cm (13.80 x 17.42 x 1.73 in)

Key Features

• Ultra-High Performance: Designed for business networks and workgroups requiring high performance.
• Smart-Managed Stackable Switch: Simplifies network operations with single IP address management and supports both local and cloud-managed stacking.
• Flexible Power Options: Supports a wide range of power inputs for various environments.
• Versatile Connectivity: Equipped with 12 RJ-45 100/1000/10GBASE-T ports and 4 SFP+ 10GbE ports.
• Robust Management Features: Easily set up, monitor, and manage switches using Aruba Instant On Cloud, web browser, or SNMP Manager.
• Comprehensive Warranty: Limited Lifetime Warranty with robust support options.
