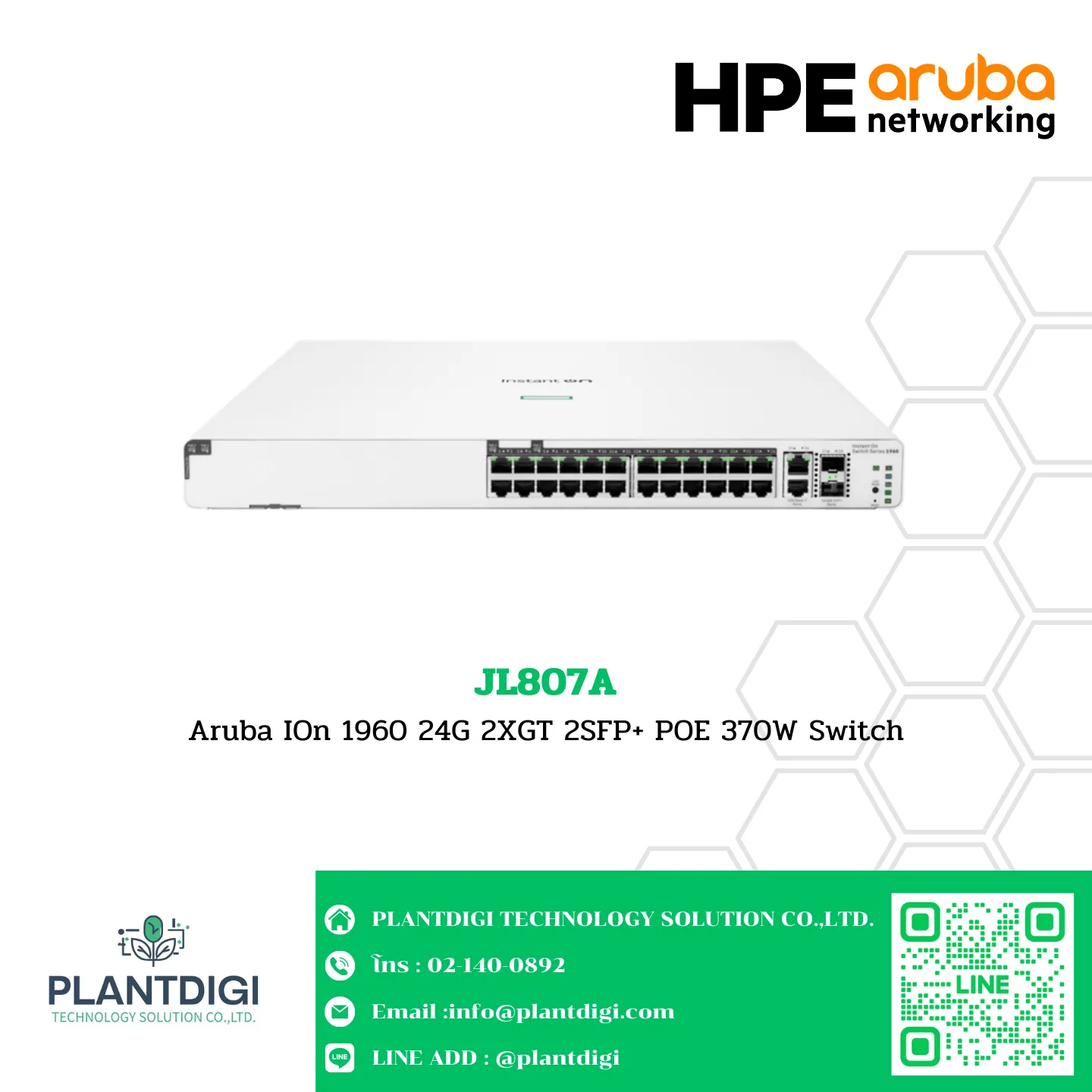

Aruba Instant On 1960 Switch HPE รุ่น JL807A

JL807A
Aruba IOn 1960 24G 2XGT 2SFP+ POE 370W Switch

Overview

The HPE Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960 is a high-performance, smart-managed stackable switch designed for small and growing businesses. It offers fast and easy setup with security you can trust. The switch simplifies network operations by enabling management through a single IP address and supports both local and cloud-managed stacking.

Specifications

Model:

• JL807A

Differentiator:

• High performance, smart-managed stackable switch designed for small and growing businesses.
• Stacks up to four 1960 switches at 1G and 10G speeds, enabling management through a single IP address.
• Supports local and cloud-managed stacking, simplifying network operations.

Power Consumption:

• Maximum:
  • 100-127V: 500W
  • 200-220V: 480W
• Idle:
  • 100-127V: 40W
  • 200-220V: 80W

Input Voltage:

• 100 – 240 VAC

Ports:

• 24 RJ-45 10/100/1000 PoE (CL4 and CL6) ports
• 2 SFP+ 10GbE ports
• 2 10GBASE-T ports

Switching Capacity:

• 128 Gbps

Stacking Capabilities:

• 4H height

Throughput:

• 95 Mpps

Memory and Processor:

• Single Core ARMv7 Cortex-A9 @800MHz

PoE Capability:

• Total 370 W PoE Power (Up to 240 W of Class 6 or 370 W of Class 4 PoE)

Operating Temperature:

• 0-40°C, 0-10,000 ft

Management Features:

• Aruba Instant On Cloud
• Web browser
• SNMP Manager

Warranty:

• Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration

Weight:

• 4.7 kg (10.4 lb)

Dimensions:

• 35.05 x 44.25 x 4.4 cm (13.80 x 17.42 x 1.73 in)

Key Features

• Ultra-High Performance: Designed for small and growing businesses needing high performance.
• Smart-Managed Stackable Switch: Simplifies network operations with single IP address management and supports both local and cloud-managed stacking.
• Flexible Power Options: Supports a wide range of power inputs for various environments.
• Versatile Connectivity: Equipped with 24 RJ-45 10/100/1000 PoE (CL4 and CL6) ports, 2 SFP+ 10GbE ports, and 2 10GBASE-T ports.
• Robust Management Features: Easily set up, monitor, and manage switches using Aruba Instant On Cloud, web browser, or SNMP Manager.
• Comprehensive Warranty: Limited Lifetime Warranty with robust support options.
