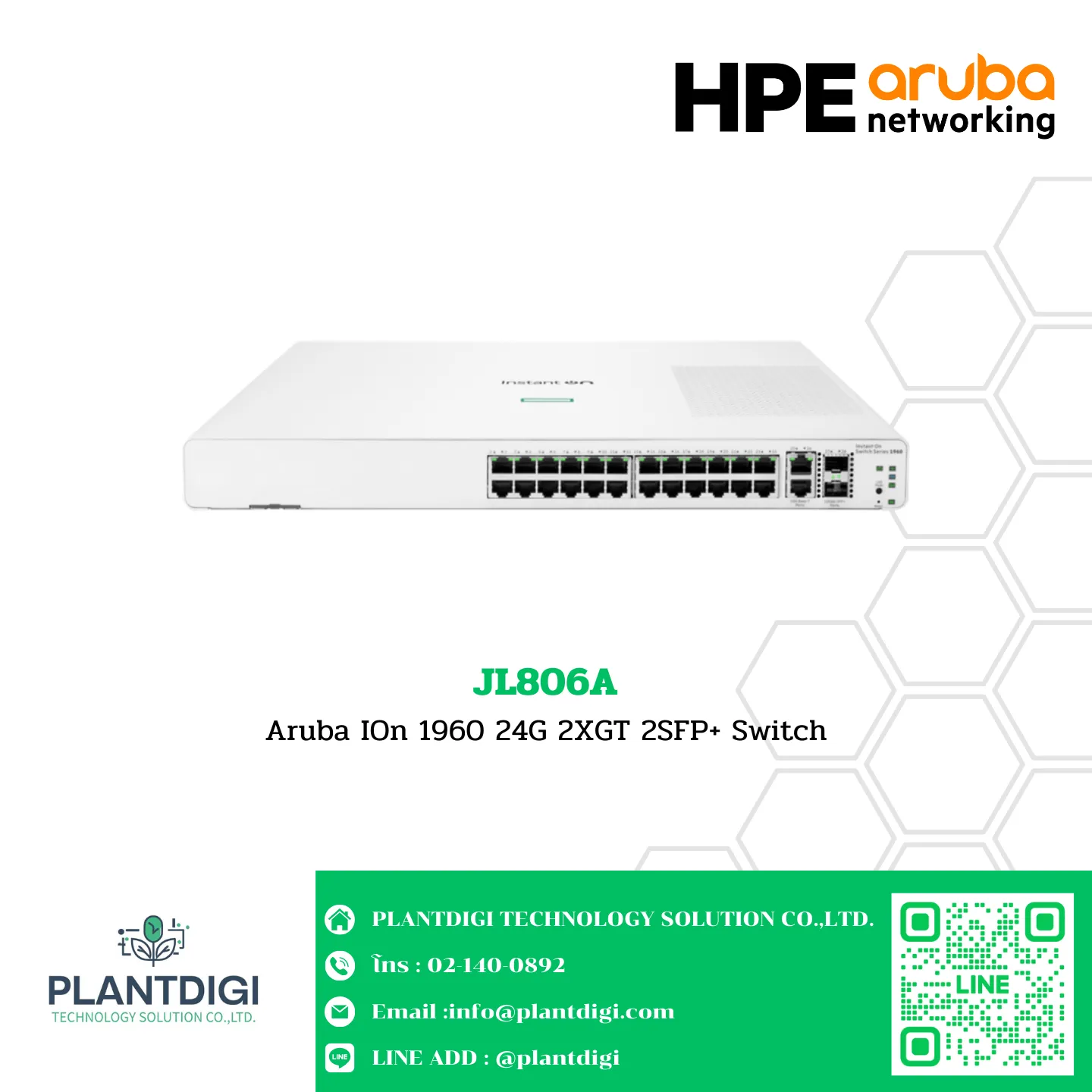

Aruba Instant On 1960 Switch HPE รุ่น JL806A

JL806A
Aruba IOn 1960 24G 2XGT 2SFP+ Switch

Overview

The HPE Networking Instant On Switch 24p Gigabit 2p 10GBT 2p SFP+ 1960 is a high-performance, smart-managed stackable switch designed for small and growing businesses. It offers fast and easy set-up and security you can trust. The switch simplifies network operations by enabling management through a single IP address and supports both local and cloud-managed stacking.

Specifications

Model:

• JL806A

Differentiator:

• High performance, smart-managed stackable switch designed for small and growing businesses.
• Stacks up to four 1960 switches at 1G and 10G speeds, enabling management through a single IP address.
• Supports local and cloud-managed stacking, simplifying network operations.

Power Consumption:

• Maximum:
  • 100-127V: 60W
  • 200-220V: 80W
• Idle:
  • 100-127V: 30W
  • 200-220V: 40W

Input Voltage:

• 100 – 240 VAC

Ports:

• 24 RJ-45 10/100/1000 ports
• 2 SFP+ 10GbE ports
• 2 10GBASE-T ports

Switching Capacity:

• 128 Gbps

Stacking Capabilities:

• 4H height

Throughput:

• 95 Mpps

Memory and Processor:

• Single Core ARMv7 Cortex-A9 @800MHz

Operating Temperature:

• 0-40°C, 0-10,000 ft

Management Features:

• Aruba Instant On Cloud
• Web browser
• SNMP Manager

Warranty:

• Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.

Weight:

• 3.9 kg (8.7 lb)

Dimensions:

• 35.05 x 44.25 x 4.4 cm (13.80 x 17.42 x 1.73 in)

Key Features

• Ultra-High Performance: Designed for small and growing businesses needing high performance.
• Smart-Managed Stackable Switch: Simplifies network operations with single IP address management and supports both local and cloud-managed stacking.
• Flexible Power Options: Supports a wide range of power inputs for various environments.
• Versatile Connectivity: Equipped with 24 RJ-45 10/100/1000 ports, 2 SFP+ 10GbE ports, and 2 10GBASE-T ports.
• Robust Management Features: Easily set up, monitor, and manage switches using Aruba Instant On Cloud, web browser, or SNMP Manager.
• Comprehensive Warranty: Limited Lifetime Warranty with robust support options.
