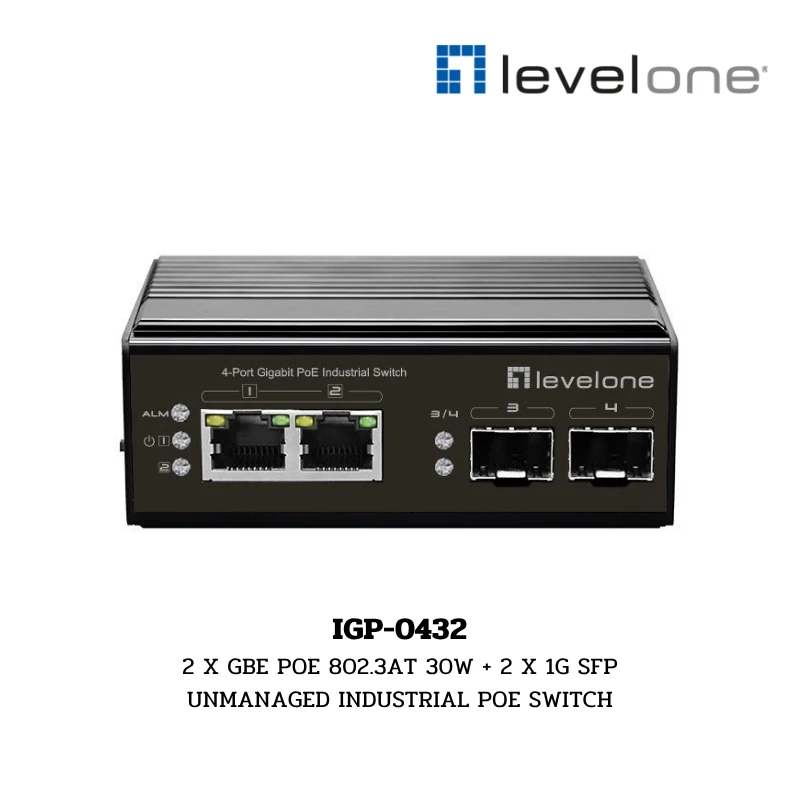

(IGP-0432) Levelone 2 X GBE POE 802.3AT 30W + 2 X 1G SFP UNMANAGED INDUSTRIAL POE SWITCH
รายละเอียดสินค้า
(IGP-0432) Levelone 2 X GBE POE 802.3AT 30W + 2 X 1G SFP UNMANAGED INDUSTRIAL POE SWITCH
The LevelOne IGP-0432 is a compact 4-port Gigabit Industrial PoE Switch designed for mission-critical networks that require reliable performance in harsh environments. It provides 2 x 10/100/1000Base-T PoE ports for connecting powered devices such as industrial IP cameras and wireless access points, plus 2 x Gigabit SFP slots for flexible fiber uplinks over longer distances.
(IGP-0432) Levelone 2 X GBE POE 802.3AT 30W + 2 X 1G SFP UNMANAGED INDUSTRIAL POE SWITCH
LevelOne IGP-0432 เป็นสวิตช์ PoE ระดับอุตสาหกรรม (Industrial Switch) แบบ Unmanaged ที่ออกแบบมาเพื่อการใช้งานในสภาพแวดล้อมที่โหดร้ายและอุณหภูมิที่สูงหรือต่ำจัด มาพร้อมพอร์ต Gigabit PoE+ จำนวน 2 พอร์ต (30W ต่อพอร์ต) และพอร์ต SFP สำหรับการเชื่อมต่อ Fiber Optic อีก 2 พอร์ต ตัวเครื่องมีความทนทานสูงด้วยมาตรฐาน IP30 รองรับการติดตั้งบนรางปีกนก (DIN-rail) และมีระบบสำรองไฟแบบ Dual Power Input เพื่อความเสถียรสูงสุดของระบบเครือข่าย
-
Industrial PoE Ports: 2 x 10/100/1000Base-T PoE ports and 2 x Gigabit SFP slots for flexible copper and fiber deployment
-
PoE Power Budget: IEEE 802.3af/at compliant with up to 30W per port and 60W total PoE budget for IP cameras, APs and other PDs
-
Rugged Reliability: IP30 metal enclosure with -40°C to 75°C operating temperature for harsh industrial and outdoor environments
-
Electrical Protection: 6KV surge protection plus ESD protection on each port to ensure stable operation in noisy power conditions
-
Gigabit Performance: 10/100/1000 Mbps wire-speed transmission with auto-negotiation and auto-MDI/MDIX on all copper ports
-
PoE Auto-Check: Automatic detection and restart of frozen PoE devices to reduce on-site maintenance and improve uptime
-
Flexible Mounting: Supports DIN-rail installation for easy integration into industrial cabinets and control panels
ข้อมูลจำเพาะ (Specification)
| รายการ (Feature) | รายละเอียด (Description) |
| Model Number | IGP-0432 |
| Industrial PoE Ports | 2 x 10/100/1000Base-T PoE ports and 2 x Gigabit SFP slots for flexible copper and fiber deployment |
| PoE Power Budget | Total 60.00 (IEEE 802.3af/at compliant with up to 30W per port) |
| Gigabit Performance | 10/100/1000 Mbps wire-speed transmission with auto-negotiation and auto-MDI/MDIX on all copper ports |
| Rugged Reliability | IP30 metal enclosure with -40°C to 75°C operating temperature for harsh industrial and outdoor environments |
| Electrical Protection | 6KV surge protection plus ESD protection on each port to ensure stable operation in noisy power conditions |
| PoE Auto-Check | Automatic detection and restart of frozen PoE devices to reduce on-site maintenance and improve uptime |
| Flexible Mounting | Supports DIN-rail installation for easy integration into industrial cabinets and control panels |
| Power Redundancy | Dual Power Input |
| PoE Supported | Yes |
| Concurrent ports | Total 4.00 |
| Fanless | Yes |
| Manageable | No |
| Grade | Industrial |
| Approval and Compliance |
CE/FCC IEC61000-4-2(ESD: 6KV:contact / 8KV:air) IEC61000-4-5(Surge: 6KV) |
| Operating humidity | 0% RH ~ 95% RH |
| Operating temperature | -40°C ~ 75°C |
| Storage humidity | 0% RH ~ 95% RH |
| Storage temperature | -40°C ~ 85°C |
| Package Contents |
IGP-0432 Power Terminal Block Quick Installation Guide |
| Color | Black |
| EAN | 4015867228180 |
| Dimensions (W x D x H) | 130 x 110 x 62 mm |
| Product weight (kg) | 0.3 |
| Backplane (Gbps) | 8 |
| Data Rate | 1Gbps |
| Indicators | Power, Alarm/Act, PoE, 10/100/1000Mbps |
| MAC address table | 8K |
| Mount | DIN rail mount |
| Packet buffer | 5.95 Mpps |
| Pin assignment and polarity | 1/2 (+), 3/6 (-) |
| Port Configuration | 2 port 10/100/1000 Mbps RJ45 and 2 port Gigabit SFP |
| Power consumption | <5W |
| Power input | Redundant Dual DC 48V-57V |
| Power Output | Provides 2 PoE ports, up to 30W single port, Total PoE Budget 60W |
| Power supply | VDC 48~57V, (Power supply unit is to be ordered separately) |
| Power supply included | No |
| Standard | IEEE 802.3u 100-BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Full Duplex, IEEE 802.3z Gigabit Fiber-Optic, IEEE 802.3af PoE, IEEE 802.3at PoE+ |
