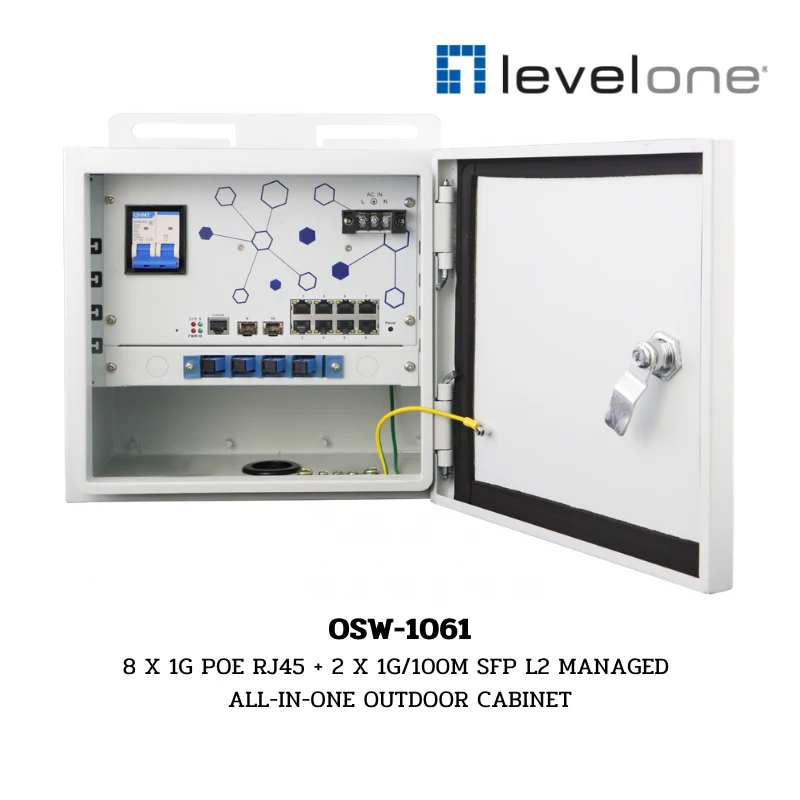

(OSW-1061) Levelone 8 X 1G POE RJ45 + 2 X 1G/100M SFP L2 MANAGED ALL-IN-ONE OUTDOOR CABINET
LevelOne OSW-1061 เป็นตู้เครือข่ายภายนอกอาคารอัจฉริยะแบบ All-in-One ที่อัปเกรดประสิทธิภาพการจัดการระดับ Layer 2 (L2 Managed) เหมาะสำหรับงานโครงสร้างพื้นฐานที่ต้องการการควบคุมขั้นสูง มาพร้อมพอร์ต Gigabit PoE จำนวน 8 พอร์ต ที่รองรับมาตรฐานสูงสุดถึง 802.3bt (PoE++) และจ่ายไฟรวมได้สูงถึง 185 วัตต์ ภายในตู้มาตรฐาน IP55 ที่ทนทานต่อสภาพอากาศ พร้อมติดตั้งระบบจัดการคิว (QoS), ความปลอดภัยเครือข่าย (ACL/802.1X), และโปรโตคอล Spanning Tree (STP/RSTP/MSTP) เพื่อความเสถียรสูงสุดของระบบ
-
Port configuration: 8 x 10/100/1000Mbps (Megabits per second) PoE RJ45 ports and 2 x Gigabit SFP uplink slots for flexible copper/fiber deployment
-
PoE capability: IEEE 802.3af/at compliant with a total 185W (Watts) PoE budget to power cameras, APs and other PDs
-

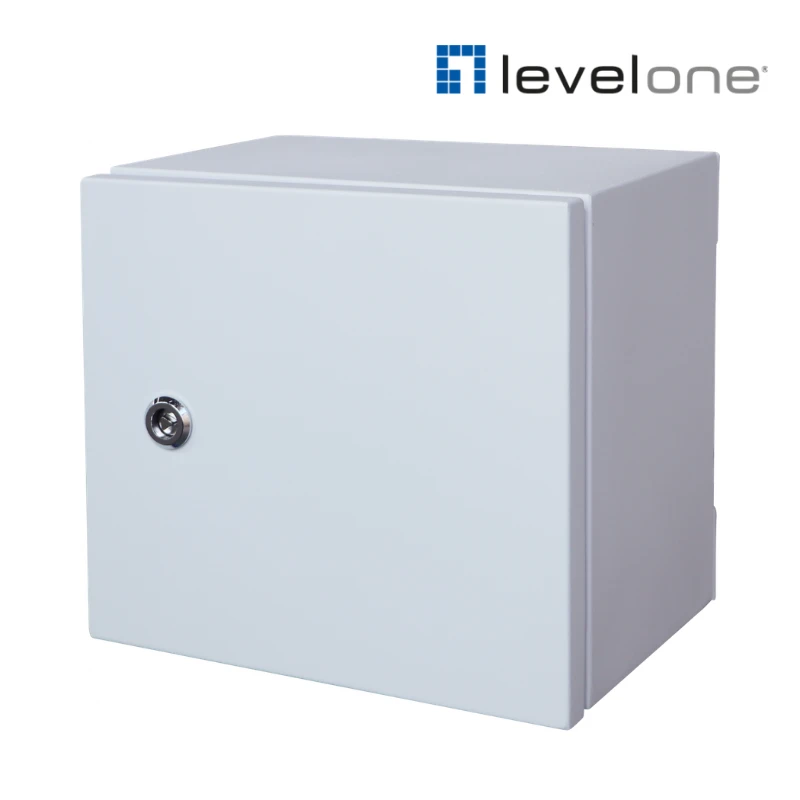

Industrial outdoor design: IP55-rated (Ingress Protection Rating) weatherproof enclosure for wall, pole or cabinet mounting in harsh environments
-
Robust protection: Built-in 6KV (Kilovolts) surge and 6KV (Kilovolts) contact / 8KV (Kilovolts) air ESD protection to reduce lightning and power spike damage
-
Simplified fiber handling: Includes 4 x SC fiber tray slots for neat and secure fiber organization inside the enclosure
-
L2 managed features: Web-based management interface with a full suite of Layer 2 controls for small outdoor networks
-
Extended reach: Supports 250m (Meters) Extended PoE in 10Mbps (Megabits per second) mode to connect distant outdoor devices without extra repeaters
-
Reliable performance: Gigabit wire-speed forwarding with IEEE 802.3x Flow Control to help prevent packet loss
-
Ideal applications: Designed for outdoor IP surveillance, wireless backhaul, remote buildings and industrial sites
ข้อมูลจำเพาะ (Specification)
| รายการ (Feature) | รายละเอียด (Description) |
| Model Number | OSW-1061 |
| Features |
QoS: Traffic classification based on IEEE 802.1p CoS, IPv4/IPv6 precedence/ToS/DSCP, Rate Limiting (Ingress/Egress). Spanning Tree: STP (802.1D), RSTP (802.1w), MSTP (802.1s). VLAN: 802.1Q tag-based (up to 4K IDs), Port-based VLAN, Port Isolation. Security: 802.1X, ACL, Port Security, MAC Filter, IP Source Guard, SSH, System Password protection. Management: Console, SNMP v1/v2/v3, Web, Telnet, RMON, DHCP v4/v6 Snooping (Option 82). |
| PoE Power Budget | Total 185.00 |
| PoE Supported | Yes (Supports 802.3af/at/bt) |
| Concurrent ports | Total 10.00 |
| Fanless | No |
| Manageable | Yes (L2 Managed) |
| Grade | Industrial / Outdoor |
| Approval and Compliance | CE/FCC |
| Operating humidity | 0% RH ~ 90% RH |
| Operating temperature | -20°C ~ 65°C |
| Storage humidity | 0% RH ~ 90% RH |
| Storage temperature | -40°C ~ 75°C |

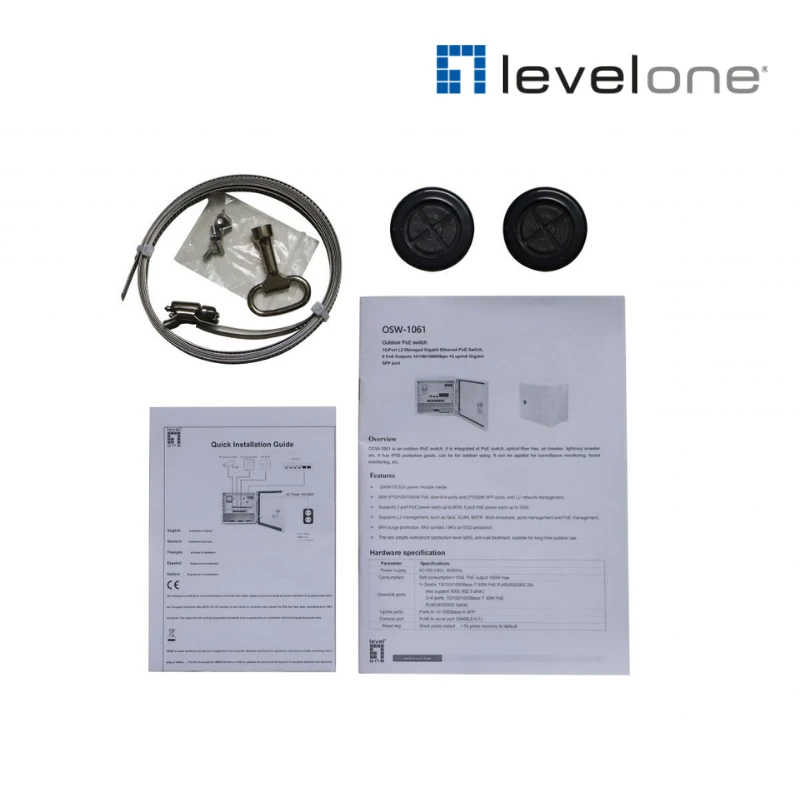

| Package Contents | QIG, ECDoC, Pole Mount Ring 7″, Waterproof Pad x 2, Box Key |
| Color | White |
| EAN | 4015867236444 |
| Dimensions (W x D x H) | 280 x 200 x 250 mm |
| Product weight (kg) | 8 kg |
| IP grade | IP55 |
| Backplane (Gbps) | 20 |
| Data Rate | 1Gbps |
| Flash memory size | 120 |
| Packet forwarding rate | 14.88 Mpps |
| Indicators | Power / Link Act |
| Jumbo frame (KB) | 9K |
| MAC address table | 8K |

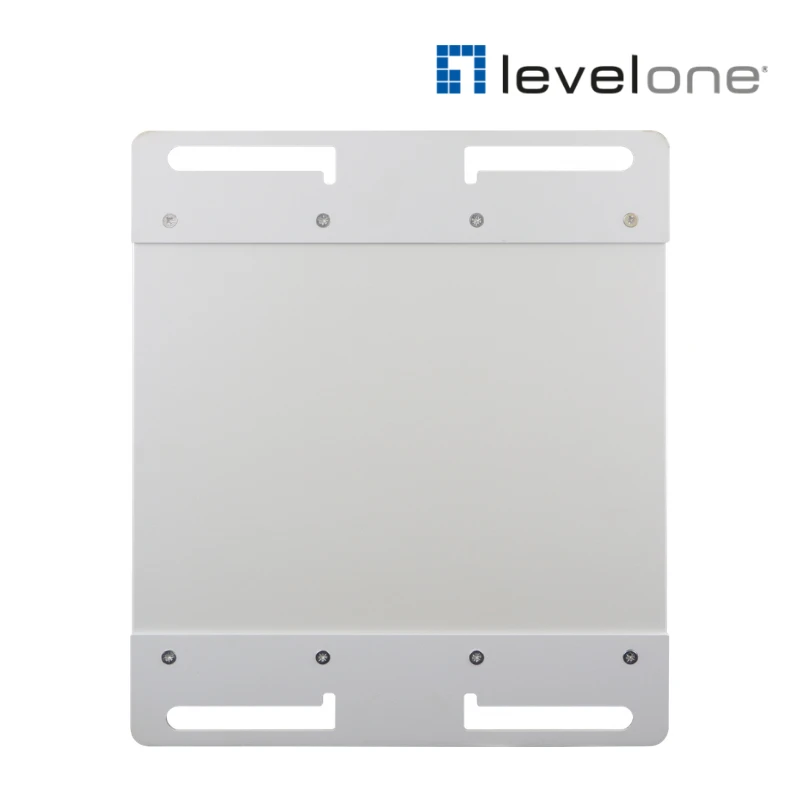

| Mount | Pole mount |
| MTBF | 4,000,000 hours |
| Pin assignment and polarity | 1/2 (+), 3/6 (-) |
| Port Configuration | 10/100/1000 Mbps PoE x 8, SFP x 2, SC Fiber Tray x 4, AC IN |
| Power consumption | 200 Watt |
| Power input | VAC 100-240V, 50/60Hz |
| Power Output | PoE output max. 185W |
| Power supply | Industrial Power included (Yes) |
| RAM size | 1M |
| Standard | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z, 802.3ah, 802.3af, 802.3at, 802.3bt, 802.1ag, 802.1s, 802.1X, 802.1ab (LLDP), 802.3ad, 802.1w, 802.1d, 802.1p, 802.1v, 802.1Q |
