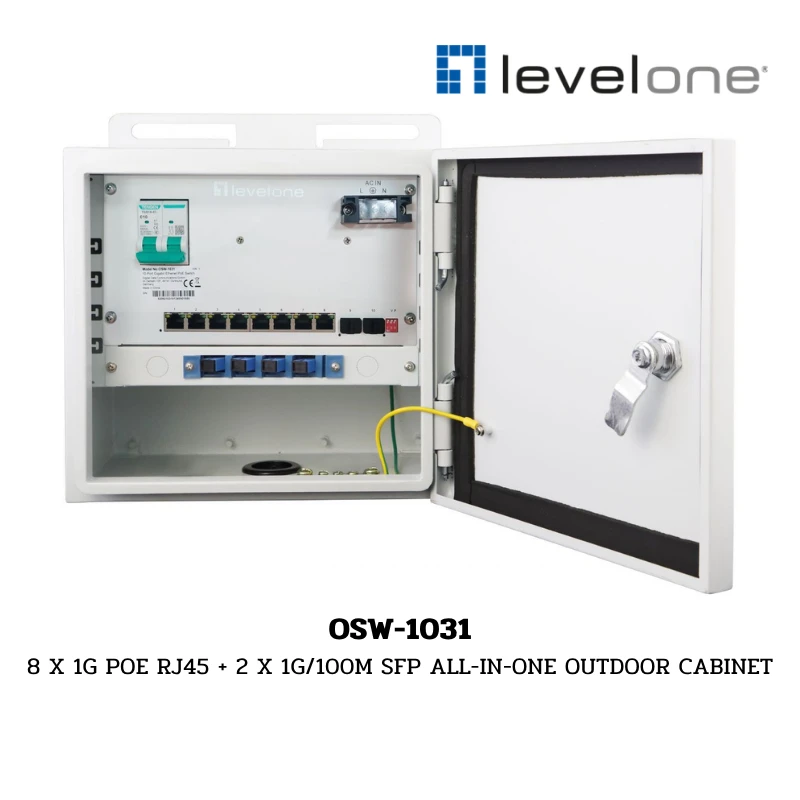

(OSW-1031) Levelone 8 X 1G POE RJ45 + 2 X 1G/100M SFP ALL-IN-ONE OUTDOOR CABINET
LevelOne OSW-1031 เป็นโซลูชันตู้เครือข่ายภายนอกอาคารแบบ All-in-One ที่ออกแบบมาเพื่อความทนทานและพร้อมใช้งานทันที ประกอบด้วยสวิตช์ Gigabit PoE 8 พอร์ต และพอร์ต SFP สำหรับ Uplink 2 พอร์ต ภายในตู้เกรดอุตสาหกรรมมาตรฐาน IP55 มาพร้อมถาดจัดเก็บสายไฟเบอร์ (SC Fiber Tray) และระบบสำรองไฟที่ติดตั้งมาในตัว รองรับการทำงานในอุณหภูมิที่กว้างและมีระบบป้องกันไฟกระชากขั้นสูง เหมาะสำหรับงานติดตั้งกล้องวงจรปิดหรือระบบเครือข่ายในพื้นที่สาธารณะและจุดติดตั้งเสาไฟฟ้า
-
Outdoor PoE edge switch: 8 x Gigabit PoE RJ45 ports and 2 x Gigabit SFP uplink slots for cameras, APs and outdoor devices
-
PoE capability: IEEE 802.3af/at compliant with up to 30W (Watts) per port and a total 115W (Watts) PoE power budget
-

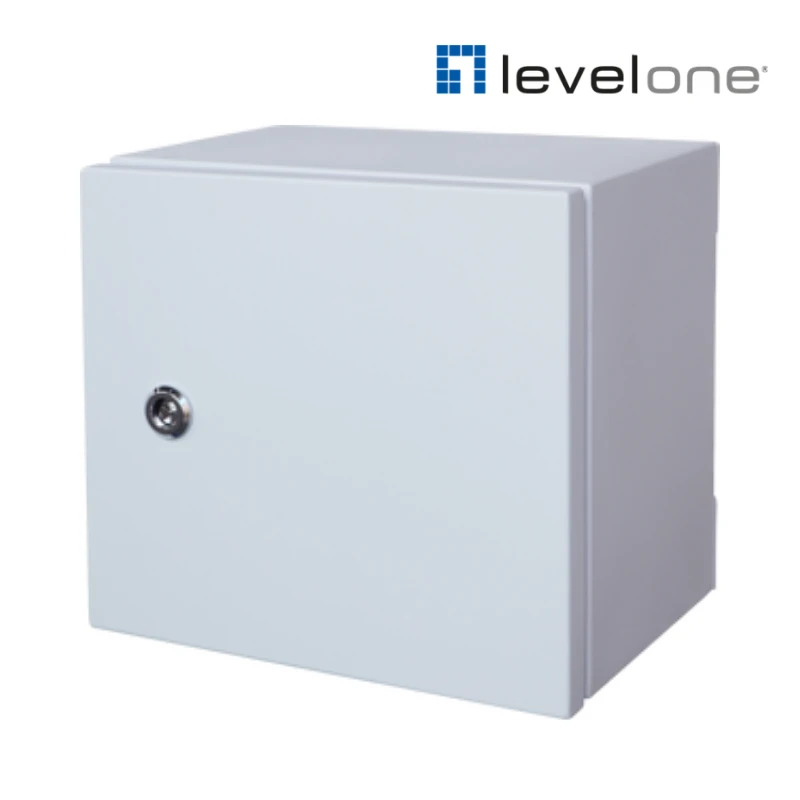

Rugged outdoor design: IP55 (Ingress Protection Rating) weatherproof enclosure suitable for wall, pole or cabinet mounting in harsh environments
-
Electrical protection: Built-in 6KV (Kilovolts) surge and 6KV (Kilovolts) contact / 8KV (Kilovolts) air ESD protection to help guard against lightning and spikes
-
Wire-speed performance: 10/100/1000Mbps (Megabits per second) auto-negotiation and auto-MDI/MDIX on all copper ports for flexible cabling
-
Easy hardware control: DIP switch configuration for PoE Auto-Check and VLAN mode without complex software setup
-
Reliable data delivery: IEEE 802.3x Flow Control helps reduce packet loss for stable video and data transmission
-
Simple deployment: Unmanaged, plug-and-play operation with status LEDs for quick installation and troubleshooting
-
Ideal applications: Perfect for outdoor IP surveillance, Wi-Fi coverage, gardens, courtyards and remote site networks
ข้อมูลจำเพาะ (Specification)
| รายการ (Feature) | รายละเอียด (Description) |
| Model Number | OSW-1031 |
| Features |
V mode (VLAN): 1~8 ports are isolated, only can communicate with the uplink ports; restrain the network storm; close flow control. P mode (PoE Auto-Check): PoE Auto-Check function is open/closed by dip switch. |
| Protection Features |
● Surge Protection 6KV, Standard IEC61000-4-5 ● ESD Protection 6KV, contact / 8KV: air, Standard IEC61000-4-2 |
| PoE Power Budget | Total 115.00 |
| PoE Supported | Yes |
| Concurrent ports | Total 10.00 |
| Fanless | No |
| Manageable | No |
| Grade | Industrial / Outdoor |
| Approval and Compliance | CE/FCC |
| Operating humidity | 0% RH ~ 90% RH |
| Operating temperature | -20°C ~ 65°C |
| Storage humidity | 0% RH ~ 90% RH |
| Storage temperature | -40°C ~ 75°C |

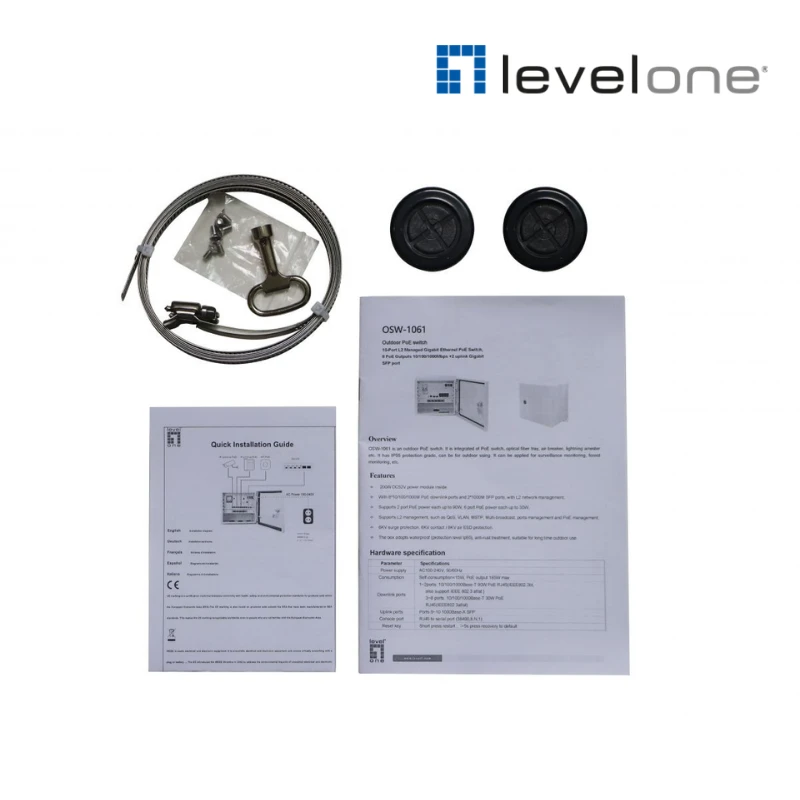

| Package Contents | QIG, ECDoC, Pole Mount Ring 7″, Waterproof Pad x 2, Box Key |
| Color | White |
| EAN | 4015867236437 |
| Dimensions (W x D x H) | 280 x 200 x 250 mm |
| Product weight (kg) | 8 kg |
| IP grade | IP55 |
| Backplane (Gbps) | 20 |
| Data Rate | 1Gbps |
| Dip switch | V: VLAN Mode / P: PoE Auto-Check Mode |
| Indicators | Power / Link Act |
| Jumbo frame (KB) | 9K |
| MAC address table | 4K |

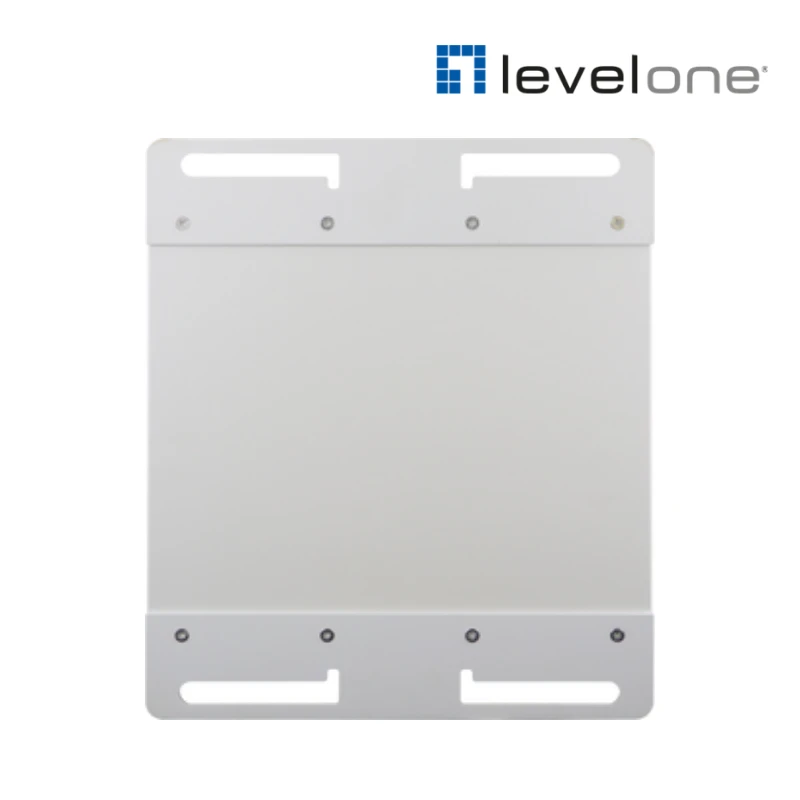

| Mount | Pole mount |
| MTBF | 4,000,000 hours |
| Packet buffer | 12KB |
| Pin assignment and polarity | 1/2 (+), 3/6 (-) |
| Port Configuration | 10/100/1000 Mbps PoE x 8, SFP x 2, SC Fiber Tray x 4, AC IN, Dip Switch |
| Power consumption | 120 Watt |
| Power input | VAC 100-240V, 50/60Hz |
| Power Output | PoE output max. 115W |
| Power supply | Industrial Power included (Yes) |
| Standard | • IEEE 802.3 10-BASE-T, 802.3u 100-BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X, 802.3 af/at |
