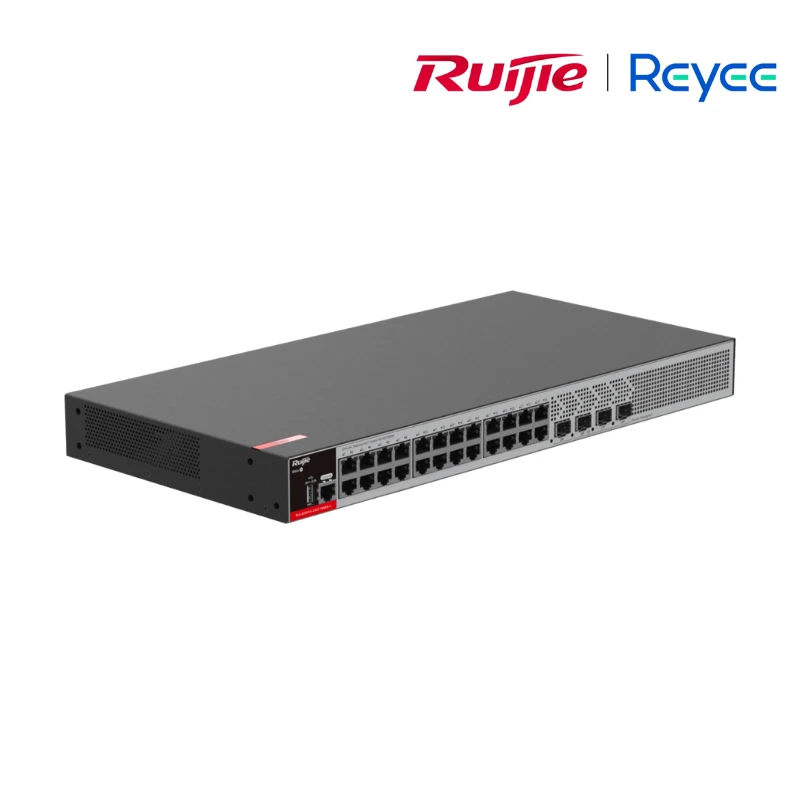

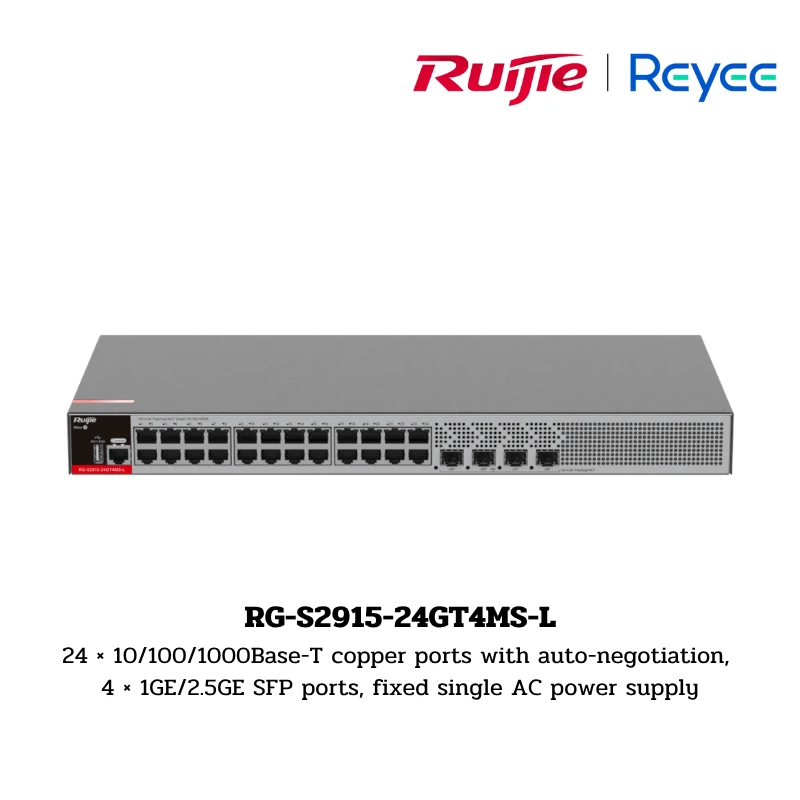

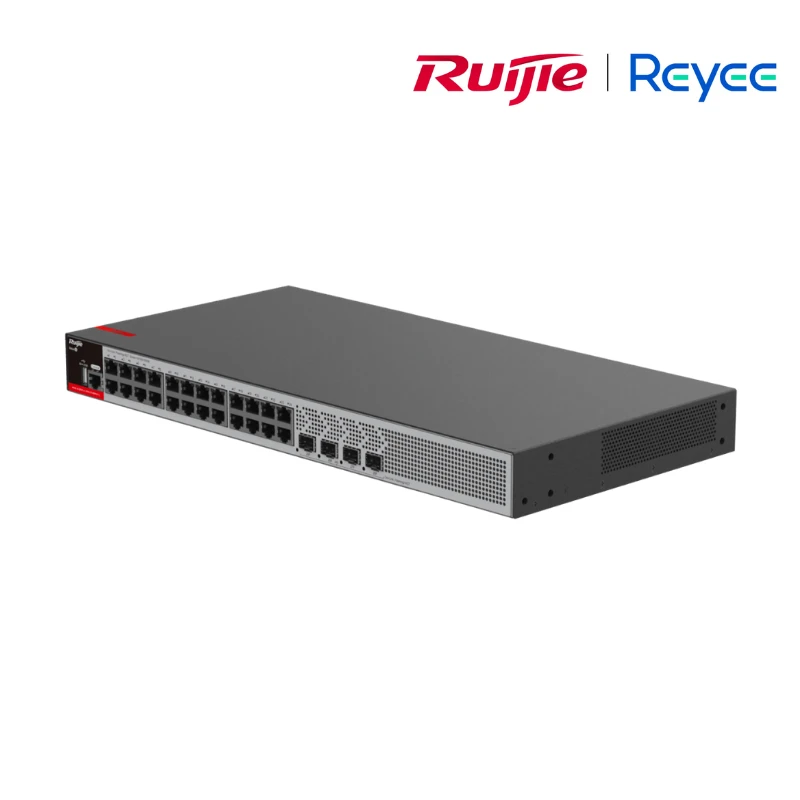

(RG-S2915-24GT4MS-L) Ruijie Reyee 24 × 10/100/1000Base-T copper ports with auto-negotiation, 4 × 1GE/2.5GE SFP ports, fixed single AC power supply
สวิตช์เครือข่ายระดับองค์กร รองรับพอร์ต Gigabit 24 ช่อง พร้อม SFP รองรับความเร็ว 1GE/2.5GE จำนวน 4 ช่อง เหมาะสำหรับงาน Access หรือ Distribution ที่ต้องการประสิทธิภาพสูงและเงียบด้วยระบบ Fanless ไม่มีพัดลม ลดเสียงรบกวน รองรับการจัดการเครือข่ายและ Routing พร้อมทรัพยากรภายใน เช่น CPU, Memory และ Table ต่าง ๆ สำหรับงาน Network จริงจัง
ข้อมูลจำเพาะ (Specification)
| รายการ | รายละเอียด (Description) |
|---|---|
| Fixed Service Ports | 24 x 10/100/1000BASE-T ports; 4 x 1GE/2.5GE SFP ports |
| Fixed Management Port | 1 x RJ45 Console Port |
| USB Port | 1 x USB Port |
| Packet Forwarding Rate | 51 Mpps |
| Switching Capacity | 68 Gbps |
| CPU | Built-in single-core CPU, 1.2 GHz |
| Flash Memory | 64 MB |
| Memory | 512 MB DDR4 |
| Switch Buffer | 512 KB |
| MAC Table Capacity | 16,000 |
| ARP Table | 512 |
| Routing Table Size (IPv4/IPv6) | 64 |
| ACL Entries | 500 |
| Unit Dimensions (W x D x H) | 440 x 220 x 43.5 mm |
| Shipping Dimensions (W x D x H) | 570 x 490 x 390 mm |
| Rack Height | 1 RU |
| Unit Weight | 2.5 kg |
| Shipping Weight | 18.18 kg |
| Power Supply | 1 x Fixed Power Supply |
| Power Input | Rated: 100–240V AC, 50–60 Hz; Max: 90–264V AC, 47–63 Hz; Max Current: 0.6 A |
| Maximum Power Consumption | 15.6 W |
| PoE Port | Not Supported |
| Energy Saving | Energy Efficient Ethernet (EEE) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Altitude | 0 to 5,000 m |
| MTBF | 200,000 hours |
| Heat Dissipation | Fanless design, natural heat dissipation |
| Acoustic Noise | Fanless |
| Cable Hot Swapping | Supported for all ports |
| Fan Monitoring | Fanless design |
| ESD Protection | Air: 8 kV / 15 kV; Contact: 6 kV / 8 kV |
| Surge Protection | Power port: 6 kV / 2 kV; Telecom port: 10 kV |
| Safety Regulation | IEC 62368-1 |
| EMC Regulation | EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
