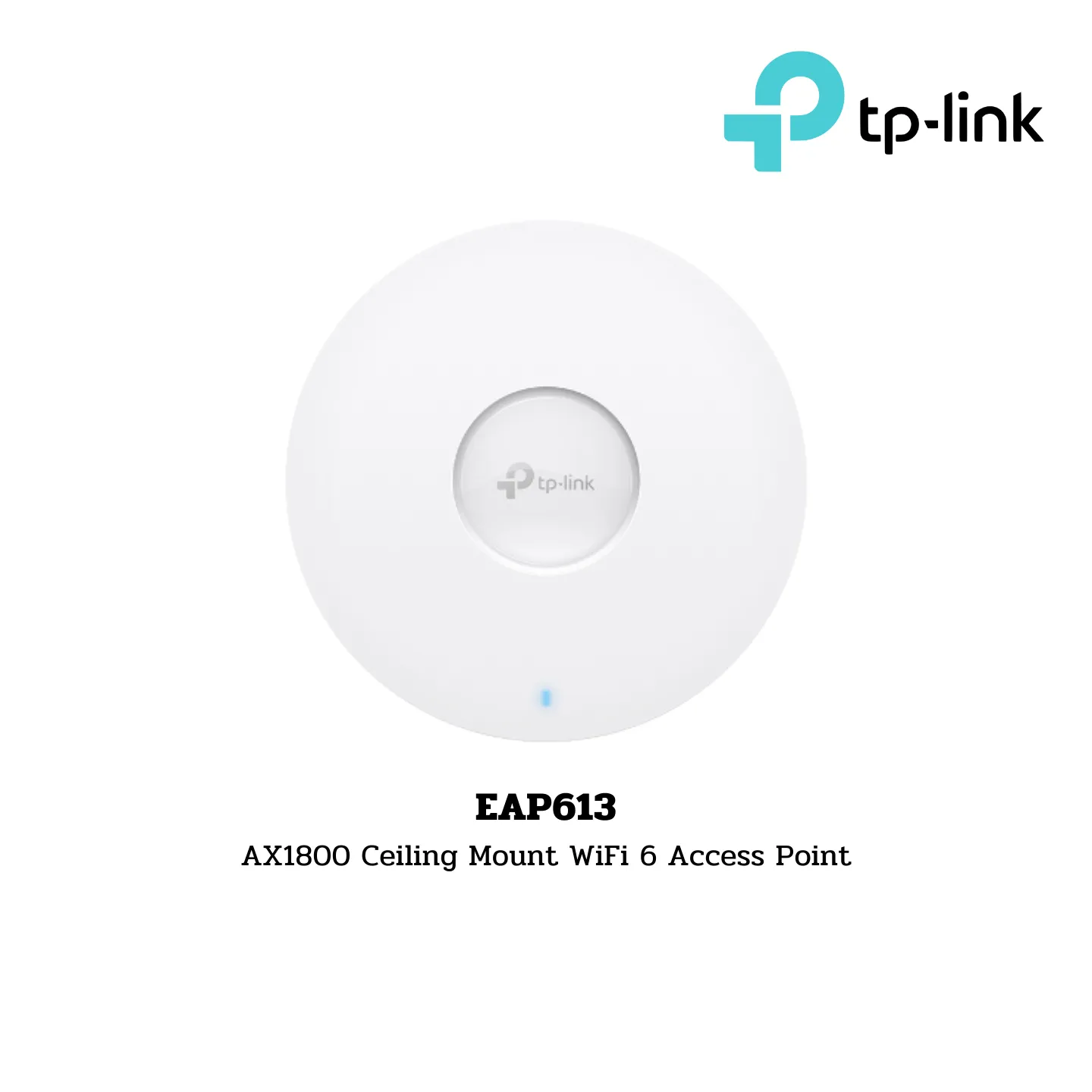

EAP613
AX1800 Ceiling Mount WiFi 6 Access Point
Brand:
- TP-Link
Port:
- 1 Gigabit RJ45 Port
Speed:
- 574 Mbps at 2.4 GHz + 1201 Mbps at 5 GHz
Feature:
- 802.3at PoE
- 4× Internal Antennas
- MU-MIMO
- Seamless Roaming
- Band Steering
- Beamforming
- Load Balance
- Airtime Fairness
- Centralized Management by Omada SDN Controller
- Omada App
Note: No Power Adapter & PoE Injector included.
Hardware Features:
Interface:
- 1× Gigabit Ethernet (RJ-45) Port
- Button: Reset
Power Supply:
- 802.3at PoE
- 48 V Passive PoE
- 12 V / 1 A DC (Power Adapter IS NOT included)
Power Consumption:
- 11.0W (For PoE)
- 9.9W (For DC)
Dimensions (W x D x H): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) (V2 and above)
Antenna Type: Internal Omni Antenna
- 2.4 GHz: 2× 4 dBi
- 5 GHz: 2× 5 dBi
Mounting: Ceiling / Wall Mounting (Kits included), Junction Box Mounting
Wireless Features:
Coverage: 115㎡ (1250 ft²)
Wireless Client Capacity: 250+**
Concurrent Clients: 250+**
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
- 5 GHz: Up to 1201 Mbps
- 2.4 GHz: Up to 574 Mbps
Wireless Functions:
- 1024-QAM
- 4× Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS (WMM)
- MU-MIMO
- Seamless Roaming §
- Omada Mesh§
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security:
- Captive Portal Authentication§
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power:
- CE:
- <20 dBm (2.4 GHz, EIRP)
- <23 dBm (5 GHz, EIRP)
- <25 dBm (5 GHz)
- FCC:
- <25 dBm (2.4 GHz)
- <25 dBm (5 GHz)
Management:
Omada App: Yes
Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller OC300
- Omada Hardware Controller OC200
- Omada Software Controller
Cloud Access: Yes, through OC300, OC200, Omada Software Controller, Omada Cloud-Based Controller
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes (Requiring the use of Omada Cloud-Based Controller)
Others:
Certification: CE, FCC, RoHS
Package Contents:
- EAP613
- Ceiling/Wall Mounting Kits
- Installation Guide
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment:
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
