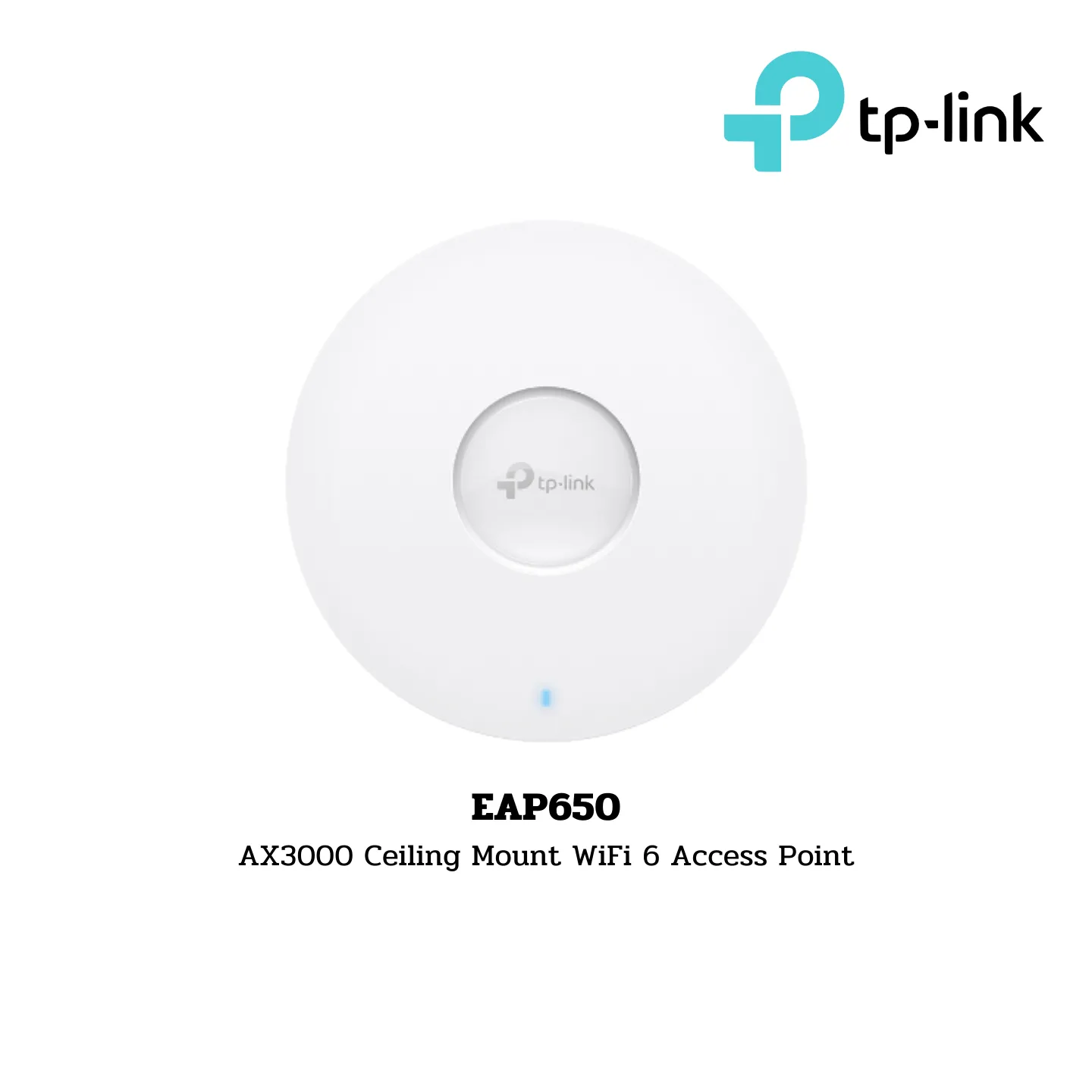

TP-Link Omada Access Points รุ่น EAP650

EAP650
AX3000 Ceiling Mount WiFi 6 Access Point

Brand:

• TP-Link

Port:

• 1× 1Gbps RJ45 Port

Speed:

• 574 Mbps at 2.4 GHz + 2402 Mbps at 5 GHz

Feature:

• 802.3at PoE and 12V DC
• 2× Internal Antennas
• 160MHz Supported
• MU-MIMO
• Seamless Roaming
• Band Steering
• Beamforming
• Load Balance
• Airtime Fairness
• Centralized Management by Omada SDN Controller
• Omada App

Hardware Features:

Interface:

• 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
• Button: Reset

Power Supply:

• 802.3at PoE
• 12V DC (Power Adapter included)
  • EU Version: 12 V / 1.0 A DC
  • US Version: 12 V / 1.5 A DC
• 48V Passive PoE

Power Consumption:

• EU: 13.5 W
• US: 14.7 W

Dimensions (W x D x H): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)

Antenna Type: Internal Omni

• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi

Mounting: Ceiling / Wall Mounting (Kits included), Junction Box Mounting

Wireless Features:

Wireless Standards: IEEE 802.11ax/ac/n/g/b/a

Frequency: 2.4 GHz and 5 GHz

Signal Rate:

• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps

Wireless Functions:

• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming§
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security:

• Captive Portal Authentication§
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power:

• CE:
  • <20 dBm (2.4 GHz, EIRP)
  • <23 dBm (5 GHz, EIRP)
  • <30 dBm (5 GHz, EIRP)

Management:

Omada App: Yes

Centralized Management:

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access: Yes (Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c, v3

System Logging Local/Remote Syslog: Local/Remote Syslog

SSH: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Zero-Touch Provisioning: Yes (Requiring the use of Omada Cloud-Based Controller)

Others:

Certification: CE, FCC, RoHS

Package Contents:

• EAP650
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment:

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
