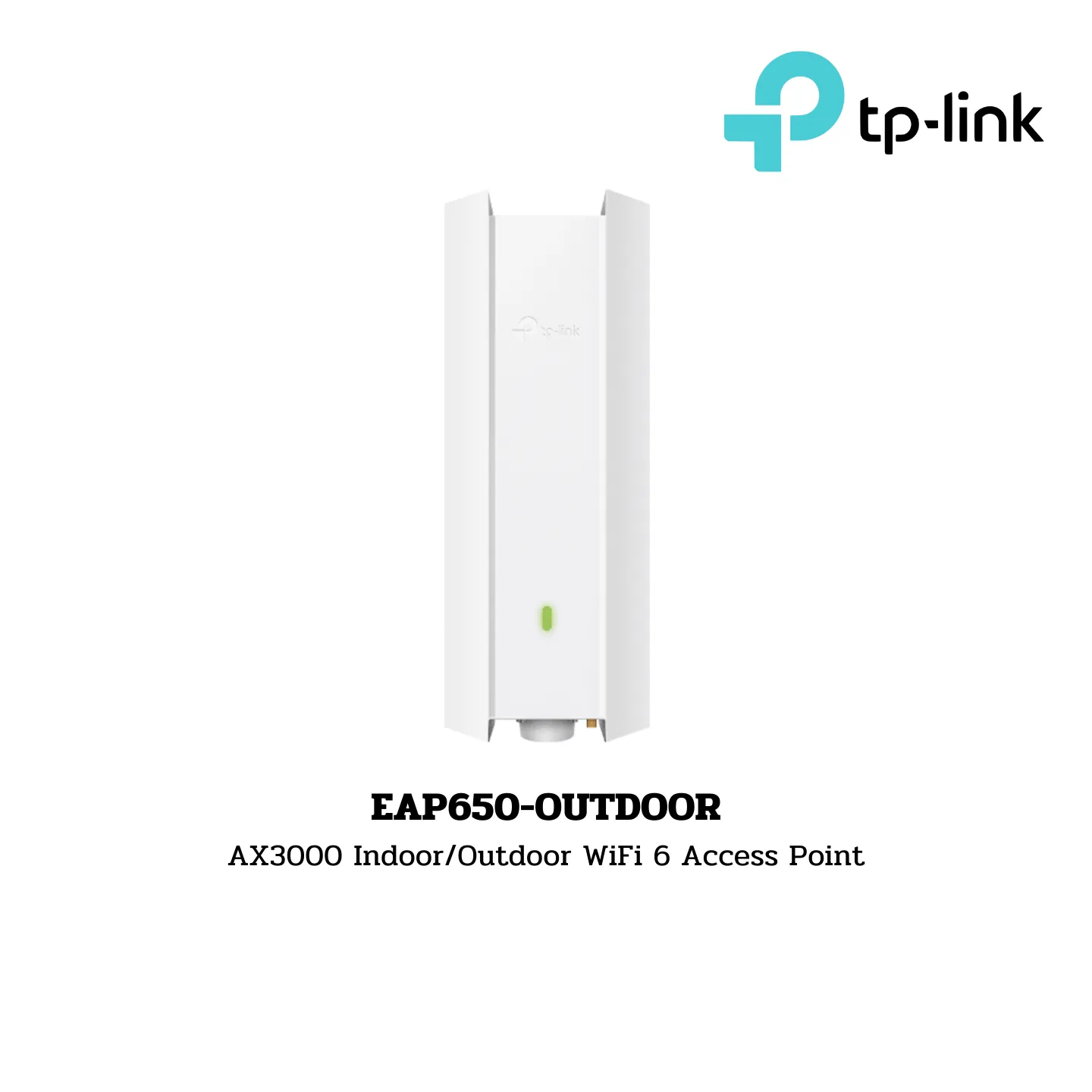

TP-Link Omada Access Points รุ่น EAP650-OUTDOOR

EAP650-OUTDOOR
AX3000 Indoor/Outdoor WiFi 6 Access Point

Brand:

• TP-Link

Port:

• 1× Gigabit RJ45 Port

Speed:

• 574 Mbps at 2.4 GHz + 2402 Mbps at 5 GHz

Feature:

• 802.3at PoE and Passive PoE
• IP67 Weatherproof
• 4× Internal Antennas
• Mesh
• Seamless Roaming
• MU-MIMO
• Band Steering
• Beamforming
• Load Balance
• Airtime Fairness
• Centralized Management by Omada SDN Controller
• Omada App

Hardware Features:

Interface:

• 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
• Button: Reset

Power Supply:

• 802.3at PoE
• 48V Passive PoE (PoE Adapter Included)

Power Consumption:

• EU: 12.5W (802.3at PoE or Passive PoE)
• US: 14.7W (802.3at PoE or Passive PoE)

Dimensions (W x D x H): 280.4×106.5×56.8 mm (without antenna & mounting kit)

Antenna:

• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi

Weatherproof Enclosure: IP67

Mounting: Pole/Wall Mounting (Kits included)

Wireless Features:

Wireless Client Capacity: 250+

Wireless Standards: IEEE 802.11ax/ac/n/g/b/a

Frequency: 2.4 GHz, 5 GHz

Signal Rate:

• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
• 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Transmit Power:

• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm (5 GHz, EIRP)
• FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz)

Wireless Functions:

• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• Omada Mesh
• Seamless Roaming
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security:

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Management:

Omada App: Yes

Centralized Management:

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access: Yes (Through Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller)

Email Alerts: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c

System Logging Local/Remote Syslog: Yes

SSH: Yes

Web-based Management: Yes

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Zero-Touch Provisioning: Yes (Requiring the use of Omada Cloud-Based Controller)

Others:

Certification: CE, FCC, RoHS

Package Contents:

• Access Point EAP650-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment:

• Operating Temperature: -30–70 ℃ (-22–158 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
