TP-Link Omada Access Points รุ่น EAP650-DESKTOP

EAP650-DESKTOP

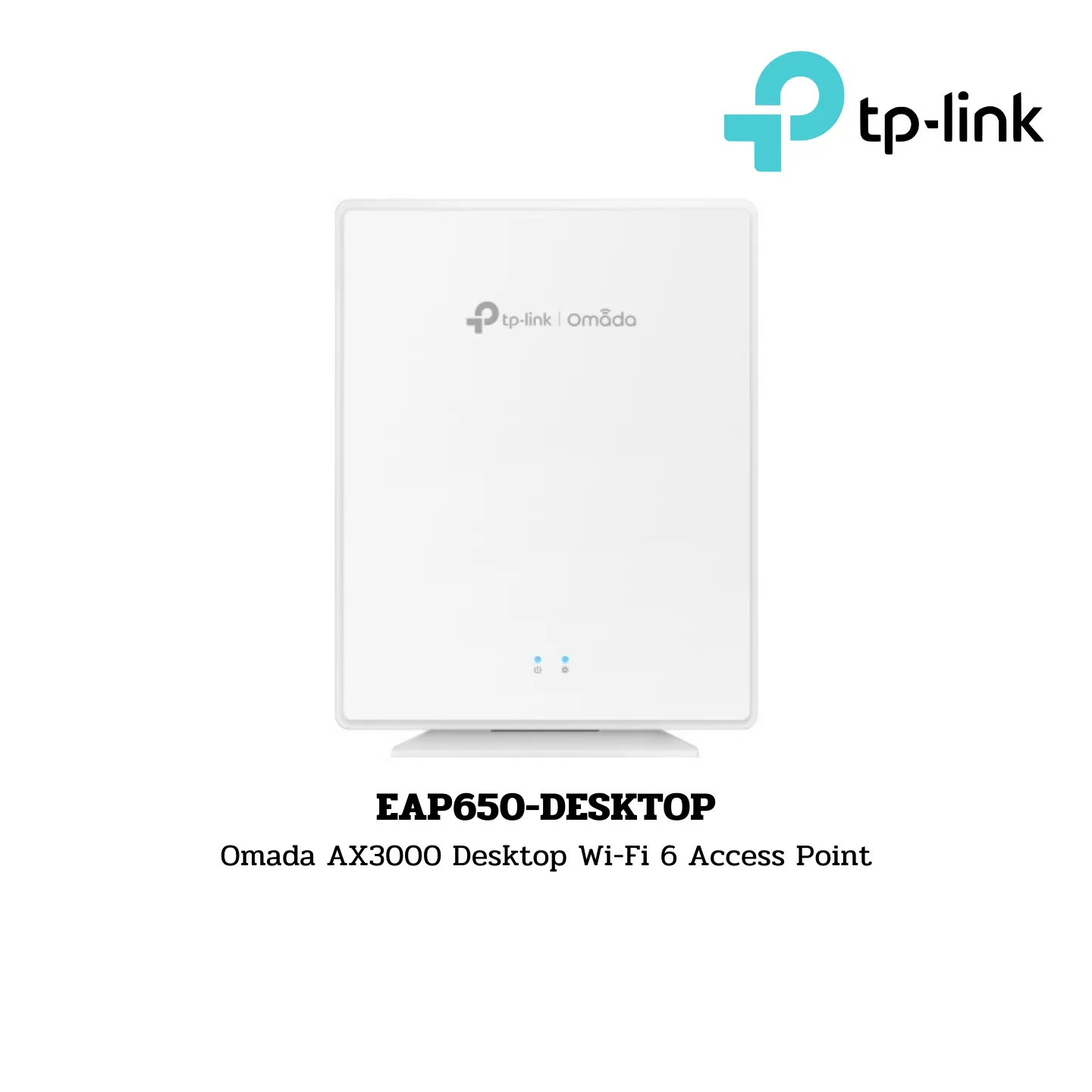

Omada AX3000 Desktop Wi-Fi 6 Access Point

Brand:

• TP-Link

Ports:

• 4× 1G RJ45 Ports (One supports PoE Out at 802.3at/bt input)
• 1× RJ11 Port

Speed:

• 574 Mbps at 2.4 GHz + 2402 Mbps at 5 GHz

Feature:

• 802.3bt PoE++ and 12V DC
• 4× Internal Antennas
• MU-MIMO
• 160MHz Supported
• Seamless Roaming
• Band Steering
• Beamforming
• Load Balance
• Airtime Fairness
• Centralized Management by Omada SDN Controller
• Omada App

Hardware Features:

Interface:

• 4× 1Gbps Ethernet Ports + 1× FXS Port
  • One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input
• Button: Reset, LED

Power Supply:

• 802.3 af/at/bt PoE or 12V/1.5A DC
• PoE Out requires 802.3at/bt PoE power supply

Power Consumption: 17.3W (PoE Out Off)

Weight: 452g (excluding mounting base)

Dimensions (W x D x H): 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)

Antenna Type: Internal Omni

• 2.4 GHz: 2× 5 dBi
• 5 GHz: 3× 4.7 dBi

Range: 140㎡ (1500 ft²)*

Mounting: Desktop / Wall mounting (Kits included)

Wireless Features:

Concurrent Clients: 250+*

Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax

Frequency: 2.4 GHz and 5 GHz

Signal Rate:

• 5 GHz: 2402 Mbps†
• 2.4 GHz: 574 Mbps

Wireless Functions:

• 2×2 (2.4G & 5G) MU-MIMO‡
• HE160 (160 MHz Bandwidth)‡
• OFDMA‡
• Seamless Roaming §
• Multiple SSIDs (16 SSIDs, 8 on each band)
• Enable/Disable SSID Broadcast
• Enable/Disable Wireless Radio
• Guest Network
• Automatic Channel Assignment
• Beamforming
• Rate Limit (Based on SSID/Client)
• Band Steering
• Load Balance
• Airtime Fairness
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• RADIUS Accounting
• MAC Authentication
• Reboot Schedule
• Wireless Schedule and Statistics
• Static IP/Dynamic IP

Wireless Security:

• Captive Portal Authentication§
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power:

• CE:
  • <20 dBm (2.4 GHz, EIRP)
  • <23 dBm (5 GHz, band1 & band2, EIRP)
  • <29 dBm (5 GHz, band3, EIRP)
• FCC:
  • <26 dBm (2.4 GHz)
  • <27 dBm (5 GHz)

Management:

Omada App: Yes

Centralized Management:

• Omada Hardware Controller
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access: Yes

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c, v3

System Logging Local/Remote Syslog: System Log

SSH: Yes

Web-based Management: Yes

Zero-Touch Provisioning: Yes (Requires the use of Omada Cloud-Based Controller)

Others:

Certification: CE, FCC, RoHS, IC

Package Contents:

• EAP650-Desktop
• Desktop/Wall Mounting Kit
• Installation Guide

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment:

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
