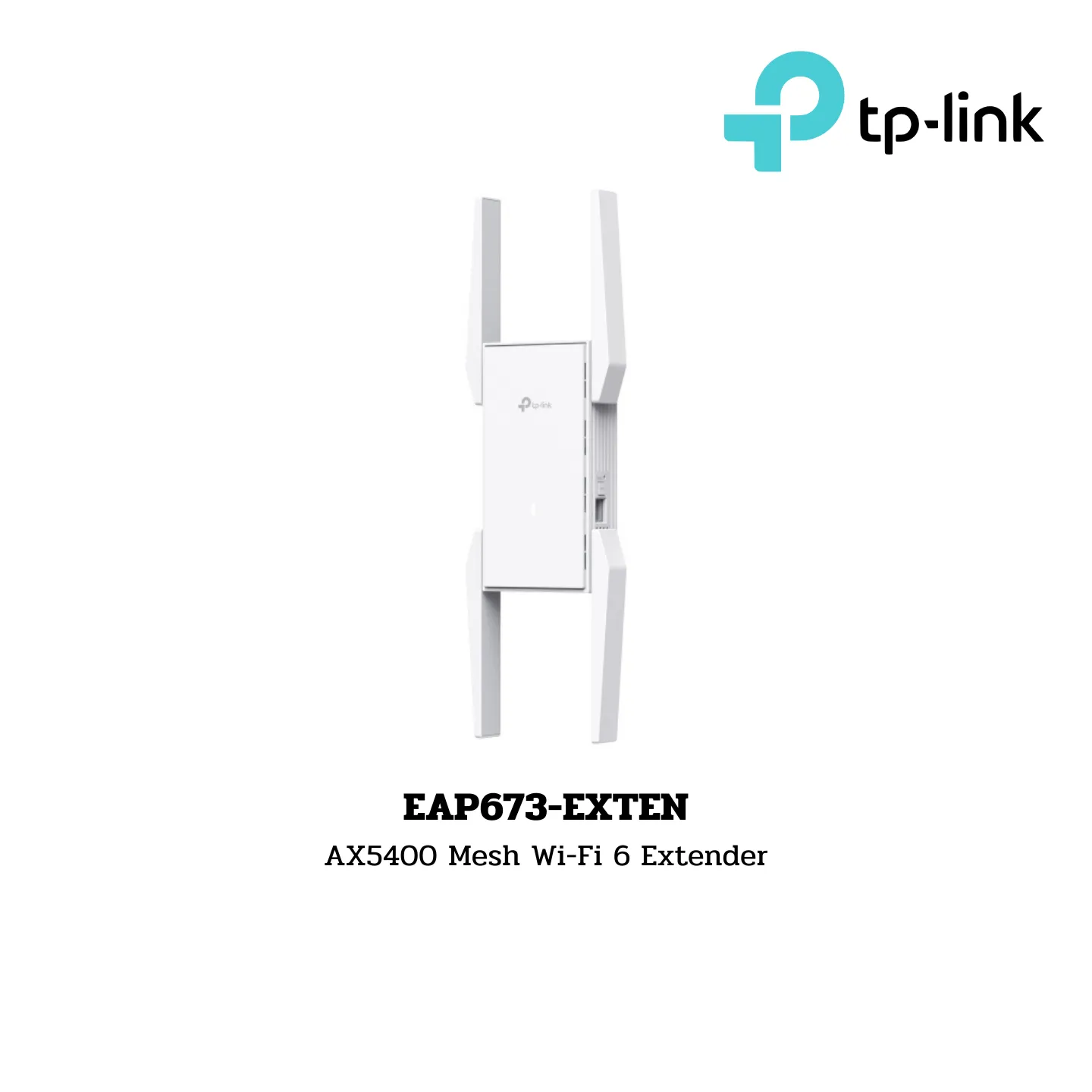

EAP673-EXTEN
AX5400 Mesh Wi-Fi 6 Extender
Brand:
- TP-Link
Port:
- 1× Gigabit RJ45 Port (Works as a downlink port in Extender mode, works as an uplink port in AP mode)
Speed:
- 574 Mbps at 2.4 GHz + 4804 Mbps at 5 GHz
Feature:
- Standard AC Power Plug and Powered with standard AC wall outlet
- 4× External Antennas
- Extender mode & AP mode
- MU-MIMO
- Band Steering
- Beamforming
- Load Balance
- Centralized Management by Omada SDN Controller
- Omada App
Hardware Features:
Interface:
- 1× Gigabit Ethernet Port
- Physical Security Lock: No
- Button: Reset, LED
Power Supply: 100-240 V ~ 50/60 Hz
Power Consumption: 18 W
Dimensions: 6.3 × 3.1 × 1.5 in (160 × 80 × 37.8 mm)
Antenna: 4× External Antennas
- 2.4 GHz: 2× 3 dBi
- 5 GHz: 4× 5 dBi
Mounting: Plug in
Wireless Features:
Coverage: 140 ㎡ (1500 ft²)
Concurrent Clients: 250+**
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
- 5 GHz: Up to 4804 Mbps
- 2.4 GHz: Up to 574 Mbps
Wireless Functions:
- 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS (WMM)
- Seamless Roaming§
- Beamforming
- Rate Limit
- Load Balance
- Airtime Fairness
- Band Steering
- Reboot Schedule
- Wireless Schedule
- RADIUS Accounting
- MAC Authentication
- Wireless Statistics
- Static IP/Dynamic IP
Wireless Security:
- Captive Portal Authentication§
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power:
- CE:
- <20 dBm (2.4 GHz, EIRP)
- <23 dBm (5 GHz, Band1 & Band2, EIRP)
- <30 dBm (5 GHz, Band3, EIRP)
- FCC:
- <25 dBm (2.4 GHz)
- <28 dBm (5 GHz)
Management:
Omada App: Yes
Centralized Management:
- Omada Hardware Controller
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access: Yes (Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Yes
SSH: Yes
Web-based Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes (Requiring the use of Omada Cloud-Based Controller)
Others:
Certification: CE, FCC, IC, RoHS, UL
Package Contents:
- AX5400 Mesh Wi-Fi 6 Extender EAP673-Extender
- Installation Guide
Environment:
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
